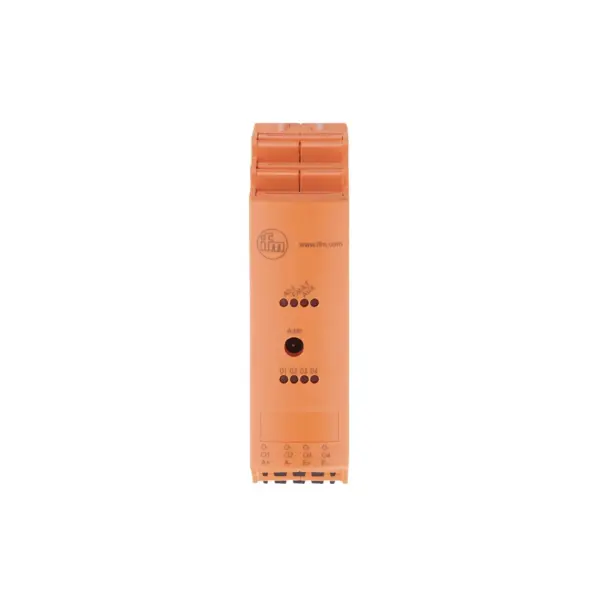

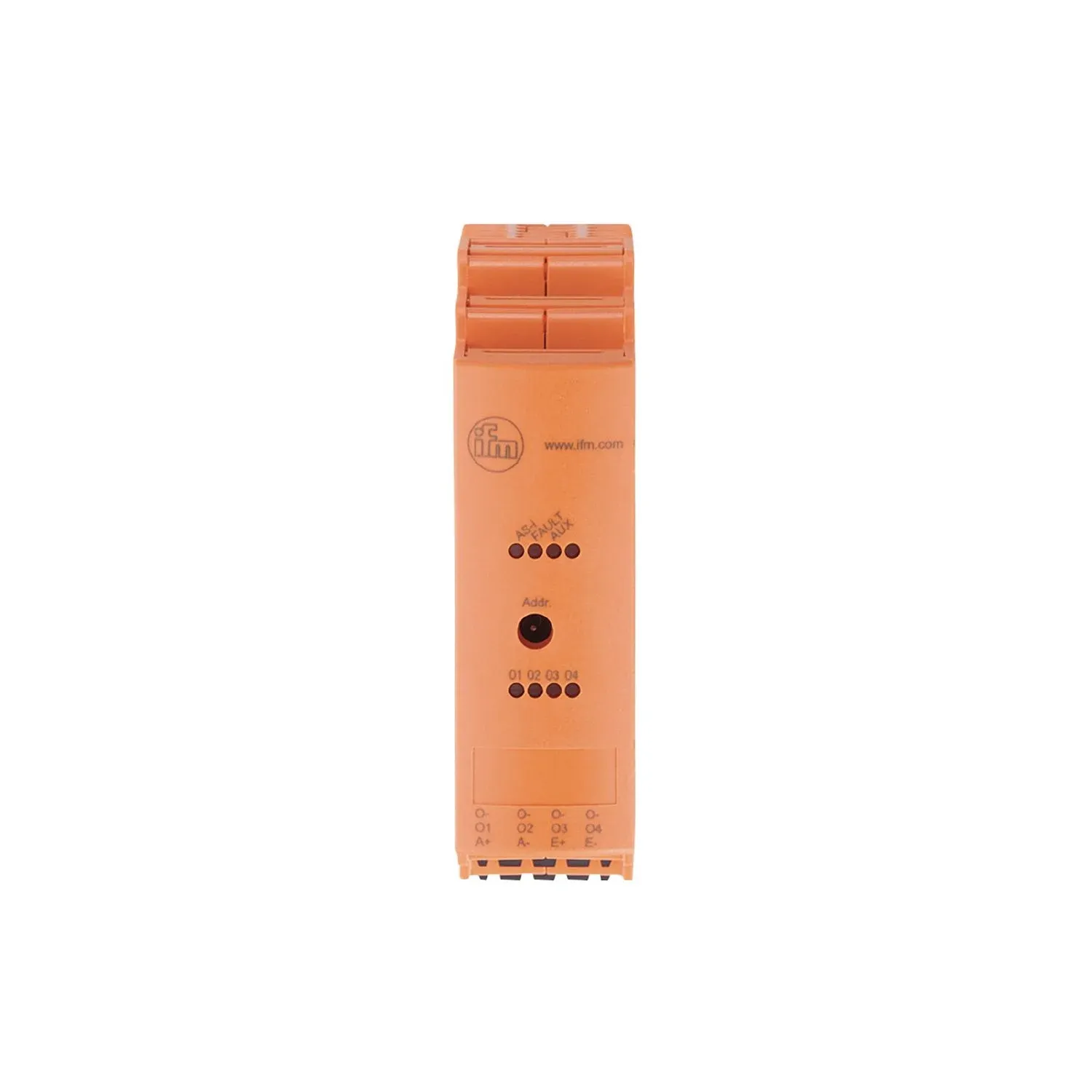

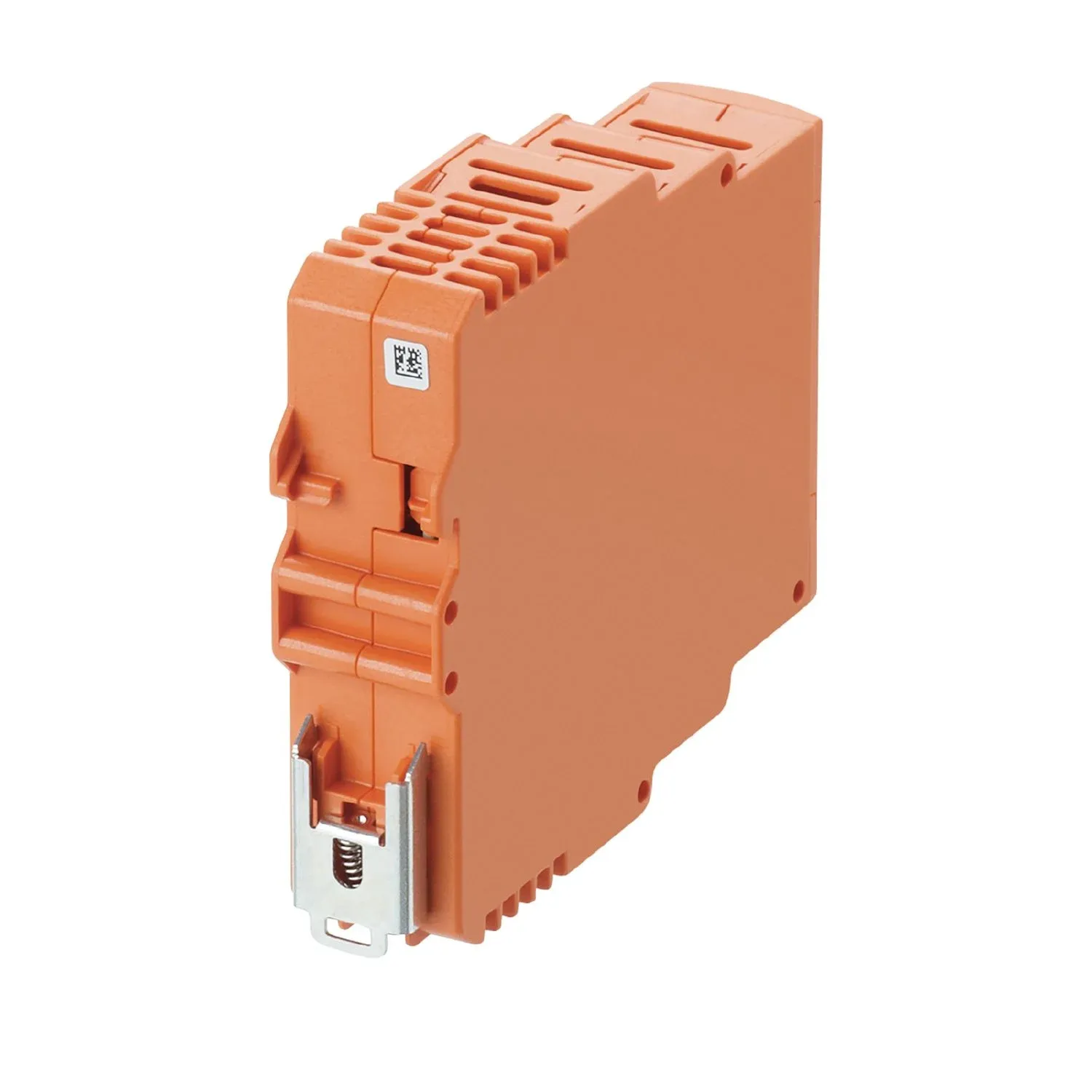

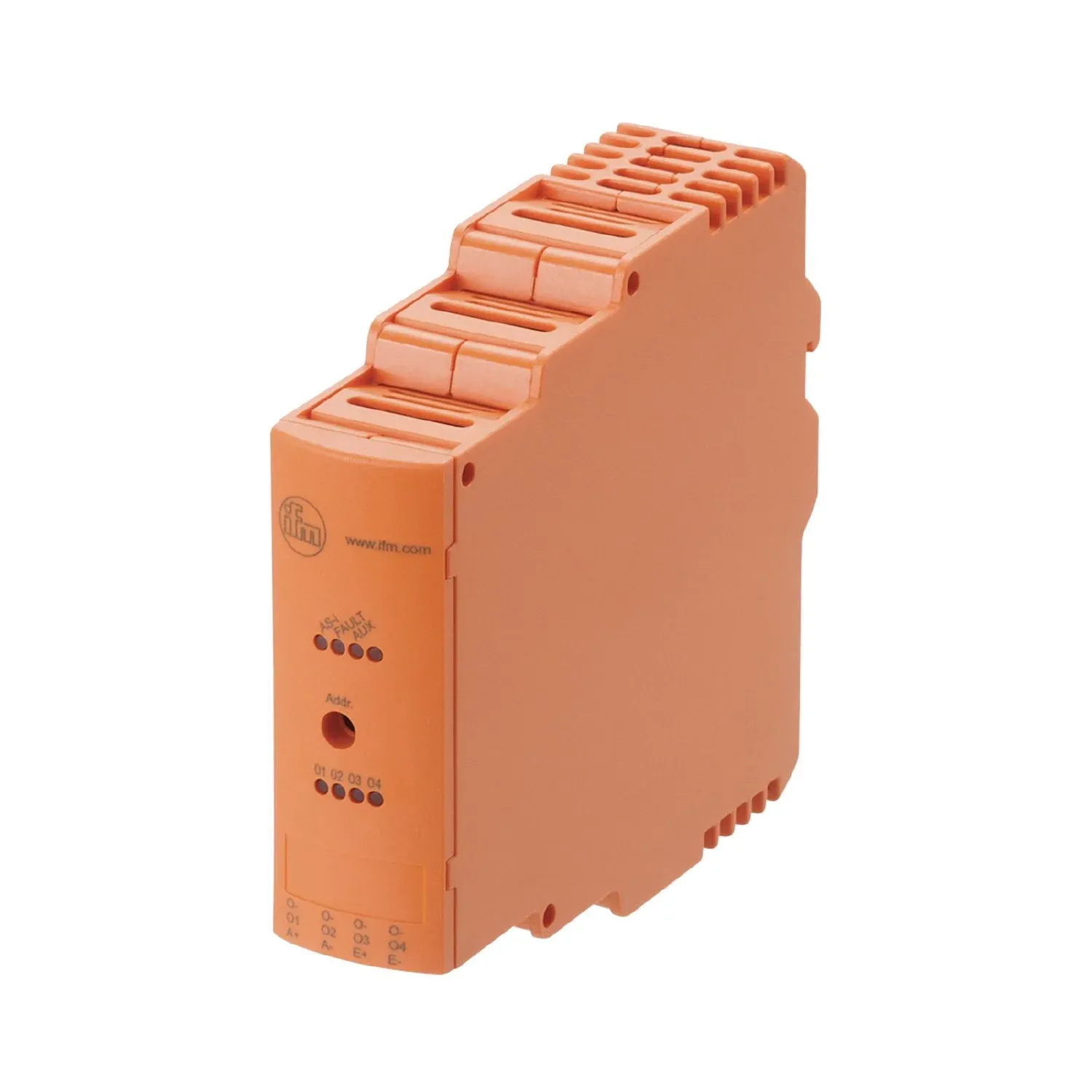

IFM AC2252
AC2252
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For use in control cabinets
Simple and fast wiring by means of cage clamps
Particularly space-saving design
Double terminals for looping through the voltage supply
Clearly visible powerful LEDs for displaying operation, switching status and function
Specification
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | Installation in control cabinets |
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 50 |
| Additional voltage supply[V] [V] | 20...30 DC; (AUX) |
| Max. current consumption from additional supply[mA] [mA] | 4000; (AUX) |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 4 |
|---|
Outputs
| Number of digital outputs | 4 |
|---|---|
| Circuit | PNP |
| Voltage range DC[V] [V] | 20...30; (AUX) |
| Max. current load per output[mA] [mA] | 1000; (utilisation category DC-12: 700 mA; utilisation category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1)) |
| Max. current load outputs total[A] [A] | 4 |
| Short-circuit proof | yes |
| Electrically separated | yes |
| Actuator supply outputs | AUX |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 20 |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN 61000-6-2 EN 62026-2 EN 50581 |
|---|---|
| MTTF[years] [years] | 254 |
| Notes | The device shall be supplied from an isolating source.; This voltage source must have a secondary UL-listed fuse (see enclosed sheet).; Alternatively, a class 2 power supply can be used to supply AUX. |
AS-i classification
| AS-i version | 2.11; 3.0 |
|---|---|
| AS-i addressing | addressing socket |
| Extended addressing mode | no |
| AS-i master profile | M2; M3; M4 |
| AS-i profile | S-8.0.E |
| AS-i I/O configuration[hex] [hex] | 8 |
| AS-i ID code[hex] [hex] | 0.E |
| AS-i certificate | 37302 |
| Assignment of the data bits | data bit D0 D1 D2 D3 Output O-1 O-2 O-3 O-4 |
| data bit | D0 |
| Output | O-1 |
Mechanical data
| Weight[g] [g] | 126 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 93 x 25.4 x 108 |
| Materials | PC-GF20 |
Displays / operating elements
| Display | switching status LED, yellow O1...O4 operation LED, green AS-i, AUX errors LED, red |
|---|---|
| switching status | LED, yellow O1...O4 |
| operation | LED, green AS-i, AUX |
| errors | LED, red |
Accessories
| Accessories (optional) | connectors |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
