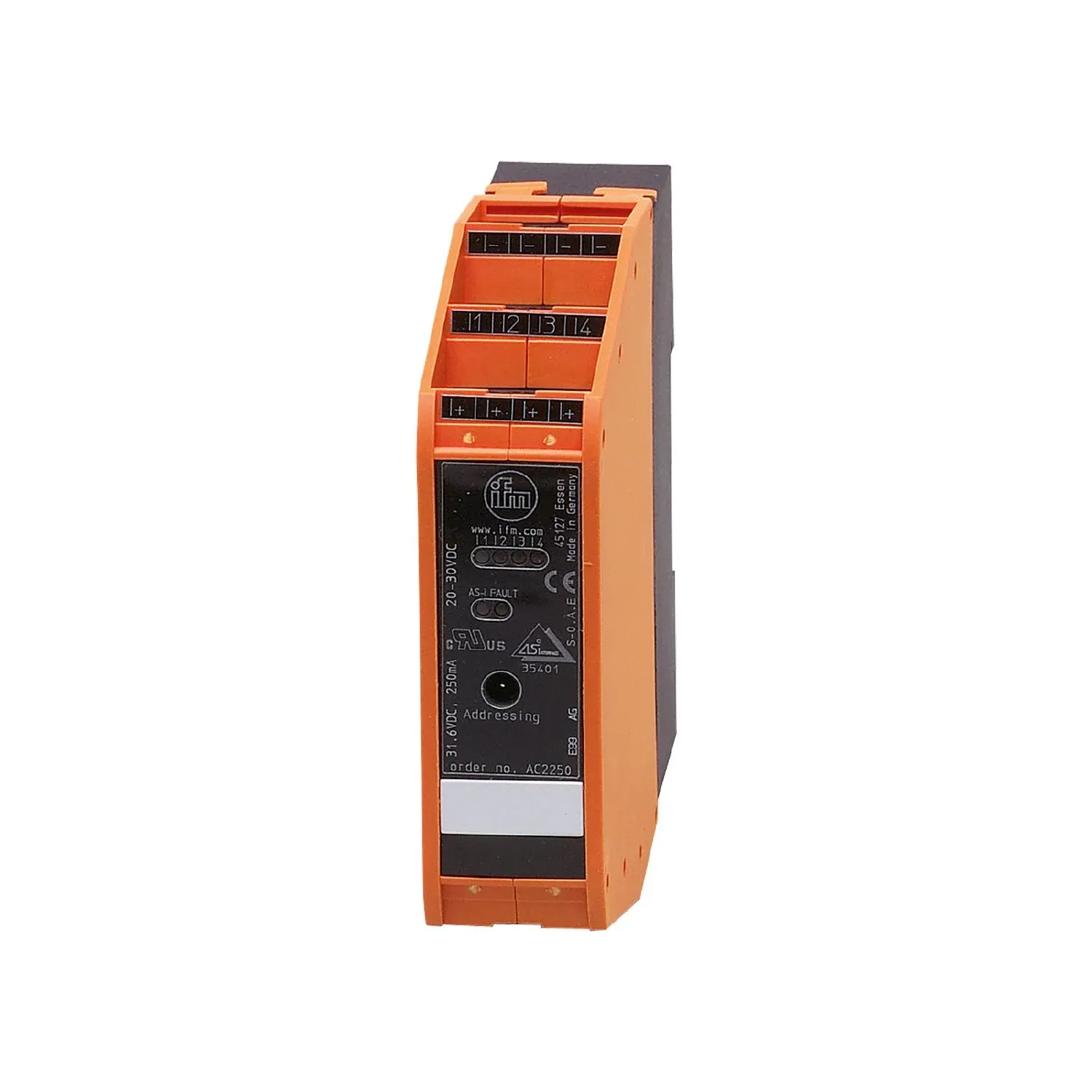

IFM AC2218
AC2218
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For use in control cabinets
Simple and fast wiring by means of cage clamps
Particularly space-saving design
Double terminals for looping through the voltage supply
Clearly visible powerful LEDs for displaying operation, switching status and function
Specification
Application
| Application | Installation in control cabinets |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption[mA] [mA] | 12...57; (external supply) |
| Max. current consumption from AS-i[mA] [mA] | 57; (with external supply: 25 mA) |
| Reverse polarity protection | yes |
| Max. current load total[A] [A] | 0.5; (with external supply; with external supply: 100 mA) |
| Additional voltage supply[V] [V] | 24 DC; (to PELV) |
| Additional voltage supply | optional |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 4 |
|---|
Outputs
| Number of analogue outputs | 4; (Anschluss von 2-Draht-Aktuatoren oder 4-Draht-Aktuatoren mit separater 24 V-Versorgung) |
|---|---|
| Analogue current output[mA] [mA] | 0...20 |
| Max. load[Ω] [Ω] | 600 |
| Overload protection | yes |
| Resolution of analogue output | 16 (1 bit = 1 µA) |
| Actuator supply outputs | AS-i / AUX |
Operating conditions
| Ambient temperature[°C] [°C] | 0...70 |
|---|---|
| Storage temperature[°C] [°C] | -20...85 |
| Protection | IP 20 |
Tests / approvals
| EMC | EN 50295 |
|---|---|
| MTTF[years] [years] | 140 |
AS-i classification
| AS-i addressing | addressing socket |
|---|---|
| AS-i master profile | M3; M4 |
| AS-i profile | S-7.3.6 |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | 3.6 |
| Assignment of the parameter bits | parameter bit Designation P0 not used / 1 reserved / 0 reserved P1 not used / 1 reserved / 0 reserved P2 peripheral fault indication : 1 activated / 0 deactivated P3 not used / 1 reserved / 0 reserved |
| parameter bit | Designation |
| P0 | not used |
| P1 | not used |
| P2 | peripheral fault indication |
| P3 | not used |
Mechanical data
| Weight[g] [g] | 175 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 114 x 25 x 105 |
| Materials | PA 6.6 |
Displays / operating elements
| Display | operation LED, green Voltage AS-i / 24 V AUX errors LED, red function LED, yellow channels 1...4 |
|---|---|
| operation | LED, green Voltage AS-i / 24 V AUX |
| errors | LED, red |
| function | LED, yellow channels 1...4 |
Remarks
| Pack quantity | 1 pcs. |
|---|
