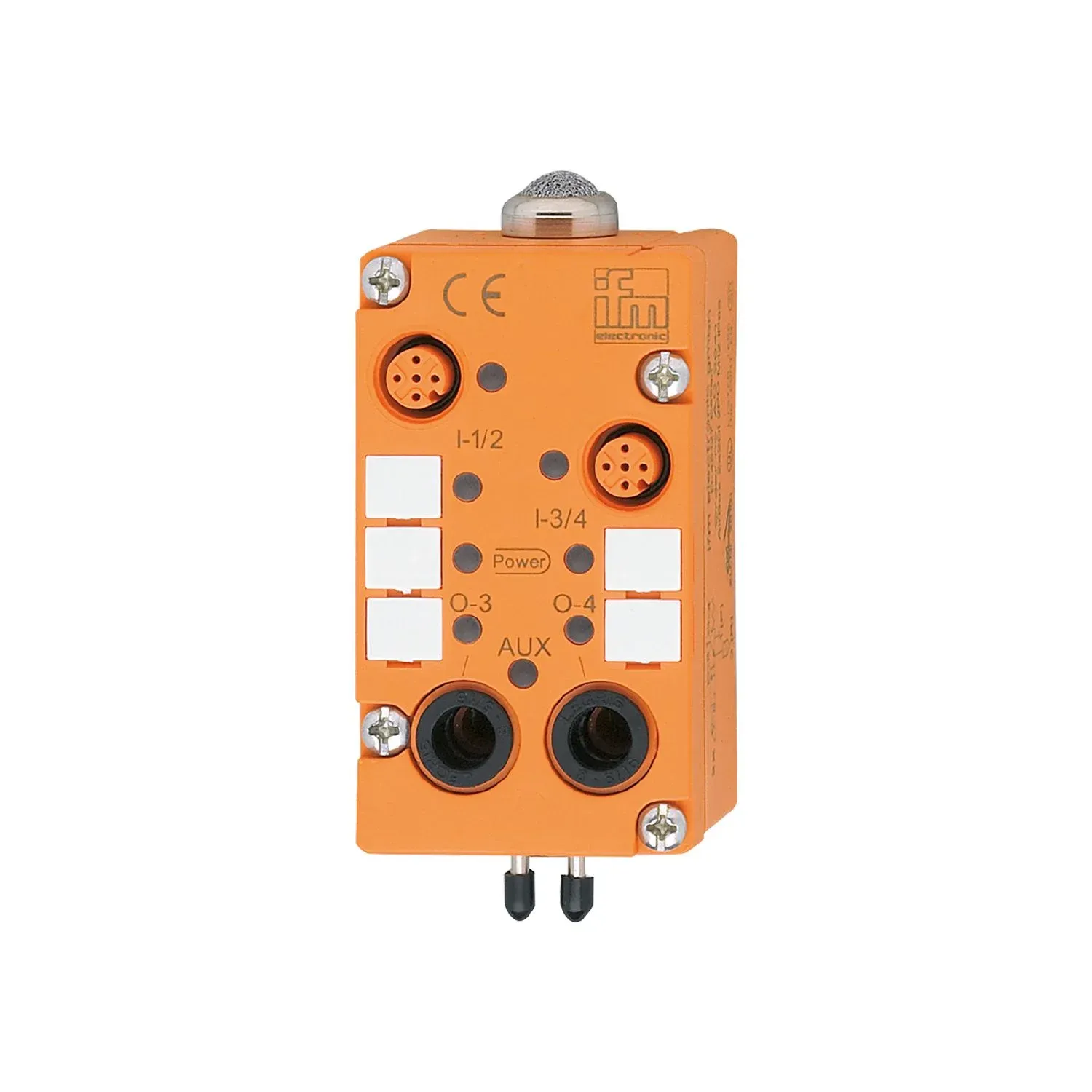

IFM AC2041
AC2041
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the decentralised triggering of cylinders and valve actuators
Combination of AS-i I/O module and solenoid valve
High energy efficiency due to decentralised application near the actuator
Reduced installation and wiring complexity
Easy mounting and wiring on module lower part
Specification
Application
| Application | field installation |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 170 |
| Additional voltage supply[V] [V] | 18...30 DC; (to PELV) |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 4; Number of pneumatic outputs: 2 |
|---|
Inputs
| Number of digital inputs | 4; (2 x 2) |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AS-i |
| Power supply[V] [V] | 20...30 |
| Max. total current rating of inputs[mA] [mA] | 100 |
| Input current High[mA] [mA] | > 3 |
| Input current Low[mA] [mA] | < 1.5 |
| Switching level high[V] [V] | > 10 |
| Digital inputs protected against short circuits | yes |
Outputs
| Number of pneumatic outputs | 2 |
|---|---|
| Actuator supply outputs | AUX |
Operating conditions
| Ambient temperature[°C] [°C] | 0...55 |
|---|---|
| Note on ambient temperature | with special compressed air treatment: < 0 °C |
| Protection | IP 65 |
Tests / approvals
| EMC | EN 50295 |
|---|
AS-i classification
| Extended addressing mode | no |
|---|---|
| AS-i master profile | M2; M3; M4 |
| AS-i profile | S-7.F |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | F |
| Assignment of the data bits | data bit D0 D1 D2 D3 Inputs / outputs I-1/2 I-1/2 I-3/4 / O3 I-3/4 / O4 pin 4 2 4 2 |
| data bit | D0 |
| Inputs / outputs | I-1/2 |
| pin | 4 |
Mechanical data
| Weight[g] [g] | 260 |
|---|---|
| Housing | rectangular |
| Type of mounting | screw mounting |
| Dimensions[mm] [mm] | 97 x 45 x 46 |
| Materials | PBT |
| Pneumatic system | 2 x 3/2-way seat valves |
| Operating pressure range | 2...8 bar 0.2...0.8 MPa |
| 2...8 bar | 0.2...0.8 MPa |
| Note on working pressure range | incl. possible pressure peaks |
| Air flow at 6/5 bar[l/min] [l/min] | 350 |
| Air flow at 6/0 bar[l/min] [l/min] | 550 |
| Permissible compressed air | filtered (5 µm); lubricated (ISO-VG10) or not lubricated |
| Tube fittings | Legris LF 3000/8 |
| Exhaust | integrated exhaust |
Displays / operating elements
| Display | operation LED, green function LED, yellow |
|---|---|
| operation | LED, green |
| function | LED, yellow |
Electrical connection
| Module connection | Flat cables |
|---|
Remarks
| Remarks | Please see the notes on compressed air and EMC/ESD under "Downloads" |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | M12; coding: A |
|---|
