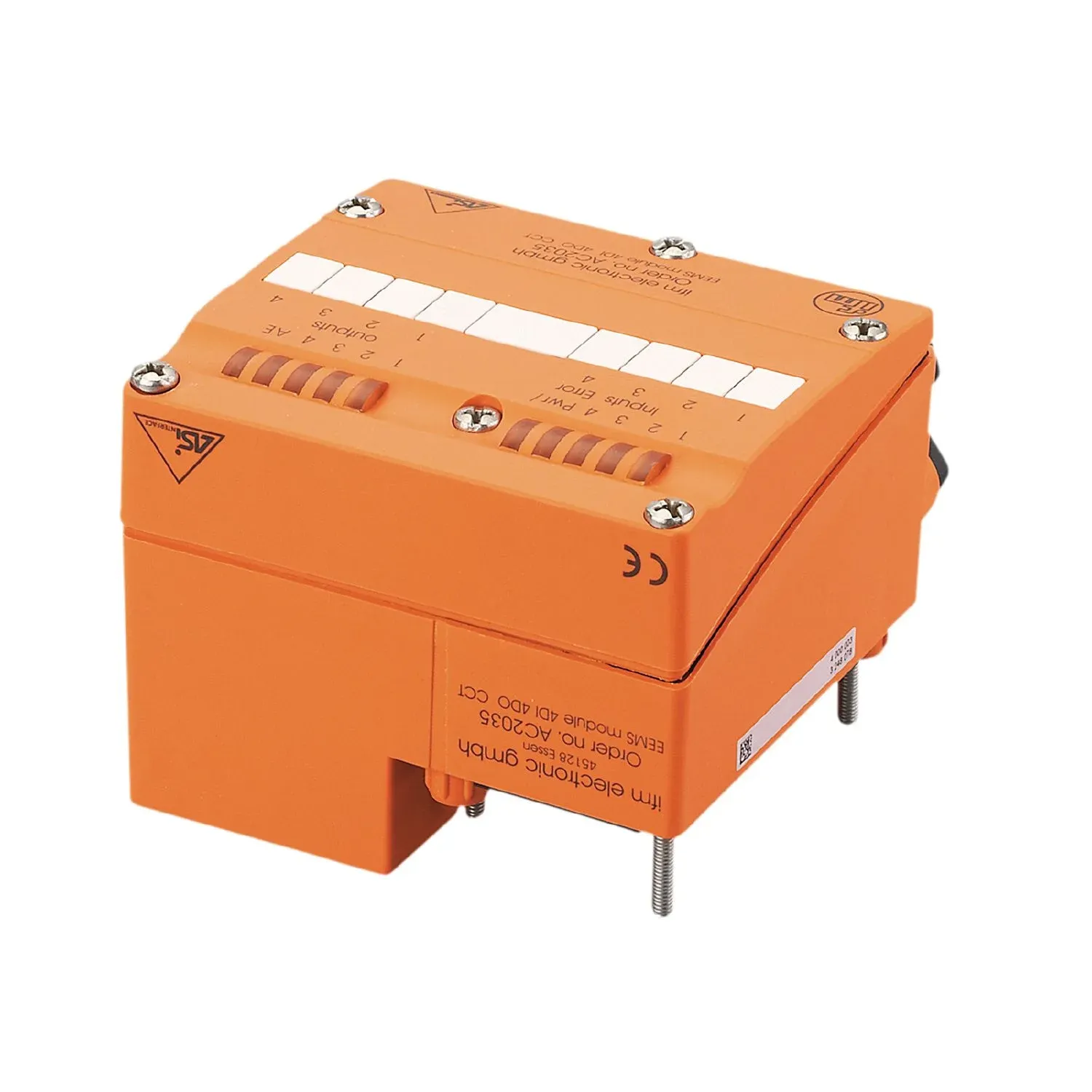

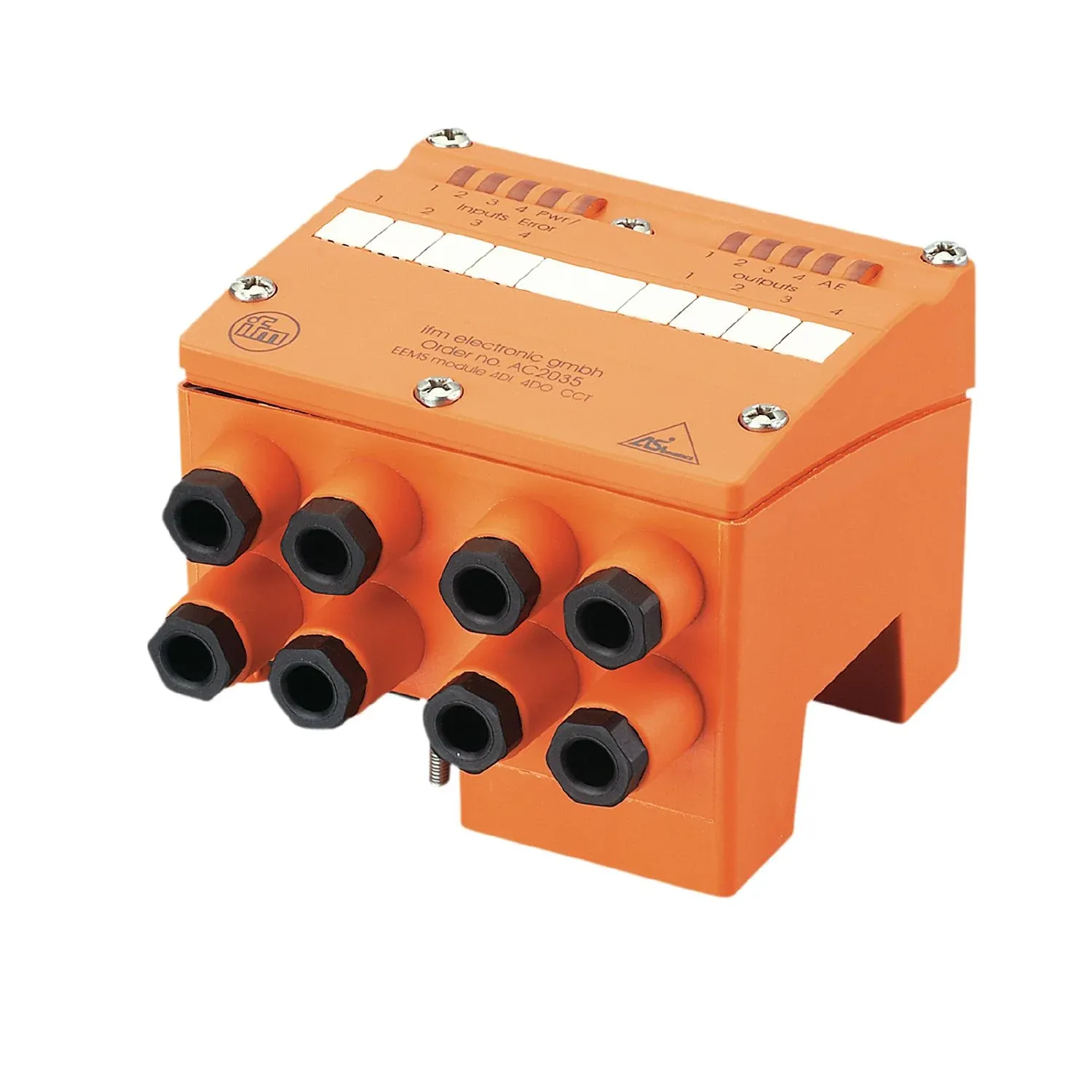

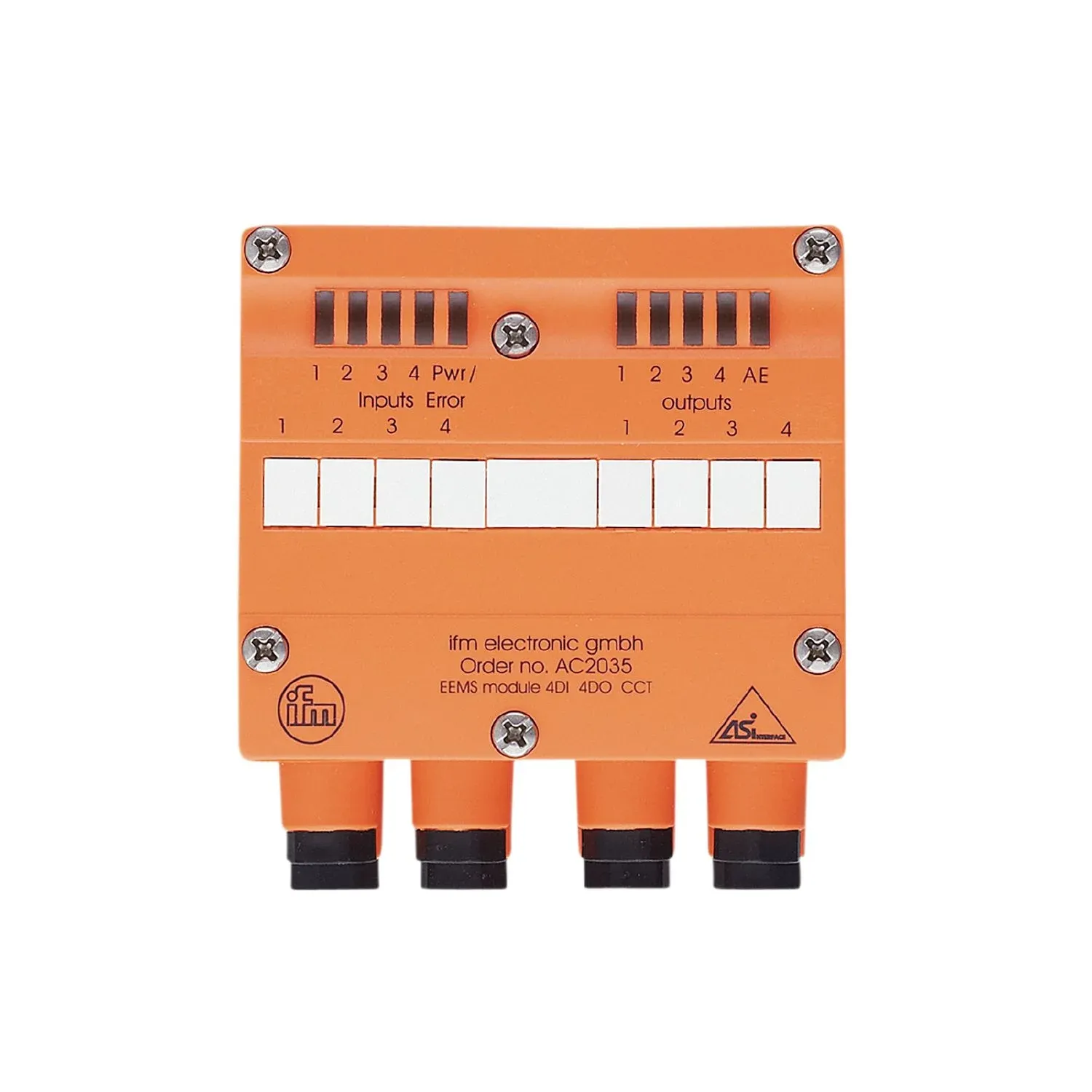

IFM AC2035
AC2035
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy to mount and wire
For the connection of sensors and actuators with cable entry
Device connection with cage clamps
Clearly visible powerful LEDs for displaying operation, switching status and error
Specification
Application
| Application | field installation |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 230 |
| Max. current load total[A] [A] | 4 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 4; Number of digital outputs: 4 |
|---|
Inputs
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AS-i |
| Power supply[V] [V] | 20...30 |
| Max. total current rating of inputs[mA] [mA] | 200 |
| Input current High[mA] [mA] | > 5 |
| Input current Low[mA] [mA] | < 3 |
| Switching level high[V] [V] | > 10 |
| Digital inputs protected against short circuits | yes |
Outputs
| Number of digital outputs | 4 |
|---|---|
| Circuit | PNP |
| Voltage range DC[V] [V] | 24; (to PELV) |
| Max. current load per output[mA] [mA] | 1000; (DC-12 / DC-13) |
| Short-circuit proof | yes |
| Electrically separated | yes |
| Actuator supply outputs | AUX |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC | EN 50295 |
|---|
AS-i classification
| AS-i master profile | M2; M3; M4 |
|---|---|
| AS-i profile | S-7.F.F |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | F.F |
| Assignment of the data bits | data bit D0 D1 D2 D3 bidirectional I-1 / O-1 I-2 / O-2 I-3 / O-3 I-4 / O-4 |
| data bit | D0 |
| bidirectional | I-1 / O-1 |
| Assignment of the parameter bits | parameter bit function P0 watchdog for all outputs : activated * / deactivated P1 not used P2 not used P3 not used |
| parameter bit | function |
| P0 | watchdog for all outputs |
| P1 | not used |
| P2 | not used |
| P3 | not used |
Mechanical data
| Weight[g] [g] | 317 |
|---|---|
| Housing | rectangular |
| Type of mounting | AS-i interface to FC-E or SC lower parts |
| Dimensions[mm] [mm] | 102 x 91 x 71 |
| Materials | PA 6-GF30; stainless steel (303/1.4305) |
Displays / operating elements
| Display | operation LED, green function LED, yellow |
|---|---|
| operation | LED, green |
| function | LED, yellow |
Electrical connection
| Module connection | Flat cables |
|---|
Remarks
| Remarks | Inputs and outputs must be electrically isolated. |
|---|---|
| Pack quantity | 1 pcs. |
