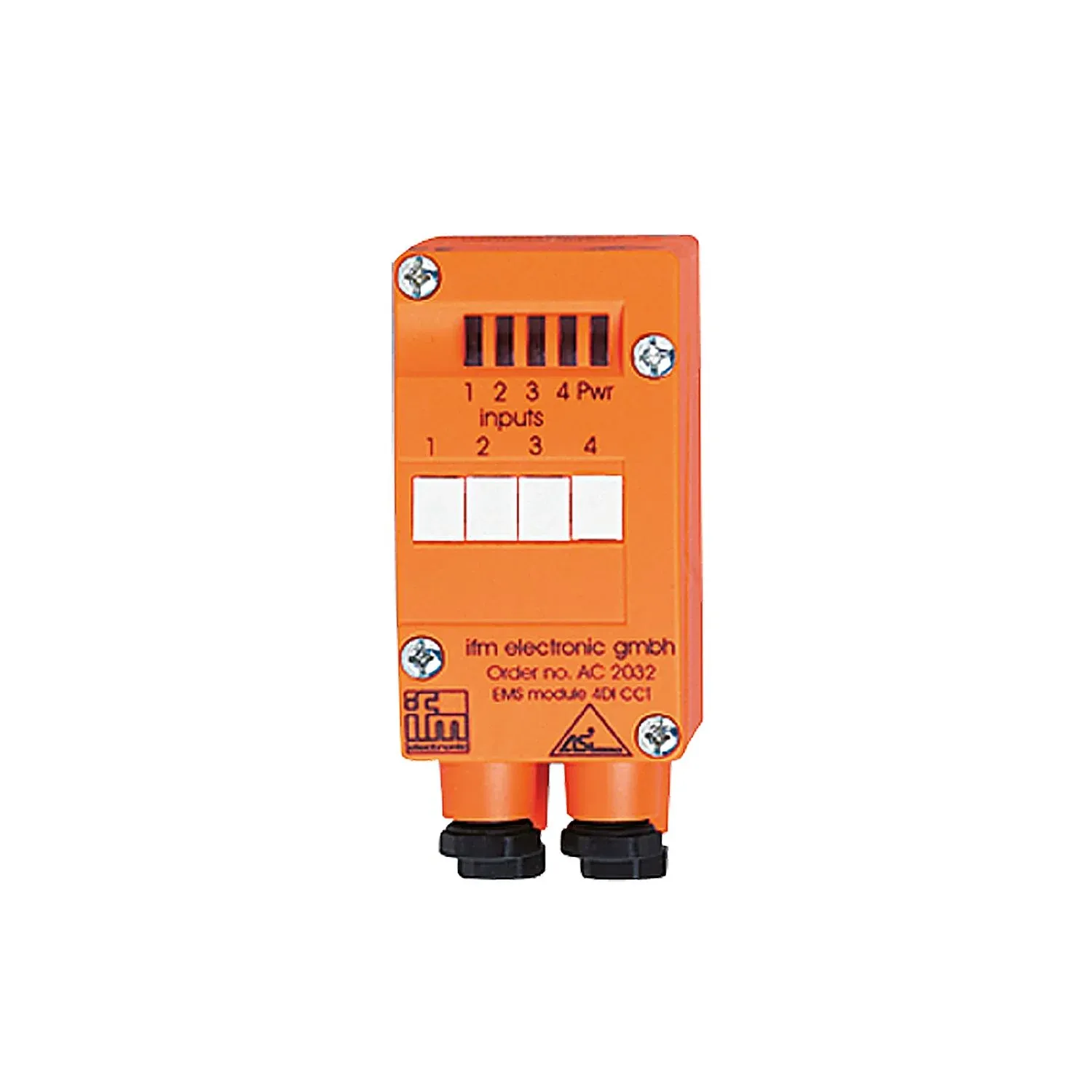

IFM AC2032
AC2032
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy to mount and wire
For the connection of sensors and actuators with cable entry
Device connection with cage clamps
Clearly visible powerful LEDs for displaying operation, switching status and error
Specification
Application
| Application | field installation |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 200 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 4 |
|---|
Inputs
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AS-i |
| Power supply[V] [V] | 20...30 |
| Max. total current rating of inputs[mA] [mA] | 160 |
| Input current High[mA] [mA] | > 5 |
| Input current Low[mA] [mA] | < 3 |
| Switching level high[V] [V] | > 10 |
| Digital inputs protected against short circuits | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC | EN 50295 |
|---|
AS-i classification
| AS-i master profile | M2; M3; M4 |
|---|---|
| AS-i profile | S-0.0.F |
| AS-i ID code[hex] [hex] | 0.F |
| Assignment of the data bits | data bit D0 D1 D2 D3 assignment I-1 I-2 I-3 I-4 |
| data bit | D0 |
| assignment | I-1 |
Mechanical data
| Weight[g] [g] | 182 |
|---|---|
| Housing | rectangular |
| Type of mounting | AS-i interface to FC and SC lower parts |
| Dimensions[mm] [mm] | 102 x 45 x 50 |
| Materials | PA 6-GF30; stainless steel (303/1.4305) |
Displays / operating elements
| Display | operation LED, green errors LED, red function LED, yellow |
|---|---|
| operation | LED, green |
| errors | LED, red |
| function | LED, yellow |
Electrical connection
| Module connection | Flat cables |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
