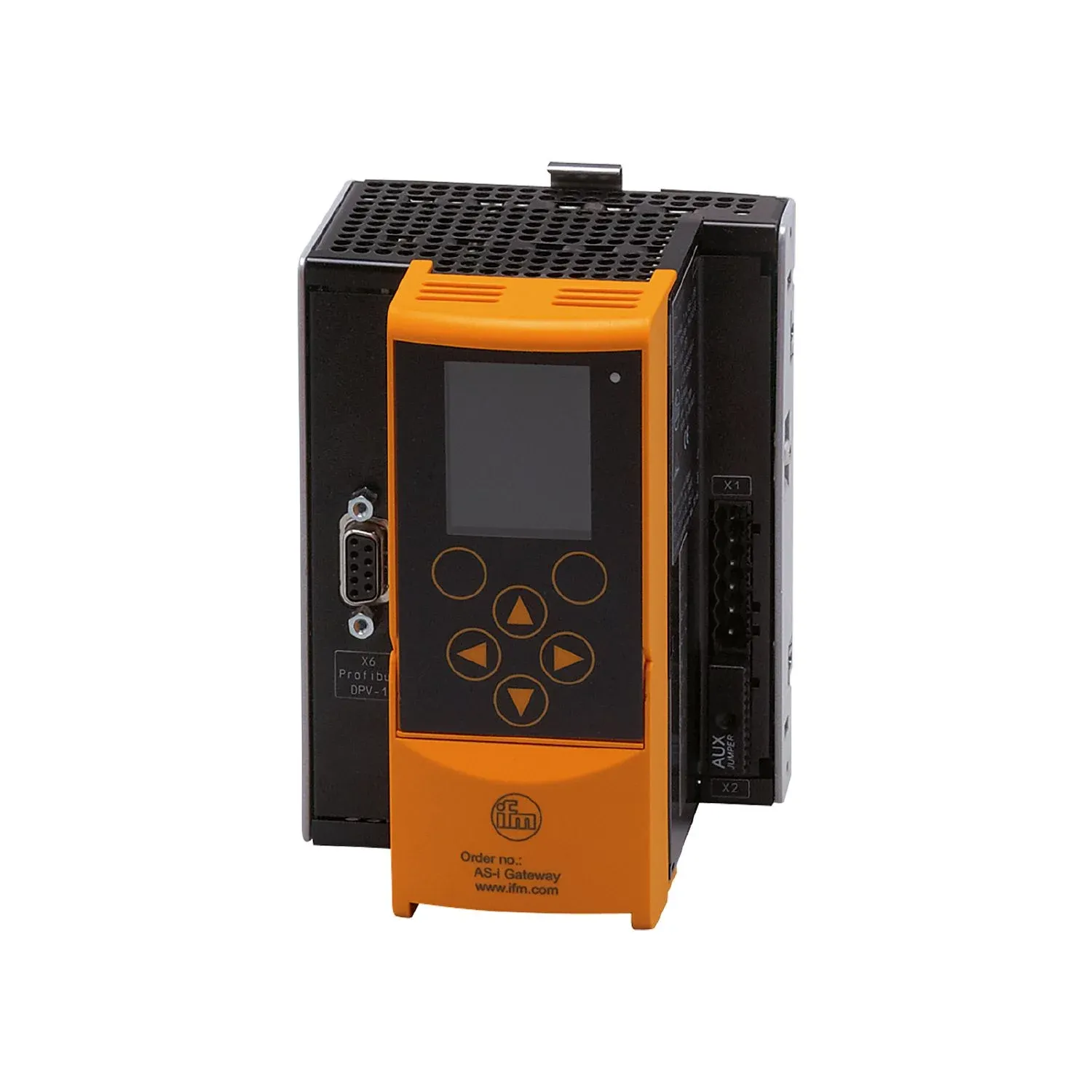

IFM AC1411
AC1411
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
With integrated fieldbus interface
Reliable and fast data exchange with the sensor actuator level
Colour display for indicating the status of all AS-i slaves
User-friendly and simple configuration, set-up and diagnosis
Quick-setup menu with intuitive operation
Specification
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | PROFIBUS gateway |
Electrical data
| Operating voltage[V] [V] | 18...32 DC; (AUX; AS-i: 21...31,6 V DC) |
|---|---|
| Current consumption[mA] [mA] | < 500; (AUX / AS-i 1) |
| Max. current consumption from AS-i[mA] [mA] | 500; (with external supply: 10 mA) |
| Number of AS-i masters | 1 |
| Electrical separation | yes |
Outputs
| Voltage range DC[V] [V] | to PELV |
|---|
Interfaces
| Communication interface | Ethernet; PROFIBUS |
|---|---|
| Transmission rate | 12 MBaud |
| Connector type | RJ45 |
| Protocol | Profibus DP |
| Usage type | data transmission |
| Transmission standard | EN 50170 |
| Version | DPV0; DPV1 |
Operating conditions
| Ambient temperature[°C] [°C] | 0...60 |
|---|---|
| Storage temperature[°C] [°C] | -20...70 |
| Protection | IP 20 |
Tests / approvals
| MTTF[years] [years] | 45 |
|---|
AS-i classification
| AS-i version | 3.0 |
|---|---|
| AS-i master profile | M4 |
| AS-i certificate | 97302 |
Mechanical data
| Weight[g] [g] | 715 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 135.5 x 93 x 106.2 |
| Materials | aluminium powder-coated; steel sheet galvanised; PC |
Displays / operating elements
| Display | function 1 x LED, red/green full graphic LCD display |
|---|---|
| function | 1 x LED, red/green |
Accessories
| Items supplied | terminals |
|---|---|
| Accessories (optional) | licence: "CODESYS V3", E71400 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| terminals | ...2.5 mm² |
|---|
