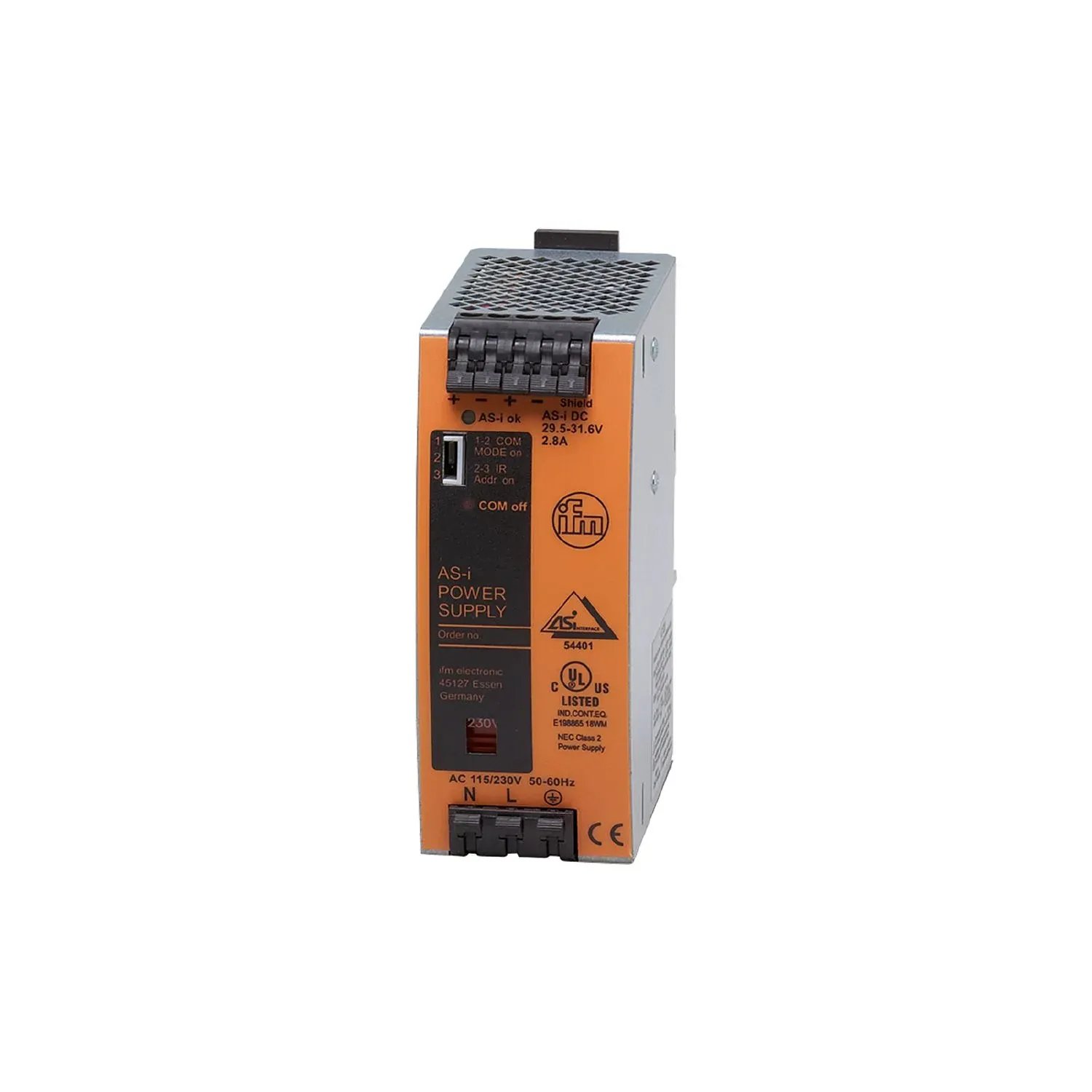

IFM AC1226
AC1226
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliably power supply for modules, sensors and actuators
High noise immunity and sufficient power reserves for the compensation of current peaks
Safe decoupling of interferences from the primary supply
Particularly space-saving design
Low heating of the control cabinet due to high efficiency
Specification
Application
| Design | housing for DIN rail mounting |
|---|
Electrical data
| Nominal voltage AC[V] [V] | 110 / 230 |
|---|---|
| Nominal frequency AC[Hz] [Hz] | 47...63 |
| Input voltage range AC[V] [V] | 85...132 / 184...264 |
| Overvoltage protection | yes; (< 55 V) |
| Max. power-on delay time[ms] [ms] | 100 |
| Output voltage AS-i[V] [V] | 29.5...31.6; (to PELV; NEC Class II) |
| Output power (permanent)[W] [W] | 85 |
| Number of output circuits | 1 |
| Output current AS-i[A] [A] | 2.8 |
| Max. residual ripple[mV] [mV] | 50 |
| External input protection | > 6 A |
| Derating[W/K] [W/K] | 2 (60...70 °C) |
| Integrated data decoupling | yes |
Outputs
| Short-circuit protection | yes |
|---|---|
| Type of short-circuit protection | electronically protected |
| Overload protection | yes |
| Parallel connection of outputs possible | no |
| Series connection of outputs possible | no |
Operating conditions
| Ambient temperature[°C] [°C] | -10...70 |
|---|---|
| Protection | IP 20 |
Tests / approvals
| EMC | EN 50081-1 EN 61000-6-2 EN 61000-3-2 CE: IEC 60950 1999 |
|---|---|
| CE: IEC 60950 | 1999 |
| MTTF[years] [years] | 222 |
AS-i classification
| AS-i certificate | 54401 |
|---|
Mechanical data
| Weight[g] [g] | 573.5 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 131 x 49 x 109 |
| Materials | aluminium; steel sheet galvanised |
Displays / operating elements
| Display | function LED, green goes off in case of overload U < 28 V IR addressing LED, red |
|---|---|
| function | LED, green goes off in case of overload U < 28 V |
| IR addressing | LED, red |
Remarks
| Pack quantity | 1 pcs. |
|---|
