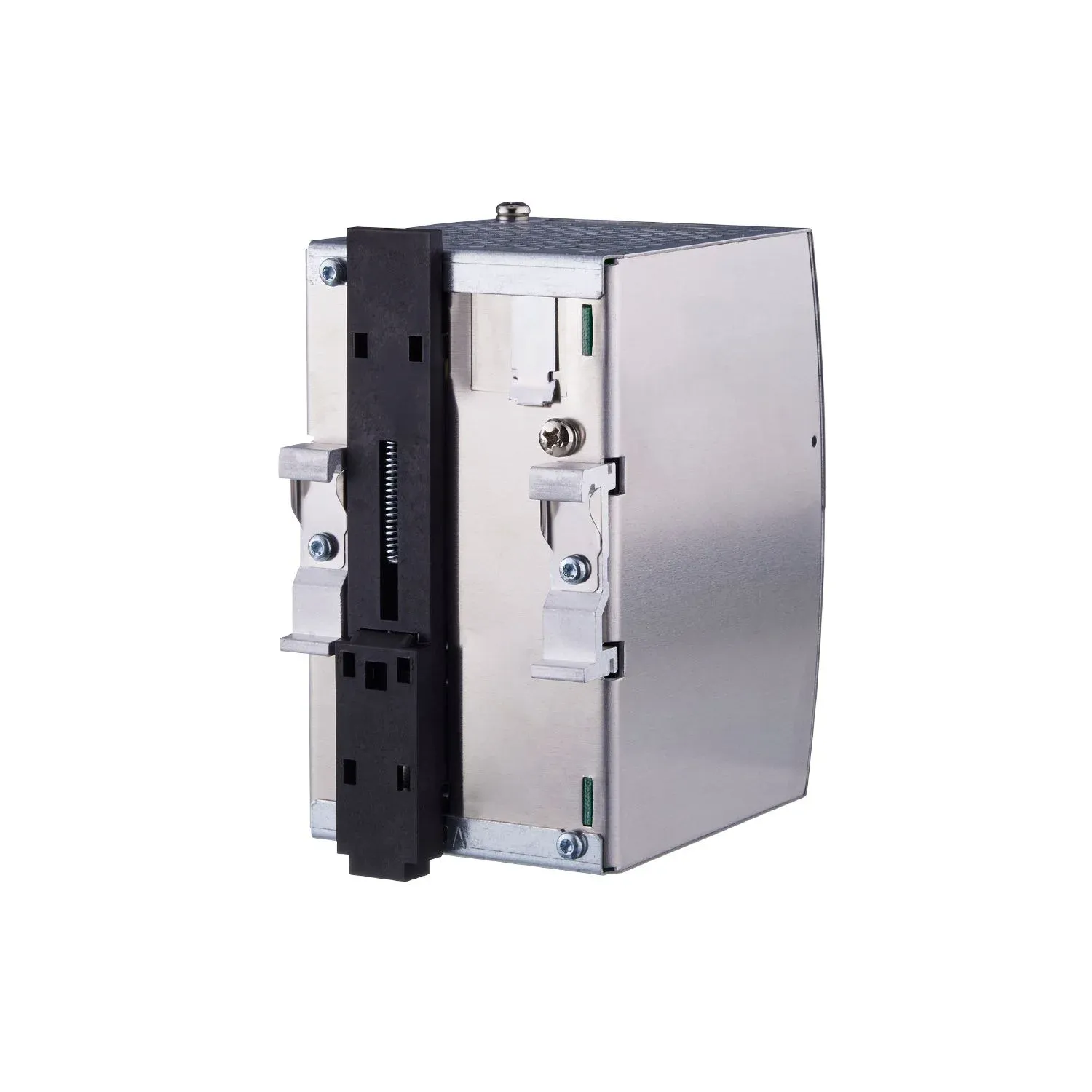

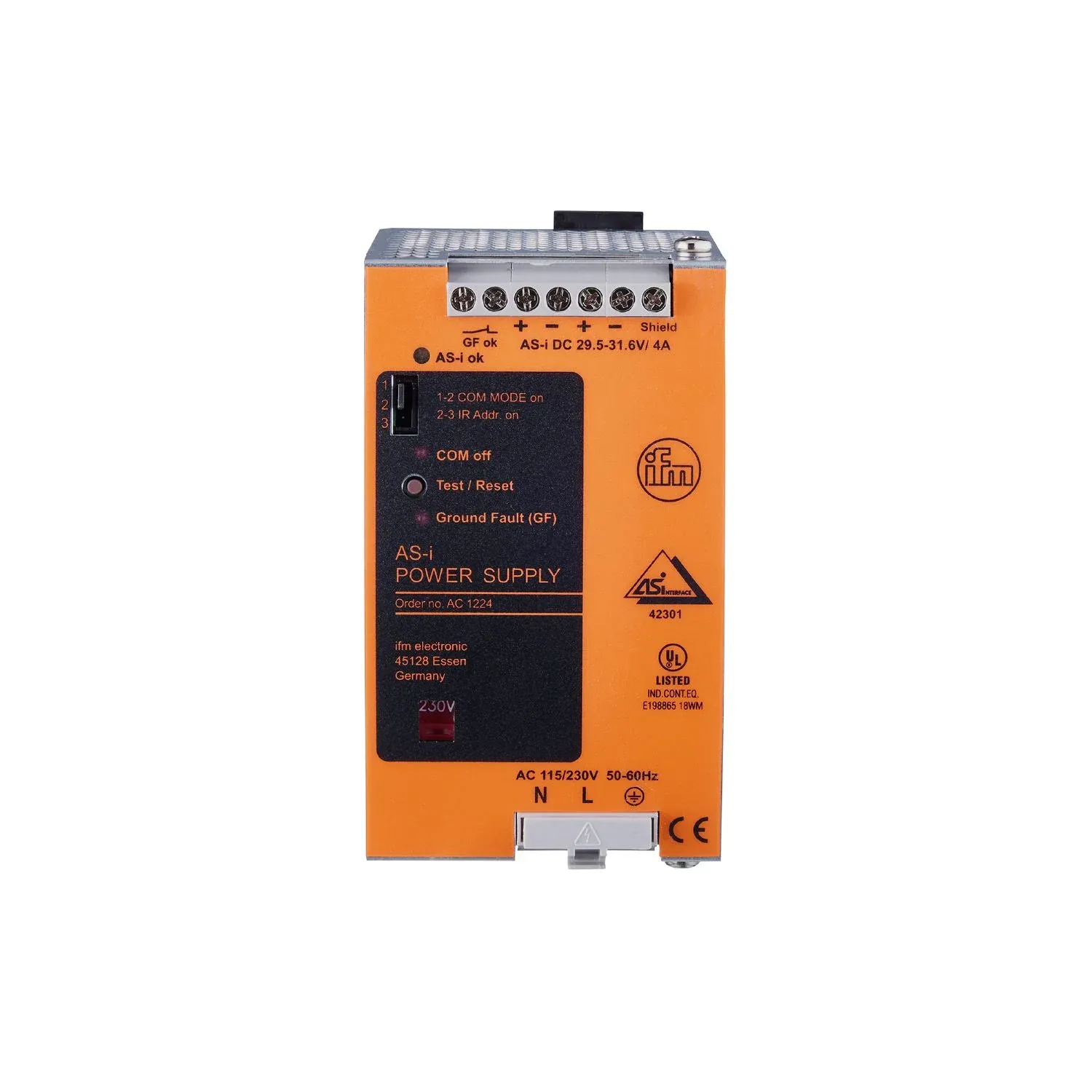

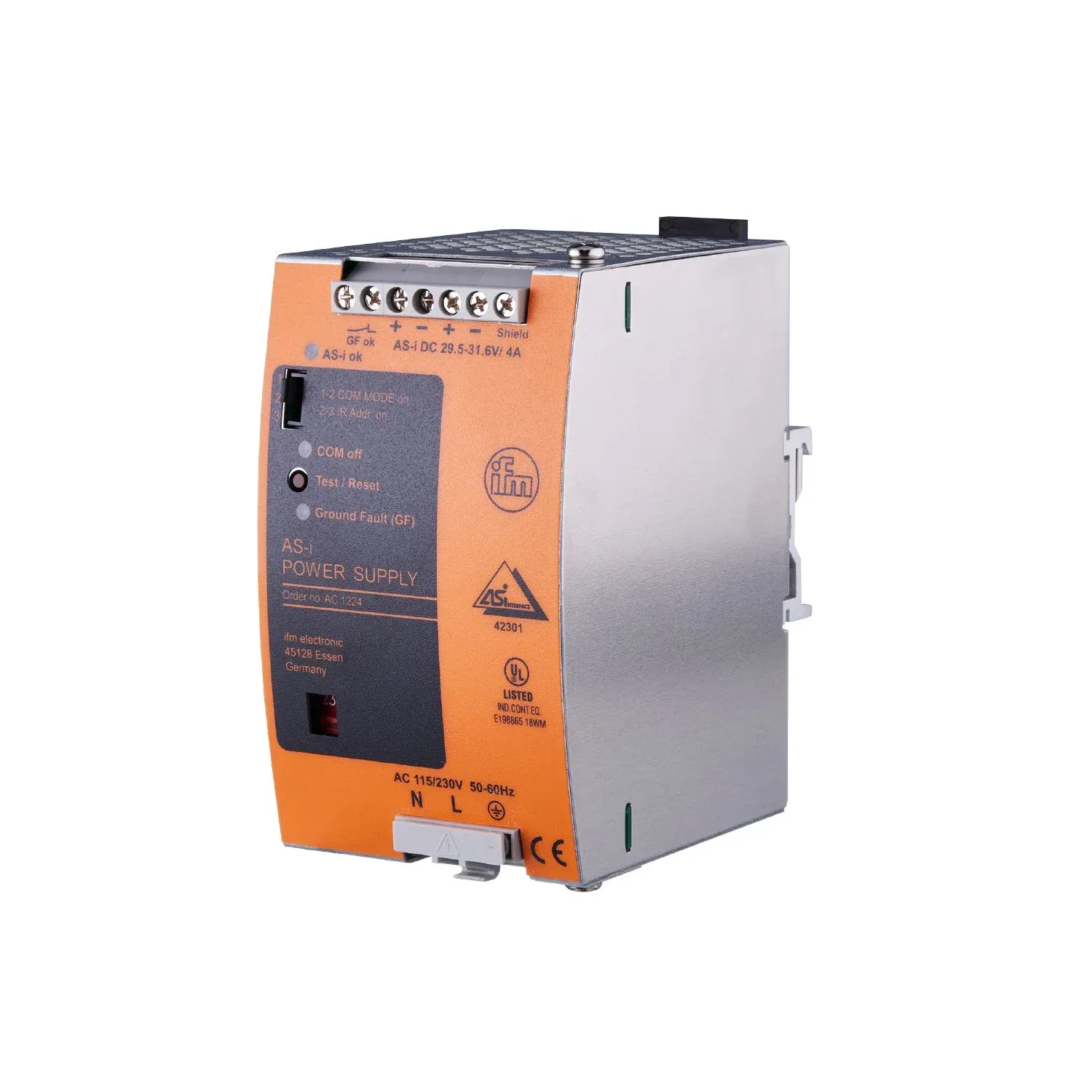

IFM AC1224
AC1224
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliably power supply for modules, sensors and actuators
High noise immunity and sufficient power reserves for the compensation of current peaks
Safe decoupling of interferences from the primary supply
Particularly space-saving design
Low heating of the control cabinet due to high efficiency
Specification
Application
| Design | housing for DIN rail mounting, Integrated earth fault monitor |
|---|
Electrical data
| Frequency AC[Hz] [Hz] | 47...63 |
|---|---|
| Nominal voltage AC[V] [V] | 110 / 230 |
| Input voltage range AC[V] [V] | 85...132 / 184...264 |
| Protection class | I |
| Max. power-on delay time[ms] [ms] | 100 |
| Output voltage AS-i[V] [V] | 30.5 |
| Output power (permanent)[W] [W] | 122 |
| Number of output circuits | 1 |
| Output current AS-i[A] [A] | 4 |
| Max. residual ripple[mV] [mV] | 50 |
| External input protection | B 6 A |
| Derating[W/K] [W/K] | 3 (60...70 °C) |
| Integrated data decoupling | yes |
Outputs
| Short-circuit protection | yes |
|---|---|
| Type of short-circuit protection | electronically protected |
| Overload protection | yes |
| Parallel connection of outputs possible | no |
| Series connection of outputs possible | no |
Operating conditions
| Ambient temperature[°C] [°C] | -10...70 |
|---|---|
| Note on ambient temperature | observe the free space for convection (see operating instructions) |
| Protection | IP 20 |
| Pollution degree | 2; (IEC 62103: conductive soiling not permitted) |
Tests / approvals
| EMC | EN 61000-6-1 EN 61000-6-2 EN 61000-6-4 |
|---|---|
| MTTF[years] [years] | 139 |
AS-i classification
| AS-i certificate | 42301 |
|---|
Mechanical data
| Weight[g] [g] | 750 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 131 x 73 x 107 |
| Materials | housing: steel sheet |
Displays / operating elements
| Display | operation 1 LED, green goes off in case of overload U < 28 V IR addressing 1 LED, red earth fault 1 LED, red |
|---|---|
| operation | 1 LED, green goes off in case of overload U < 28 V |
| IR addressing | 1 LED, red |
| earth fault | 1 LED, red |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| terminals | ...4 mm² |
|---|
