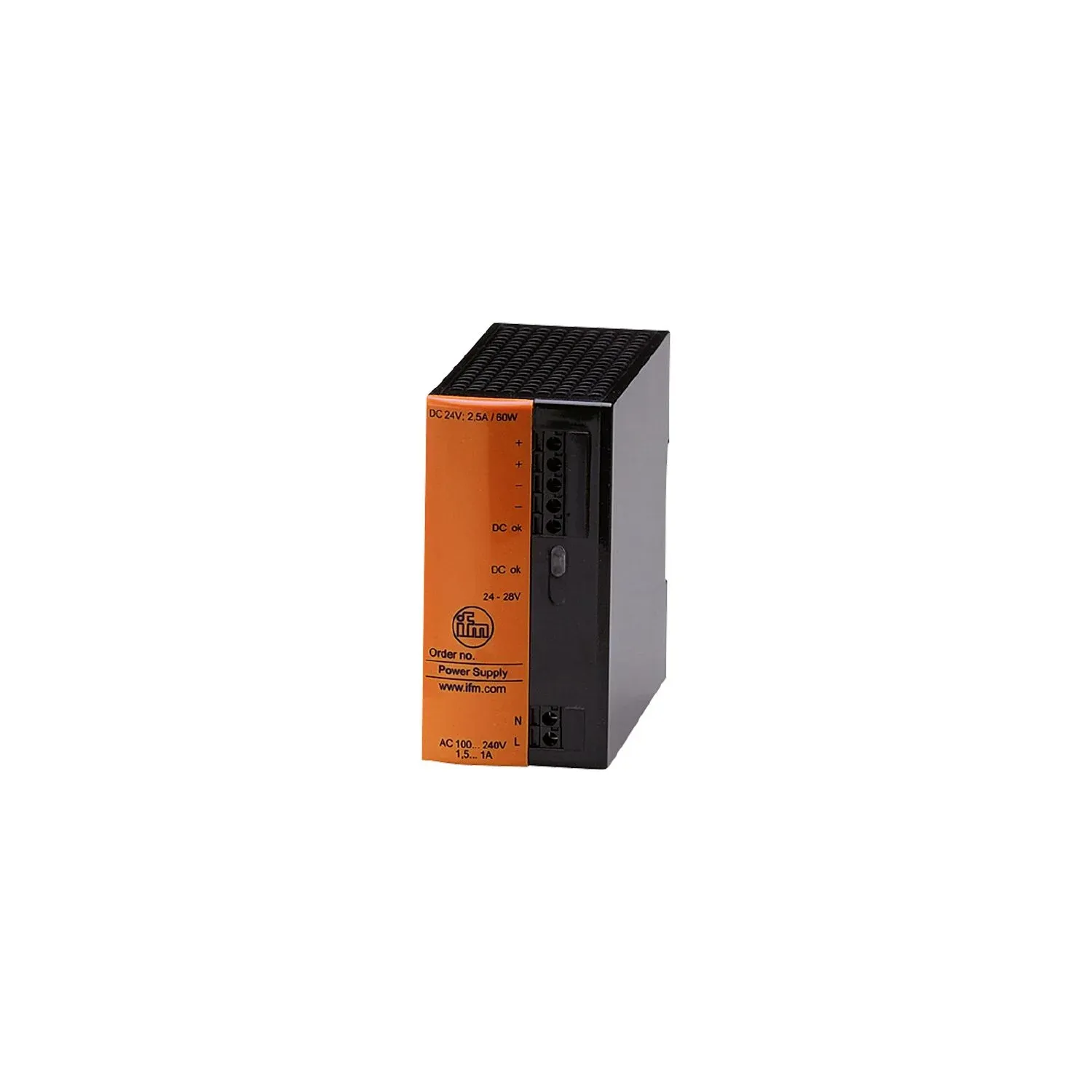

IFM AC1221
AC1221
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliably power supply for modules, sensors and actuators
High noise immunity and sufficient power reserves for the compensation of current peaks
Safe decoupling of interferences from the primary supply
Particularly space-saving design
Low heating of the control cabinet due to high efficiency
Specification
Application
| Design | housing for DIN rail mounting |
|---|
Electrical data
| Operating voltage tolerance[%] [%] | 10 |
|---|---|
| Nominal voltage AC[V] [V] | 110 / 230 |
| Nominal frequency AC[Hz] [Hz] | 47...63 |
| Input voltage range AC[V] [V] | 100...240 |
| Protection class | II |
| Overvoltage protection | yes; (< 34 V) |
| Max. power-on delay time[ms] [ms] | 380 |
| Output voltage AS-i[V] [V] | 29.5...31.6 |
| Output power (permanent)[W] [W] | 60 |
| Number of output circuits | 1 |
| Output current AS-i[A] [A] | 1.9 |
| Max. residual ripple[mV] [mV] | 50 |
| Efficiency (nominal voltage 230 V AC / 50 Hz)[%] [%] | 88 |
| Fuse[A] [A] | 10; (external, characteristics B) |
| Derating[W/K] [W/K] | 2% / K (> 60° C) |
| Mains buffering time (nominal voltage 230 V AC / 50 Hz)[ms] [ms] | 90 |
| Integrated data decoupling | yes |
Outputs
| Short-circuit proof | yes |
|---|---|
| Overload protection | yes |
| Parallel connection of outputs possible | no |
| Series connection of outputs possible | no |
Operating conditions
| Ambient temperature[°C] [°C] | 0...70 |
|---|---|
| Protection | IP 20 |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-3 |
|---|
AS-i classification
| AS-i certificate | 91001 |
|---|
Mechanical data
| Weight[g] [g] | 349.5 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715); free space for convection cooling 30 mm) |
| Dimensions[mm] [mm] | 90 x 45 x 100 |
| Materials | PC; ABS |
Displays / operating elements
| Display | AS-i voltage LED, green |
|---|---|
| AS-i voltage | LED, green |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| cage clamps | ...1.5 mm² |
|---|
