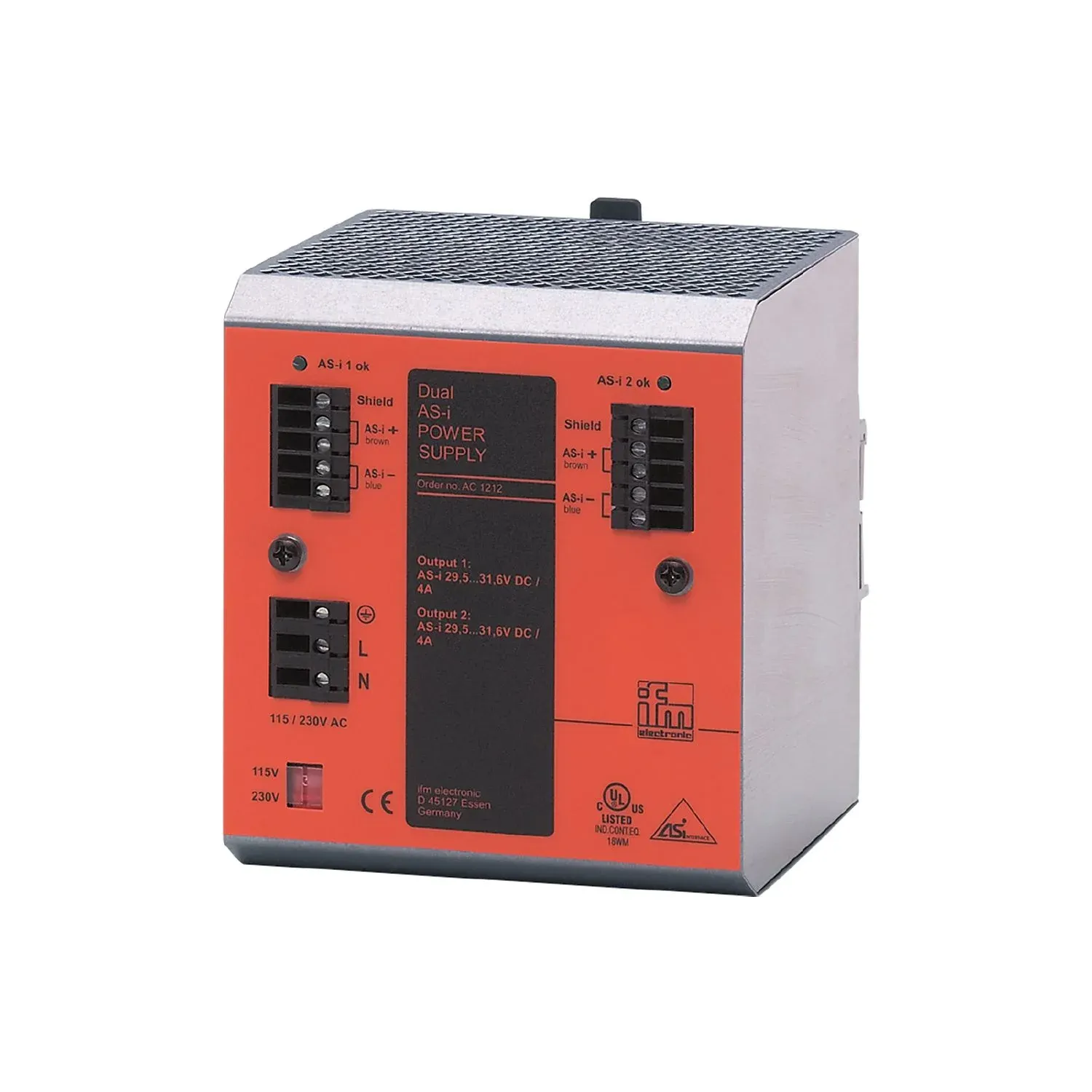

IFM AC1212
AC1212
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliably power supply for modules, sensors and actuators
High noise immunity and sufficient power reserves for the compensation of current peaks
Safe decoupling of interferences from the primary supply
Particularly space-saving design
Low heating of the control cabinet due to high efficiency
Specification
Application
| Design | housing for DIN rail mounting |
|---|
Electrical data
| Nominal voltage AC[V] [V] | 110 / 230 |
|---|---|
| Nominal frequency AC[Hz] [Hz] | 47...63 |
| Input voltage range AC[V] [V] | 88...132 / 184...264 |
| Max. power-on delay time[ms] [ms] | 500 |
| Output voltage AS-i[V] [V] | 29.5...31.6; (to PELV) |
| Number of output circuits | 2 |
| Output current AS-i[A] [A] | 4 |
| Max. residual ripple[mV] [mV] | 50 |
| External input protection | > 10 A |
| Fuse[A] [A] | 8; (not accessible) |
| Derating[W/K] [W/K] | 1 (60...70 °C) |
| Power loss (nominal voltage 230 V AC / 50 Hz)[W] [W] | 30 |
| Power loss in open-circuit operation[W] [W] | 4 |
| Integrated data decoupling | yes |
Outputs
| Short-circuit protection | yes |
|---|---|
| Overload protection | yes |
| Parallel connection of outputs possible | no |
| Series connection of outputs possible | no |
Operating conditions
| Ambient temperature[°C] [°C] | -10...60 |
|---|---|
| Protection | IP 20 |
Tests / approvals
| EMC | EN 60950/A2 1993 EN 50081-1 EN 61000-6-2 |
|---|---|
| MTTF[years] [years] | 23 |
AS-i classification
| AS-i certificate | 21901 |
|---|
Mechanical data
| Weight[g] [g] | 1263.5 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 134 x 120 x 118.5 |
| Materials | aluminium |
Displays / operating elements
| Display | function 2 x LED, green |
|---|---|
| function | 2 x LED, green |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| terminals | ...2.5 mm² |
|---|
