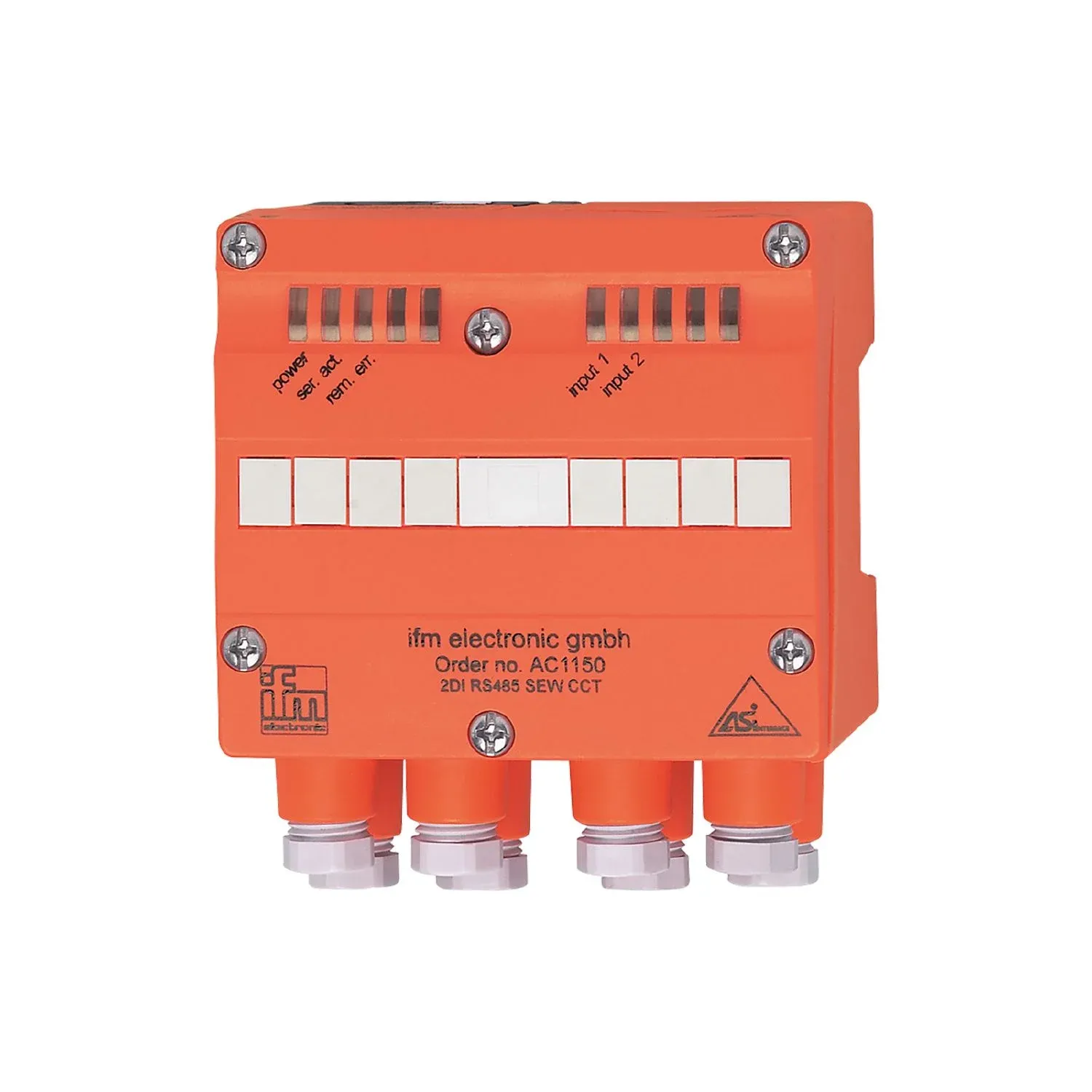

IFM AC1150
AC1150
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy to mount and wire
For the connection of sensors and actuators with cable entry
Device connection with cage clamps
Clearly visible powerful LEDs for displaying operation, switching status and error
Specification
Application
| Application | field installation |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 80 |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 2 |
|---|
Inputs
| Number of digital inputs | 2 |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AUX |
| Power supply[V] [V] | 20...30 |
| Max. total current rating of inputs[mA] [mA] | 26 |
| Input current High[mA] [mA] | > 5 |
| Input current Low[mA] [mA] | < 1 |
Operating conditions
| Ambient temperature[°C] [°C] | 0...55 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC | EN 50295 |
|---|
AS-i classification
| AS-i master profile | M2; M3; M4 |
|---|---|
| AS-i profile | S-7.F |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | F |
| Assignment of the data bits | data bit D0 D1 D2 D3 function motor stopped/running error message input 1 input 2 |
| data bit | D0 |
| function | motor stopped/running |
Mechanical data
| Weight[g] [g] | 286.7 |
|---|---|
| Housing | rectangular |
| Type of mounting | AS-i interface to FC-E lower parts |
| Dimensions[mm] [mm] | 102 x 91 x 71 |
| Materials | PBT |
Displays / operating elements
| Display | switching status LED, yellow operation LED, green short circuit LED, red function LED, red |
|---|---|
| switching status | LED, yellow |
| operation | LED, green |
| short circuit | LED, red |
| function | LED, red |
Remarks
| Pack quantity | 1 pcs. |
|---|
