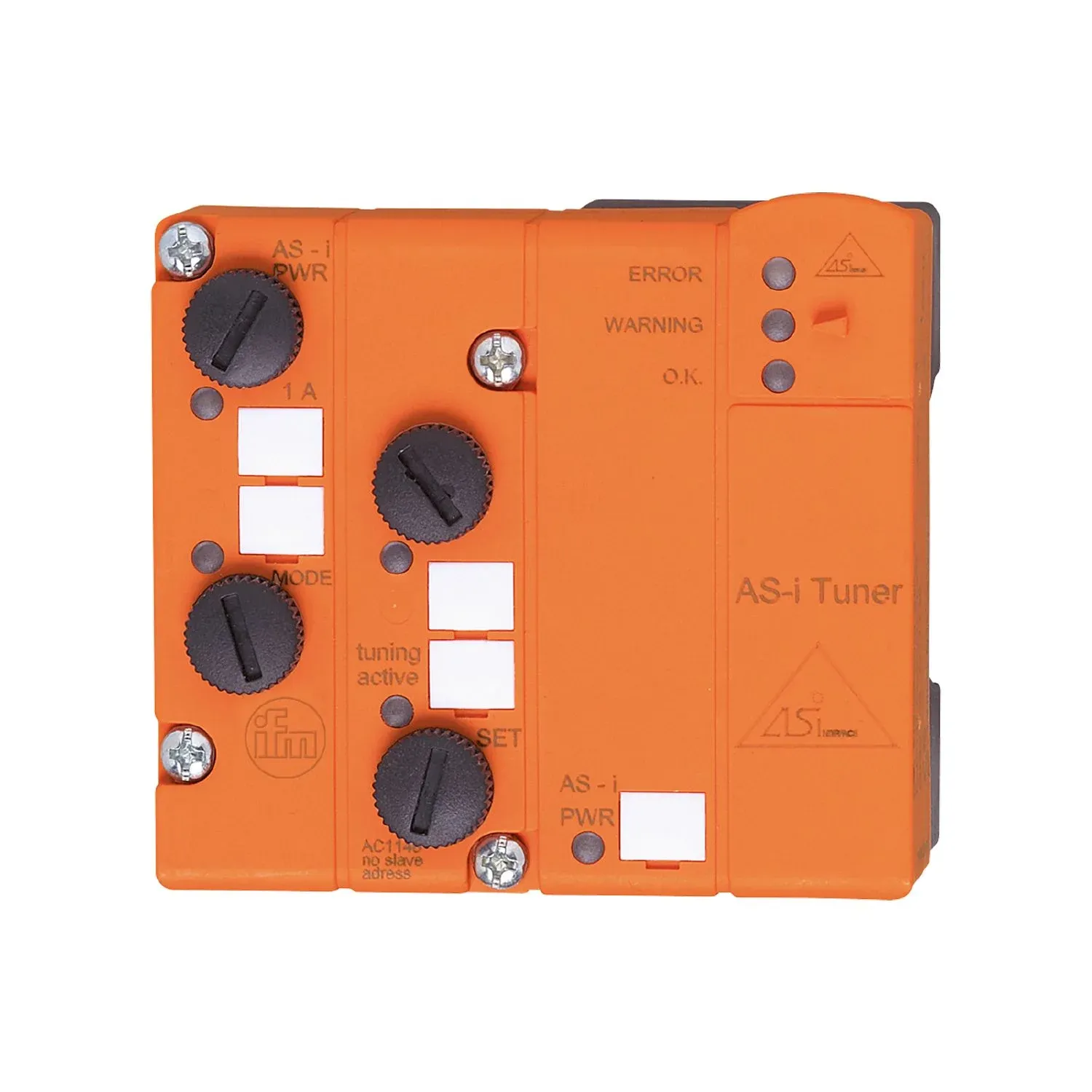

IFM AC1146
AC1146
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For checking the AS-i network
For reliably monitoring the message quality
Clearly visible LEDs for indicating communication status and operation
Cable extension by a further 200 metres without additional repeater
Can be used in any network topology
Specification
Application
| Application | diagnostic tool for AS-i |
|---|
Electrical data
| Nominal voltage DC[V] [V] | 26.5...31.6 |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 60 |
| Reverse polarity protection | yes |
| Undervoltage monitoring | yes |
Operating conditions
| Ambient temperature[°C] [°C] | 0...55 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| MTTF[years] [years] | 140 |
|---|
Mechanical data
| Weight[g] [g] | 199.2 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 83 x 90 x 44 |
| Materials | PBT |
Displays / operating elements
| Display | operation LED, green warning LED, yellow errors LED, red |
|---|---|
| operation | LED, green |
| warning | LED, yellow |
| errors | LED, red |
Accessories
| Accessories (optional) | Module lower part:, AC5000 |
|---|
Remarks
| Remarks | no addressing required current rating of the AS-i distribution socket max. 1 A |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | M12; coding: A |
|---|
