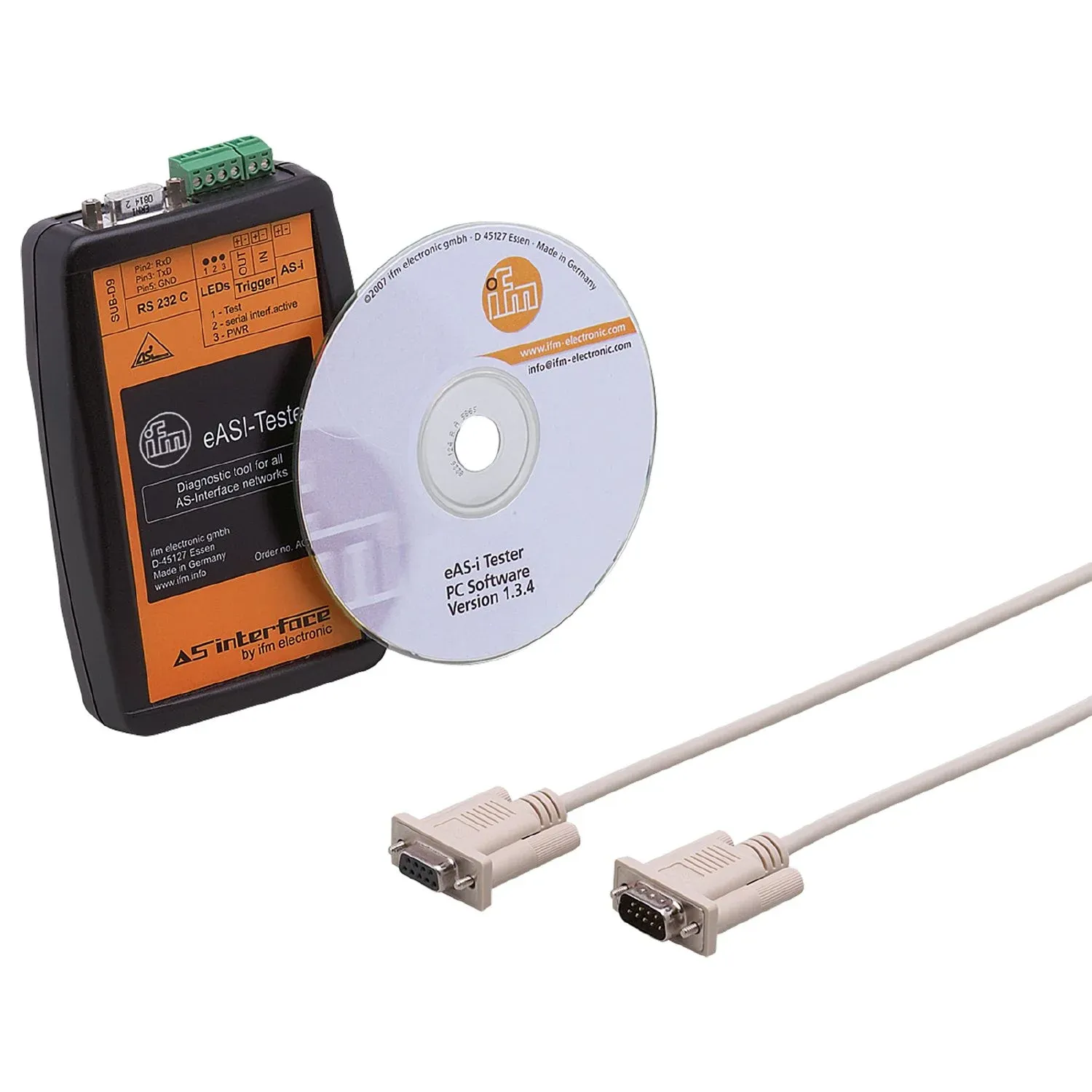

IFM AC1145
AC1145
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Indication of all slaves on the bus
Reading and writing slave data and slave parameters
Local diagnosis of the AS-i network
User-friendly diagnosis and evaluation
Specification
Application
| Application | Local diagnosis of the AS-i network; creation of test reports for AS-i networks; diagnosis and analysis tool for AS-i |
|---|
Electrical data
| Undervoltage monitoring | yes |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | 0...55 |
|---|---|
| Storage temperature[°C] [°C] | -25...70 |
Tests / approvals
| EMC | EN 50081-2 EN 61000-6-2 |
|---|---|
| MTTF[years] [years] | 280 |
AS-i classification
| AS-i version | 2.1 |
|---|
Mechanical data
| Weight[g] [g] | 346 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 138 x 91 x 29 |
Accessories
| Items supplied | D-Sub data cable software on CD |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
