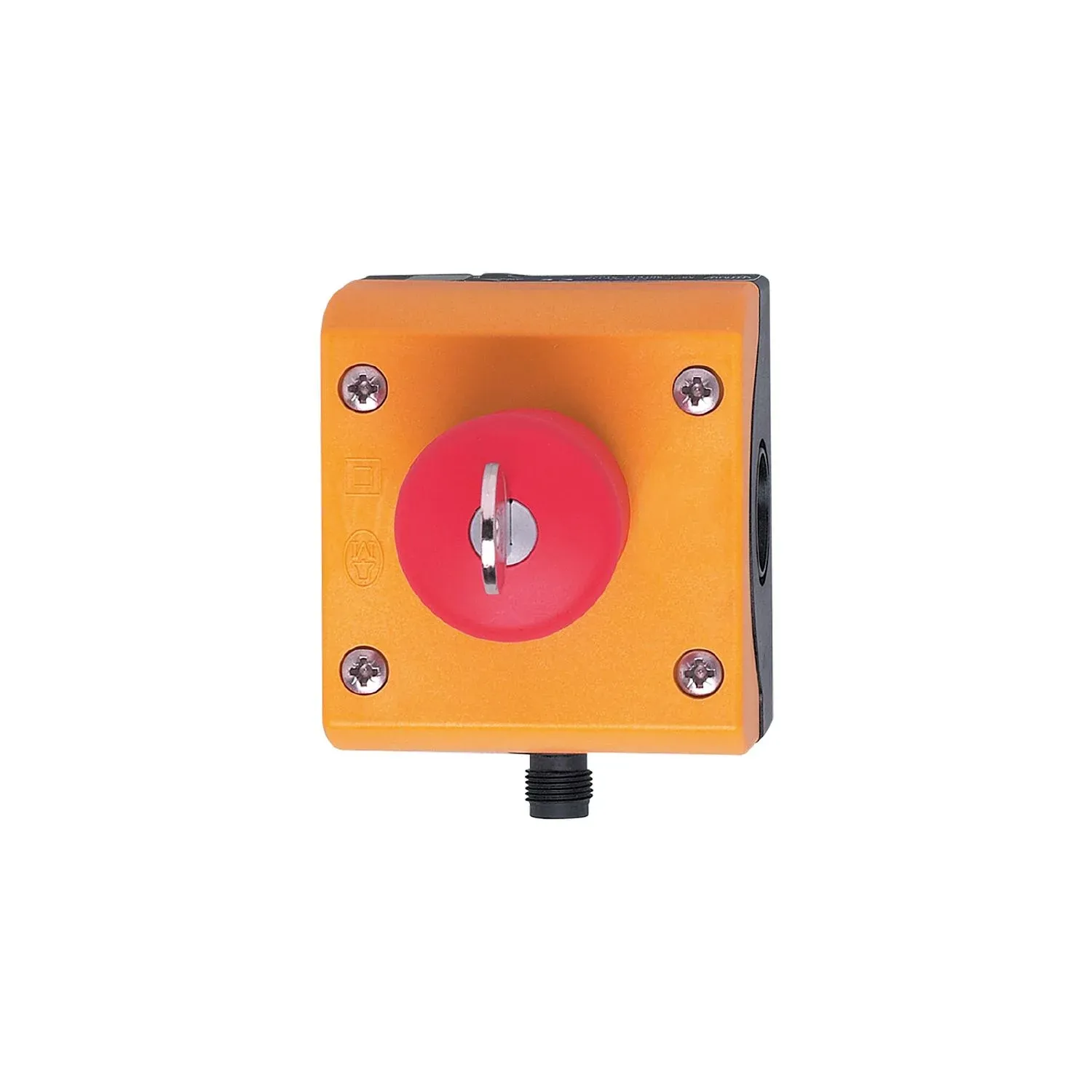

IFM AC011S
AC011S
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
With AS-i interface
Robust design for use in harsh industrial environments
Certified to EN ISO 13849 PL e and IEC 61508, SIL3
For the detection of safety-related switching states
Evaluation via AS-i safety monitor
Specification
Application
| Application | fool-proof E-STOP to EN ISO 13850 |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Current consumption[mA] [mA] | < 50 |
Inputs
| Input circuit of digital inputs | PNP |
|---|---|
| Sensor supply of the inputs | AS-i |
| Power supply[V] [V] | 20 |
| Input current Low[mA] [mA] | < 4 |
| Digital inputs protected against short circuits | yes |
Outputs
| Electrical design | AS-i |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
Safety classification
| Complies with the requirements | ISO 13849-1: 2015 category 4, PL e IEC 61508 SIL 3 |
|---|---|
| Mission time TM[h] [h] | 87600 |
AS-i classification
| AS-i version | 2.1 |
|---|---|
| Extended addressing mode | no |
| AS-i master profile | M3; M4 |
| AS-i profile | S-7.B.E |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | B.E |
| AS-i certificate | 74601 |
Mechanical data
| Weight[g] [g] | 343.5 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 93.5 x 72 x 105 |
| Materials | PC-GF20 |
Electrical connection
| Module connection | M12 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | M12; coding: A |
|---|
