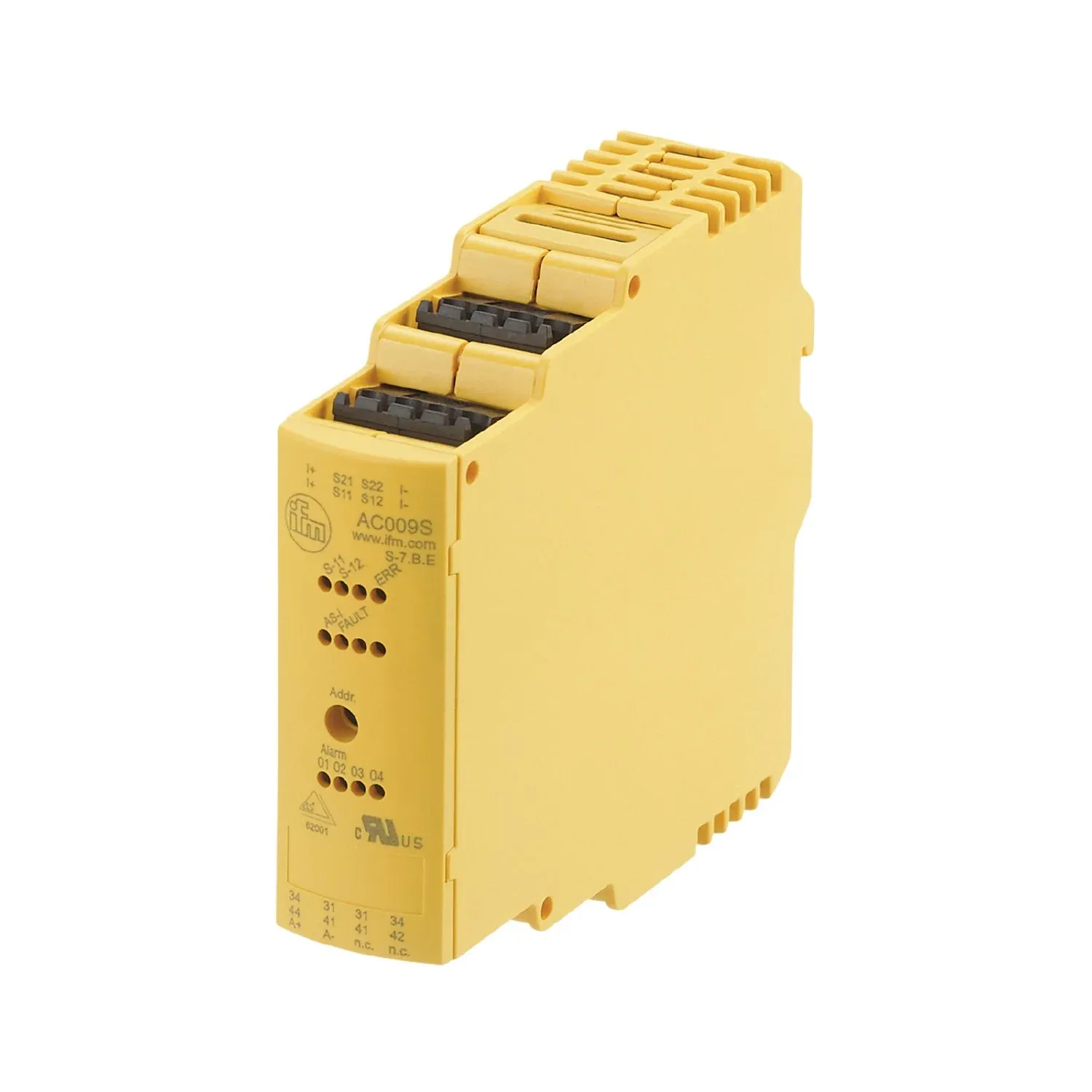

IFM AC009S
AC009S
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the connection of mechanical safety switches to AS-Interface
With two safe inputs and cross-monitoring
Clearly visible powerful LEDs for displaying operation, switching status and error
Simple and fast wiring by means of screw terminals
Particularly space-saving design
Specification
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | Installation in control cabinets |
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 250 |
| Max. current load total[A] [A] | 6; (ohmic resistance) |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 2; Number of relay outputs: 2 |
|---|
Inputs
| Number of digital inputs | 2; (2 x safety input) |
|---|---|
| Input circuit of digital inputs | PNP; (DC) |
| Sensor supply of the inputs | AS-i |
| Max. total current rating of inputs[mA] [mA] | 100 |
| Input current High[mA] [mA] | 10 |
| Short-circuit protection digital inputs | yes |
Outputs
| Voltage range DC[V] [V] | 24; (The outputs O3 + O4 must be supplied in pairs with the same voltage. 2 x 24 V DC) |
|---|---|
| Voltage range AC[V] [V] | 10...240; (The outputs O3 + O4 must be supplied in pairs with the same voltage. 2 x 240 V AC) |
| Max. current load per output[mA] [mA] | 6000; (ohmic resistance) |
| Number of relay outputs | 2 |
| Short-circuit proof | no |
| Electrically separated | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...50 |
|---|---|
| Storage temperature[°C] [°C] | < 80 |
| Max. relative air humidity[%] [%] | 80; (non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 20 |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN 61000-6-2 EN 62026-2 EN 61326-3-1 EN 61000-6-4 |
|---|---|
| Standard | EN 61010-1; EN 13849-1; EN 63000 |
Safety classification
| Complies with the requirements | ISO 13849-1 category 4, PL e IEC 61508 SIL 3 |
|---|---|
| Mission time TM[h] [h] | 175200 |
| Mission time TM (additional indication) | 20 years |
| PFH[1/h] [1/h] | 4E-09 |
AS-i classification
| AS-i version | 2.11; 3.0 |
|---|---|
| AS-i addressing | addressing socket |
| Extended addressing mode | no |
| AS-i profile | S-7.B.E |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | B.E |
| AS-i certificate | 62001 |
| Assignment of the data bits | data bit D0 D1 D2 D3 input SI-1 SI-1 SI-2 SI-2 Output O-1 O-2 O-3 O-4 |
| data bit | D0 |
| input | SI-1 |
| Output | O-1 |
Mechanical data
| Weight[g] [g] | 257.75 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 93 x 25.4 x 108 |
| Materials | PC-GF20 |
Displays / operating elements
| Display | switching status LED, yellow SI1...SI2, O3...O4 operation LED, green AS-i errors LED, red ERR O1...O2 |
|---|---|
| switching status | LED, yellow SI1...SI2, O3...O4 |
| operation | LED, green AS-i |
| errors | LED, red ERR O1...O2 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| pin headers | 4 x ; Spacing: 5.0 mm |
|---|
