Description

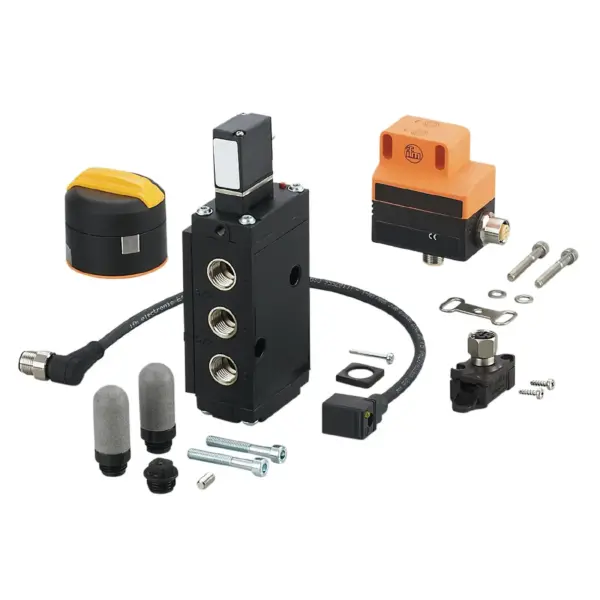

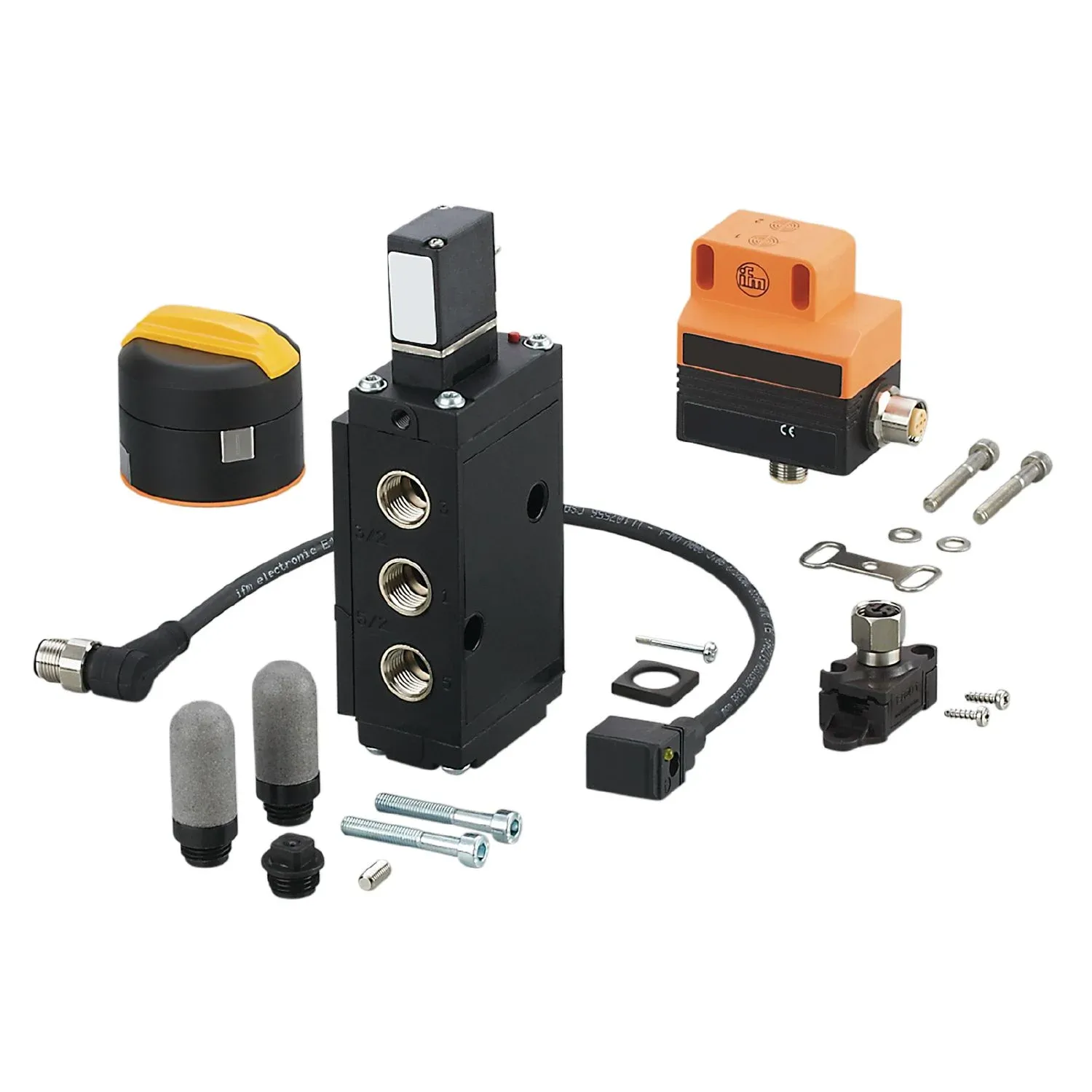

Complete automation set for quick set-up
For monitoring valve positions
For reliable position feedback on valve actuators
With triggering and fault monitoring of the solenoid valve
Quick and secure mounting with only three screws
Specification
Product characteristics
| Output function | PNP |
|---|
Application
| Application | direct open and close valve control |
|---|---|
| Components | dual sensor for actuator feedback: 1, AC2316 solenoid valve: 1, ZJF124 Target pucks: 1, E12517 silencer: 2, 780780N Connection cable: 1, E10844 Flat cable insulation displacement connector: 1, E75471 |
Electrical data
| Max. current consumption from AS-i [mA] | 160 |
|---|---|
| Operating voltage AUX DC [V] | 26.5...31.6; ("supply class 2" to cULus) |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 2; Number of digital outputs: 1 |
|---|
Inputs
| Number of digital inputs | 2 |
|---|
Outputs
| Number of digital outputs | 1 |
|---|---|
| Output function | PNP |
AS-i classification
| AS-i version | 2.1 |
|---|---|
| AS-i profile | S-7.A.E |
| AS-i I/O configuration [hex] | 7 |
| AS-i ID code [hex] | A.E |
Mechanical data
| Weight [g] | 853.5 |
|---|---|
| Mounting | non-flush mountable |
| Hole spacing [mm] | 80 |
| Shaft height of valve drive [mm] | 30 |
Remarks
| Pack quantity | 1 pcs. |
|---|
