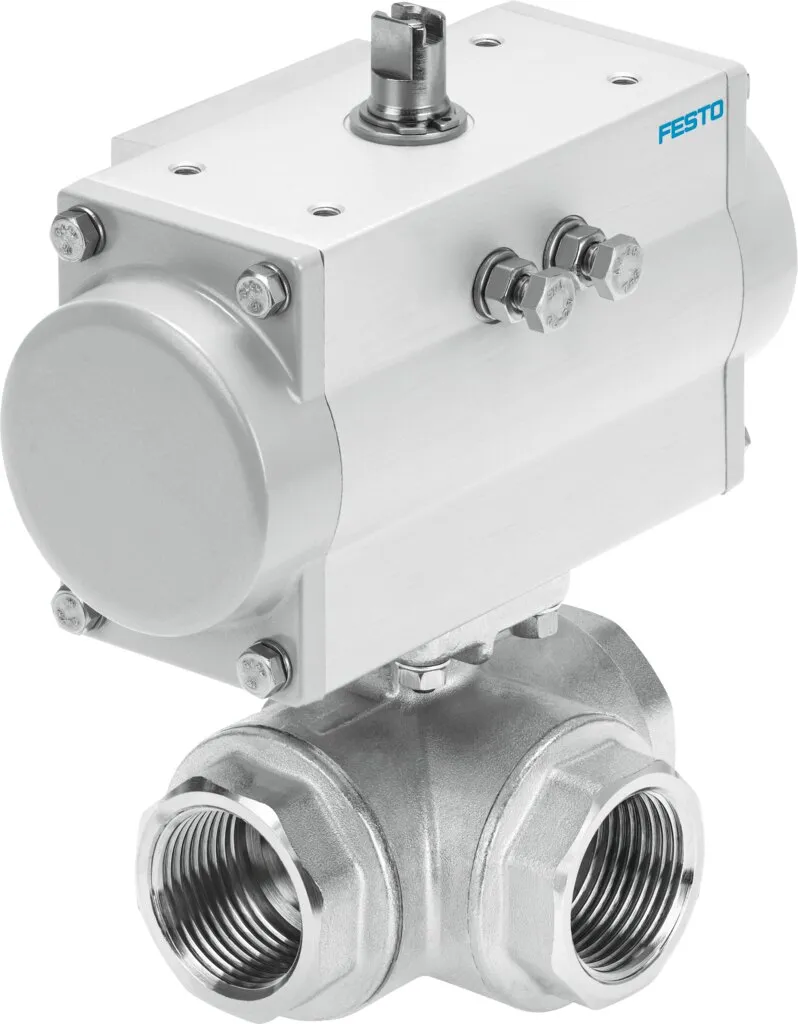

Festo VZBM-A-1/2″-RP-25-F-3T-B2-PB20
Ball valve actuator unit with double-acting or single-acting quarter turn actuator DFPD , Brass ball valve , 2-way ball valve actuator unit with pipe thread to EN 10226-1 , 3-way ball valve actuator u…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Ball valve actuator unit with double-acting or single-acting quarter turn actuator DFPD , Brass ball valve , 2-way ball valve actuator unit with pipe thread to EN 10226-1 , 3-way ball valve actuator unit with drilled L-hole and pipe thread to EN 10226-1 , 3-way ball valve actuator unit with drilled T-hole and pipe thread to EN 10226-1 , Flow is fully opened or closed in both directions
Specification
| Design |
3-way ball valve, Semi-rotary drive |
|---|---|
| Type Of Actuation |
Pneumatic |
| Mounting Position |
optional |
| Type Of Mounting |
In-line installation |
| Connection Process Valve |
Rp1/2 |
| Switching Position Indicator |
Slot direction = flow direction |
| Nominal Size Dn |
15 |
| Operating Pressure |
5.5, 8 bar |
| Nominal Pressure Pn |
25 |

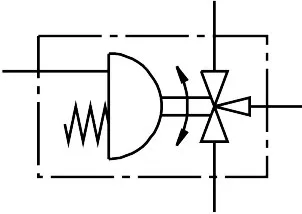

| Symbol |
00995330 |
| Medium |
Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water – no water vapour, Neutral fluids |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium |
Dew point at least 10 °C below the ambient temperature and temperature of the medium, Lubricated operation possible (in which case lubricated operation will always be required) |
| Media Temperature |
-20, 130 °C |
| Ambient Temperature |
-20, 80 °C |
| Flow Rate Kv T Hole Angled |
17 m³/h |
| Note On Materials |
RoHS-compliant |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Material Housing |
Brass, nickel-plated |
| Material Number Housing |
CW617N |
| Material Seals |
HNBR, PTFE |
| Material Ball |
Brass, chrome-plated |
| Material Number Ball |
CW614N |
| Material Shaft |
Brass |
| Material Number Shaft |
CW614N |
| Product Weight |
1887 g |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
