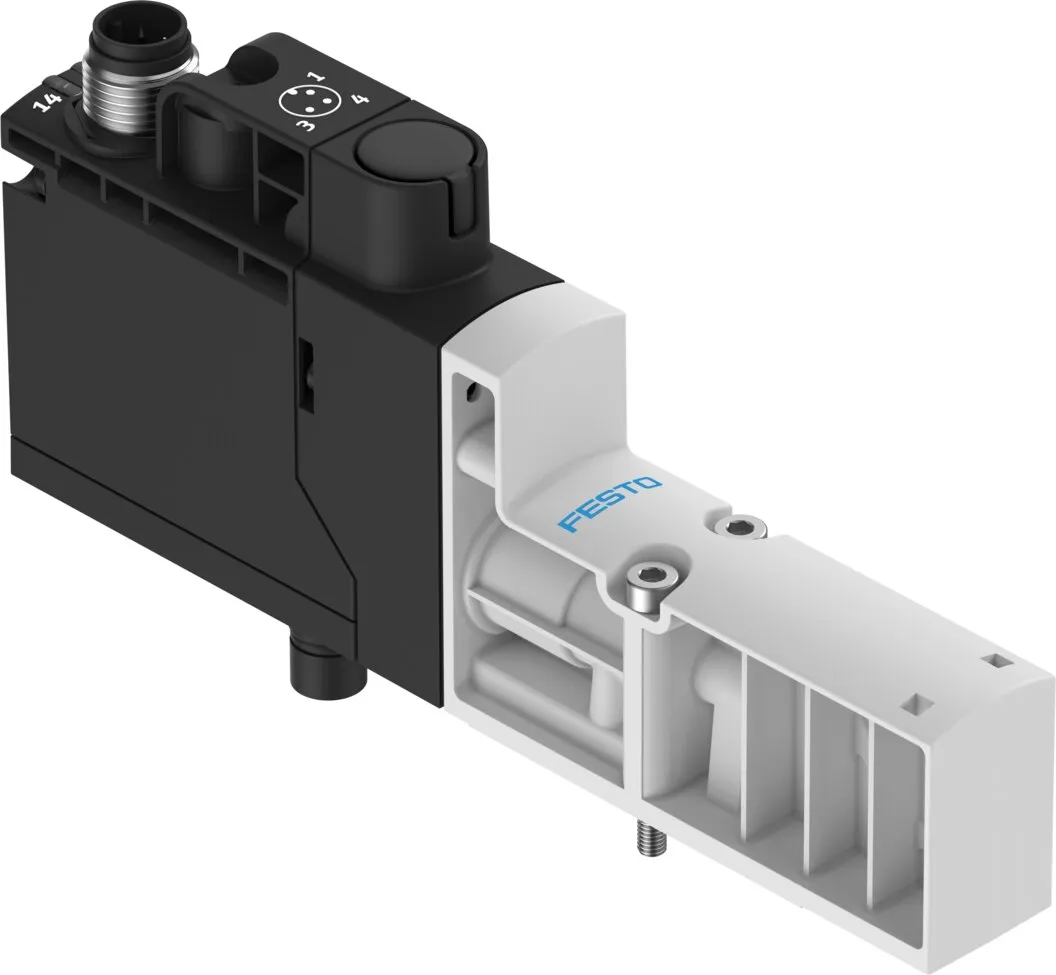

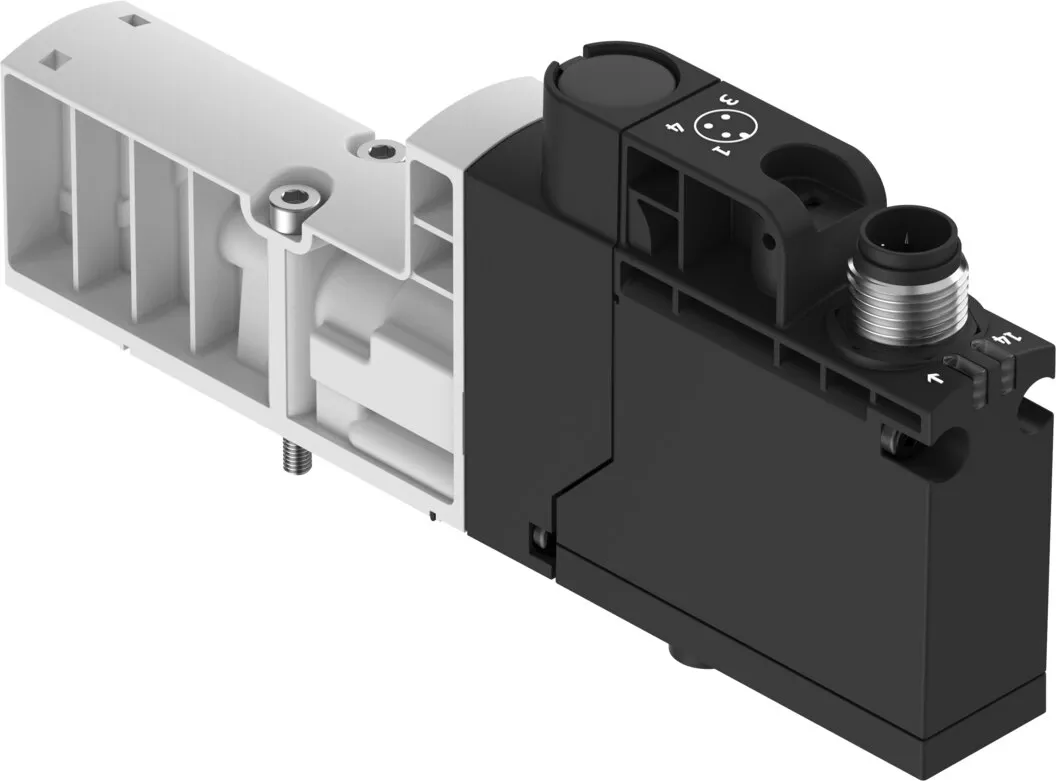

Festo VSVA-BT-M32CS1-MH-A2-1T1L-PZ
For valve terminal VTSA/VTSA-F , Robust metal housing
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For valve terminal VTSA/VTSA-F , Robust metal housing
Specification
| Valve Function |
3/2-way, closed, monostable |
|---|---|
| Type Of Actuation |
Electric |
| Construction Width |
18 mm |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
125 l/min |
| Standard Nominal Flow Rate For Exhaust |
125 l/min |
| Operating Pressure |
3, 10 bar |
| Design |
Poppet seat |
| Type Of Reset |
Mechanical spring, Pneumatic spring |
| Degree Of Protection |
IP65 |
| Sealing Principle |
Soft |
| Mounting Position |
optional |
| Manual Override |
Non-detenting |
| Type Of Piloting |
Pilot actuated |
| Pilot Air Supply |
Internal |
| Flow Direction |
Non-reversible |

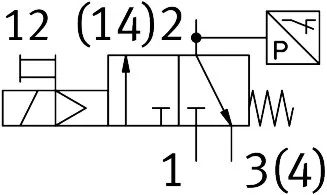

| Symbol |
00997584 |
| Lap |
Underlap |
| Signal Status Display |
Yellow LED, valve control, Green LED, pressure switch, exhausted status |
| Switching Position Sensing |
Via pressure switch, exhausted status |
| Duty Cycle |
100% |
| Max. Positive Test Pulse With Signal |
2000 µs |
| Max. Negative Test Pulse With 1 Signal |
1200 µs |
| Nominal Operating Voltage Dc |
24 V |
| Characteristic Coil Data |
24 V DC: 1.6 W |
| Permissible Voltage Fluctuations |
+/- 10 % |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium |
Lubricated operation not possible |
| Vibration Resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock Resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Media Temperature |
-5, 50 °C |
| Pilot Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature |
-5, 50 °C |
| Mean Time To Failure (Mttf), Subcomponent |
443 years, pressure switch |
| Product Weight |
110 g |
| Switch Off Point Min. |
0.05 bar |
| Switch On Point |
0.2 bar |
| Switch On Point Max. |
0.3 bar |
| Electrical Connection |
Plug-in |
| Type Of Mounting |
On sub-base |
| Pneumatic Connection, Port 2 |
G1/8 |
| Pneumatic Connection, Port 4 |
G1/8 |
| Note On Materials |
RoHS-compliant |
| Material Seals |
HNBR, NBR |
| Material Housing |
PA-reinforced |
| Material Screws |
Galvanised steel |
| Switching Element Function |
N/C contact |
