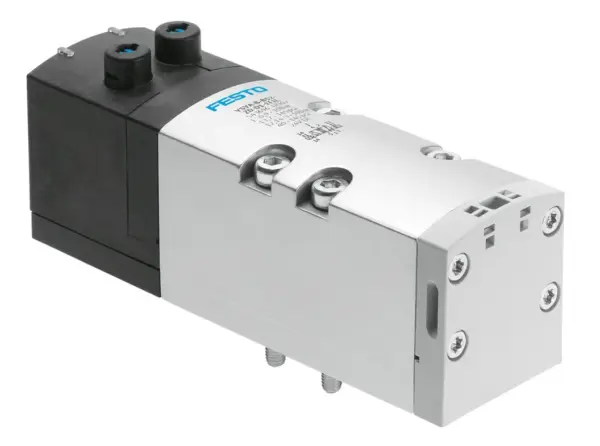

Festo VSVA-B-P53F-Z-D1-1T1L
For valve terminal VTSA/VTSA-F , Robust metal housing
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For valve terminal VTSA/VTSA-F , Robust metal housing
Specification
| Valve Function |
5/3-way, pressurised 1 to 2, 4 to 5 closed |
|---|---|
| Type Of Actuation |
Electric |
| Construction Width |
42 mm |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
1400 l/min |
| Pneumatic Working Port |
Sub-base size 1 to ISO 5599-2, G3/8 |
| Operating Voltage |
24V DC |
| Operating Pressure |
-0.9, 10 bar |
| Design |
Piston gate valve |
| Approval |
c UL us – Recognized (OL) |
| Degree Of Protection |
IP65, NEMA 4 |
| Exhaust Air Function |
With flow control option, Via throttle plate, Via individual sub-base |
| Sealing Principle |
Soft |
| Mounting Position |
optional |
| Manual Override |
Covered |
| Type Of Piloting |
Pilot actuated |
| Pilot Air Supply |
External |
| Flow Direction |
optional |
| Symbol |
00995436 |
| Signal Status Display |
LED |
| Pilot Pressure |
3, 10 bar |
| Flow Rate Of Valve |
1700 l/min |
| Flow Rate Of Valve On Individual Sub Base |
1400 l/min |
| Valve Flow Rate, Pneumatically Linked, Flow Optimized |
1700 l/min |
| Flow Rate Of Pneumatically Interlinked Valve |
1400 l/min |
| Switching Time Off |
65 ms |
| Switching Time On |
22 ms |
| Nominal Pick Up Current Per Solenoid Coil |
72 mA to 30 ms |
| Characteristic Coil Data |
24 V DC: 1.6 W |
| Immunity To Surge |
2.5 kV |
| Pollution Degree |
3 |
| Permissible Voltage Fluctuations |
+/- 10 % |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Relative Air Humidity |
0 – 90% |
| Ambient Temperature |
-5, 50 °C |
| Product Weight |
456 g |
| Electrical Connection |
Plug-in, To ISO 5599-2 |
| Type Of Mounting |
On sub-base |
| Pilot Air Port 12/14 |
Sub-base size 1 to ISO 5599-2 |
| Pilot Exhaust Port 82/84 |
Ducted, Not ducted as per standard, Either: |
| Pneumatic Connection, Port 1 |
Sub-base size 1 to ISO 5599-2 |
| Pneumatic Connection, Port 2 |
Sub-base size 1 to ISO 5599-2 |
| Pneumatic Connection, Port 3 |
Sub-base size 1 to ISO 5599-2 |
| Pneumatic Connection, Port 4 |
Sub-base size 1 to ISO 5599-2 |
| Pneumatic Connection, Port 5 |
Sub-base size 1 to ISO 5599-2 |
| Note On Materials |
RoHS-compliant |
| Material Seals |
FPM, HNBR, NBR |
| Material Housing |
Die-cast aluminium, PA |
| Material Screws |
Galvanised steel |
