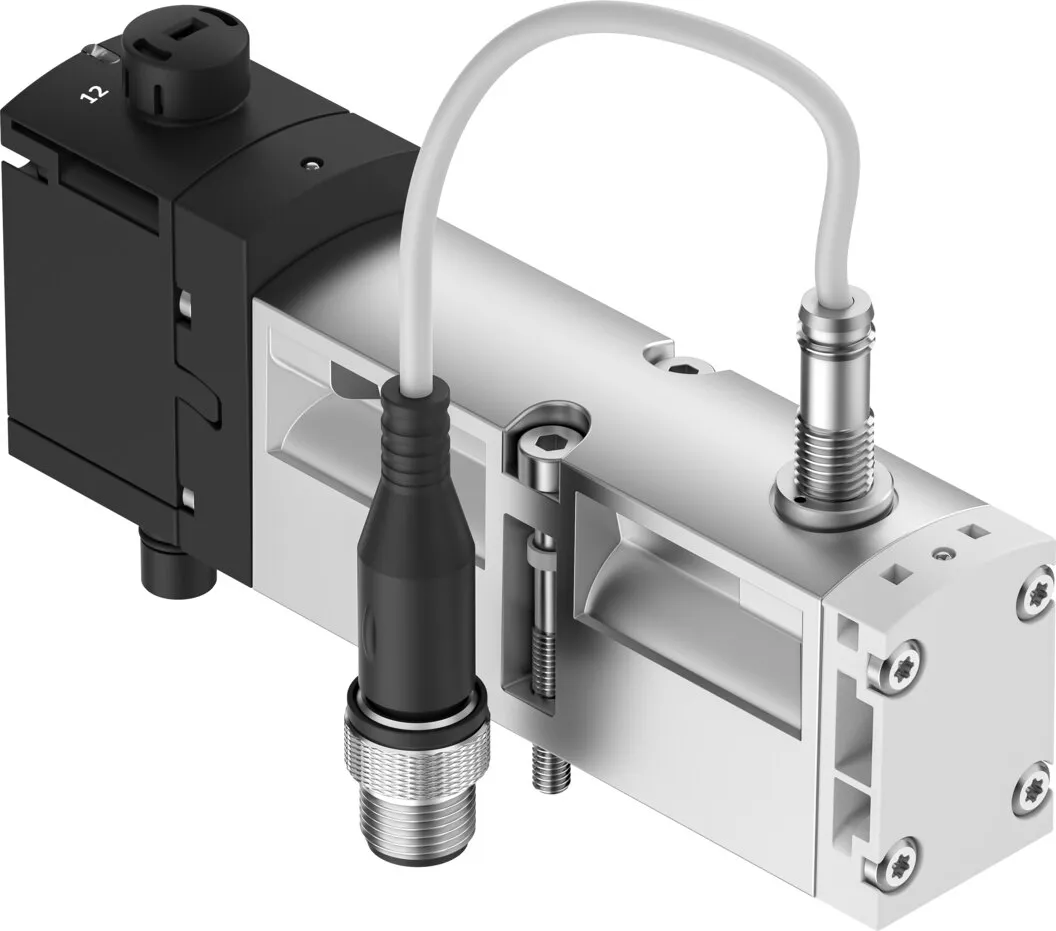

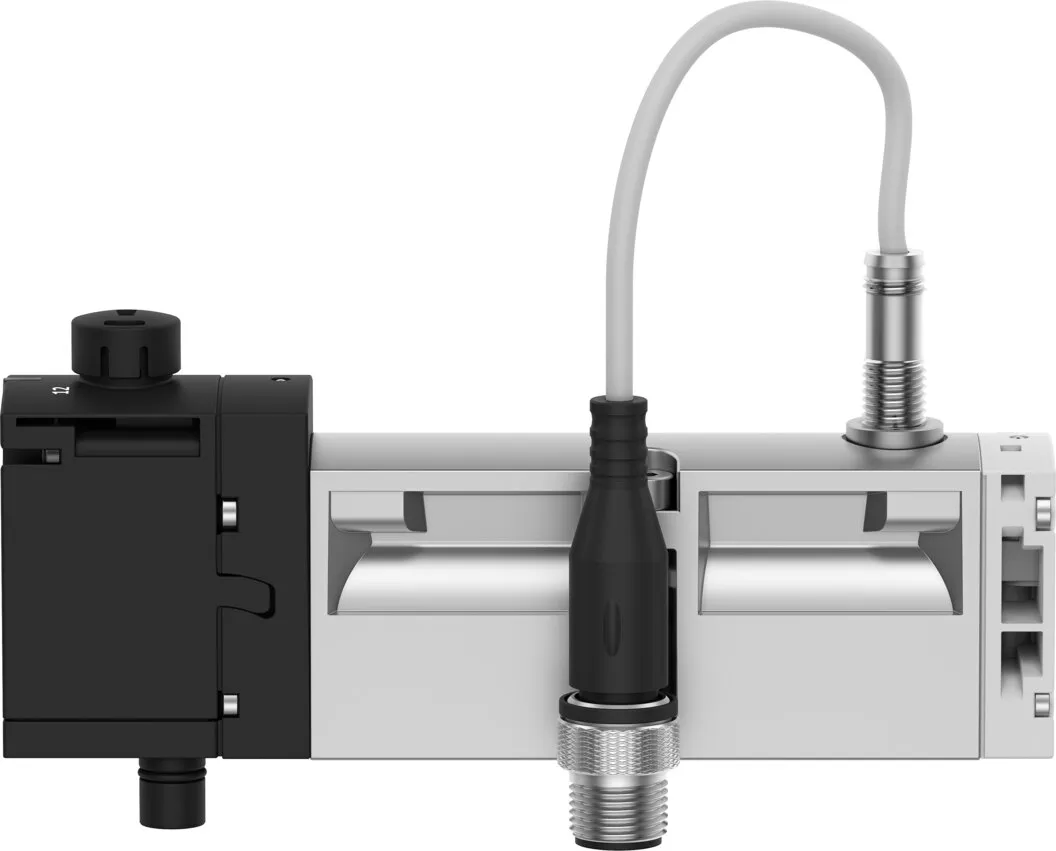

Festo VSVA-B-M52-MZH-A1-1T1L-APX-0.5
For valve terminal VTSA/VTSA-F , Robust metal housing
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For valve terminal VTSA/VTSA-F , Robust metal housing
Specification
| Valve Function |
5/2-way, monostable |
|---|---|
| Type Of Actuation |
Electric |
| Construction Width |
26 mm |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
1100 l/min |
| Pneumatic Working Port |
Sub-base size 26 mm to ISO 15407-2, G1/4 |
| Operating Pressure |
-0.9, 10 bar |
| Design |
Piston gate valve |
| Type Of Reset |
Mechanical spring |
| Kc Mark |
KC-EMV |
| Ce Mark (See Declaration Of Conformity) |
To EU EMC Directive |
| Degree Of Protection |
IP65, NEMA 4 |
| Nominal Size |
9 mm |
| Exhaust Air Function |
With flow control option, Via throttle plate, Via individual sub-base |
| Sealing Principle |
Soft |
| Mounting Position |
optional |
| Manual Override |
Non-detenting |
| Type Of Piloting |
Pilot actuated |
| Pilot Air Supply |
External |
| Flow Direction |
optional |

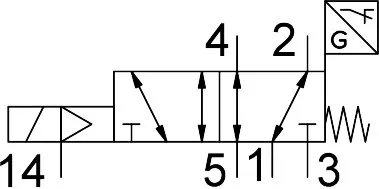

| Symbol |
00997391 |
| Measuring Principle |
Inductive |
| Lap |
Overlap |
| Reverse Polarity Protection Sensor |
For all electrical connections |
| Signal Status Display |
LED |
| Switching Position Sensing |
Normal position via sensor |
| Switching Status Display Sensor |
LED |
| Pilot Pressure |
3, 10 bar |
| Flow Rate Of Valve |
1400 l/min |
| Flow Rate Of Valve On Individual Sub Base |
1200 l/min |
| Valve Flow Rate, Pneumatically Linked, Flow Optimized |
1350 l/min |
| Flow Rate Of Pneumatically Interlinked Valve |
1100 l/min |
| Switching Time Off |
54 ms |
| Switching Time On |
20 ms |
| Valve Sensor Switching Time On |
60 ms |
| Valve Sensor Switching Time Off |
11 ms |
| Duty Cycle |
100% |
| Max. Positive Test Pulse With Signal |
1200 µs |
| Max. Negative Test Pulse With 1 Signal |
1100 µs |
| Nominal Operating Voltage Dc |
24 V |
| Switching Output |
PNP |
| Characteristic Coil Data |
24 V DC: 1.6 W |
| Immunity To Surge |
2.5 kV |
| Pollution Degree |
3 |
| Permissible Voltage Fluctuations |
+/- 10 % |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration Resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock Resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Media Temperature |
-5, 50 °C |
| Relative Air Humidity |
0 – 90% |
| Sound Pressure Level |
85 dB(A) |
| Ambient Temperature |
-5, 50 °C |
| Max. Tightening Torque For Valve Mounting |
1.8, 2.2 Nm |
| Product Weight |
281 g |
| Operating Voltage Range, Dc Sensor |
10, 30 V |
| Short Circuit Strength Sensor |
Pulsed |
| Idle Current Sensor |
10 mA |
| Max. Output Current Sensor |
200 mA |
| Max. Switching Frequency Sensor |
5000 Hz |
| Residual Ripple Sensor |
± 10% |
| Voltage Drop Sensor |
2 V |
| Electrical Connection |
4-pin, Plugs, To ISO 15407-2 |
| Sensor Connection |
Plug, Cable, 4-pin, M12x1, 0.5 m |
| Type Of Mounting |
On sub-base |
| Pilot Air Port 12/14 |
Sub-base size 26 mm to ISO 15407-2 |
| Pilot Exhaust Port 82/84 |
Ducted, Not ducted, Either: |
| Pneumatic Connection, Port 1 |
Sub-base size 26 mm to ISO 15407-2 |
| Pneumatic Connection, Port 2 |
Sub-base size 26 mm to ISO 15407-2 |
| Pneumatic Connection, Port 3 |
Sub-base size 26 mm to ISO 15407-2 |
| Pneumatic Connection, Port 4 |
Sub-base size 26 mm to ISO 15407-2 |
| Pneumatic Connection, Port 5 |
Sub-base size 26 mm to ISO 15407-2 |
| Note On Materials |
RoHS-compliant |
| Material Seals |
FPM, NBR |
| Material Housing |
Die-cast aluminium, PA |
| Material Screws |
Galvanised steel |
| Switching Element Function |
N/C contact |
