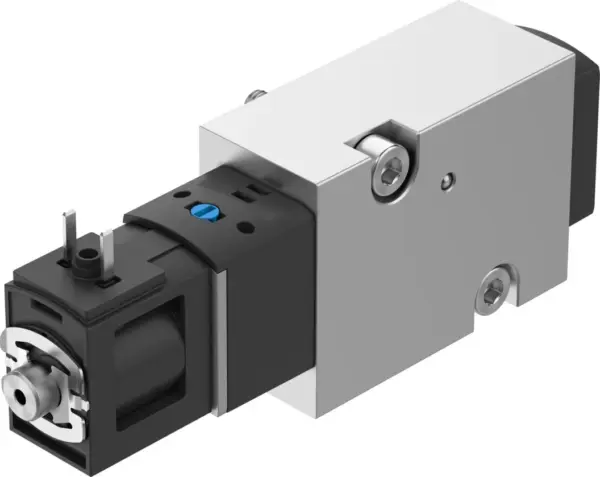

Festo VSNC-FKA-M32C-RD-G18-1C1-S
Namur connection pattern to VDI/VDE 3845 , Compact, cost-effective, powerful , Especially suitable for rotary actuators DAPS and DFPD with connection pattern according to VDI/VDE 3845 , Extended tempe…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Namur connection pattern to VDI/VDE 3845 , Compact, cost-effective, powerful , Especially suitable for rotary actuators DAPS and DFPD with connection pattern according to VDI/VDE 3845 , Extended temperature range , Electrical connection with plug pattern type form C, according to EN 175301-803 , Solenoid coil 24 V integrated , Excellent value for money
Specification
| Valve Function | Connections swapped |
|---|---|
| Type Of Actuation | Electric |
| Construction Width | 25.5 mm |
| Standard Nominal Flow Rate (Standardised To Din 1343) | 400 l/min |

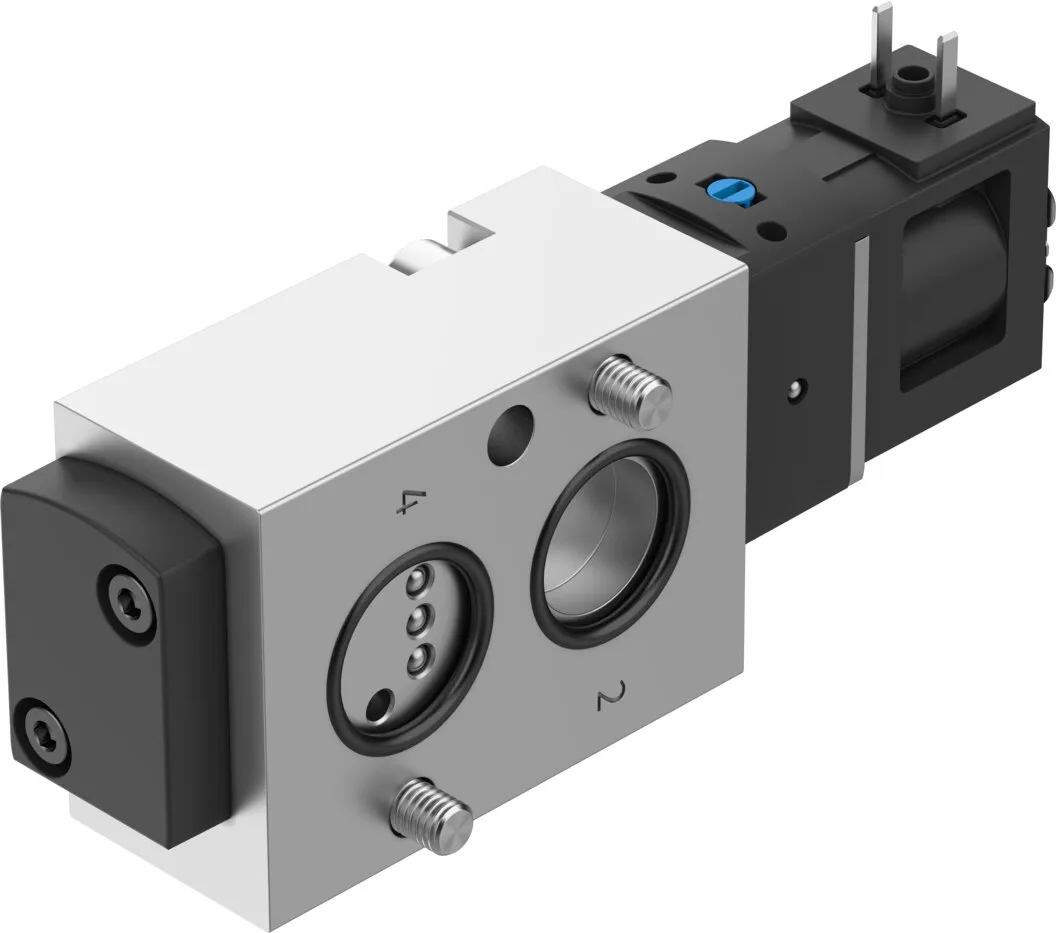

| Pneumatic Working Port | NAMUR port pattern |
| Operating Voltage | 24V DC |
| Operating Pressure | 2.5, 8 bar |
| Design | Piston slide with sealing ring |
| Type Of Reset | Mechanical spring, Pneumatic spring |
| Degree Of Protection | IP65 |
| Exhaust Air Function | With flow control option |
| Sealing Principle | Soft |
| Mounting Position | optional |
| Conforms To Standard | VDI/VDE 3845 (NAMUR) |
| Manual Override | Detenting |
| Type Of Piloting | Pilot actuated |
| Pilot Air Supply | Internal |
| Flow Direction | Non-reversible |

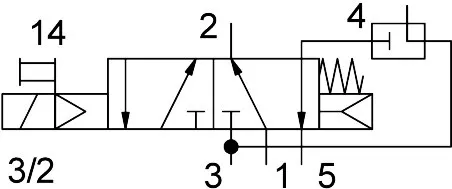

| Symbol | 00997365 |
| Lap | Overlap |
| B Value | 0.3 |
| C Value | 2.1 l/sbar |
| Standard Nominal Flow Rate, Exhaust Return 4 >3 | 100 l/min |
| Switching Time Off | 50 ms |
| Switching Time On | 50 ms |
| Duty Cycle | 100% |
| Characteristic Coil Data | 24 V DC: 2.4 W |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc | 1 – Low corrosion stress |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Storage Temperature | -20, 60 °C |
| Media Temperature | -20, 50 °C |
| Ambient Temperature | -20, 50 °C |
| Product Weight | 220 g |
| Electrical Connection | Type C |
| Type Of Mounting | With through-hole |
| Breather Connection | Not ducted |
| Pneumatic Connection, Port 1 | G1/8 |
| Pneumatic Connection, Port 2 | NAMUR port pattern |
| Pneumatic Connection, Port 3 | G1/8 |
| Pneumatic Connection, Port 4 | NAMUR port pattern |
| Pneumatic Connection, Port 5 | G1/8 |
| Note On Materials | RoHS-compliant |
| Material Cover | PA-reinforced |
| Material Seals | NBR |
| Material Housing | Wrought aluminium alloy |
| Manual Override Material | PA-reinforced |
| Material Piston | Wrought aluminium alloy |
| Material Screws | High-alloy stainless steel |
