Festo VOFD-L50T-M32-MN-FGP14-10-F10
Suitable for process automation in the chemical and petrochemical industries , Suitable for outdoor use under harsh ambient conditions , Especially suitable for quarter turn actuators thanks to NAMUR…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Suitable for process automation in the chemical and petrochemical industries , Suitable for outdoor use under harsh ambient conditions , Especially suitable for quarter turn actuators thanks to NAMUR flange pattern , Variants with safety functions , Variants to EU Explosion Protection Directive (ATEX)
Specification
| Valve Function | 3/2-way, closed, monostable |
|---|---|
| Type Of Actuation | Electric |
| Construction Width | 50.5 mm |
| Standard Nominal Flow Rate (Standardised To Din 1343) | 493 l/min |
| Pneumatic Working Port | Flange 1/4, NAMUR port pattern |
| Operating Pressure | 145 psi |
| Design | Directly actuated poppet valve |
| Type Of Reset | Mechanical spring |
| Degree Of Protection | IP65 |
| Certificate Issuing Authority | TÜV 968/V 1251.02/24 |
| Nominal Size | 5 mm |
| Sealing Principle | Soft |
| Mounting Position | optional |
| Manual Override | None |
| Type Of Piloting | Direct |
| Flow Direction | Reversible |

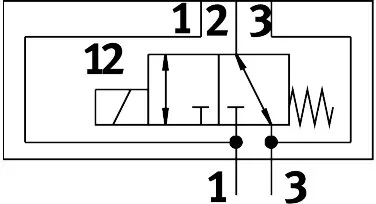

| Symbol | 00995226 |
| Safety Function | Safe venting |
| Safety Integrity Level (Sil) | Up to SIL 3 High Demand mode, To SIL 3 Low Demand mode |
| Suitability For Vacuum | yes |
| B Value | 0.25 |
| C Value | 2 l/sbar |
| Flow Rate Kv Pressurisation | 0.36 m³/h |
| Flow Rate Kv Exhaust | 0.36 m³/h |
| Standard Nominal Flow Rate 2 3 | 429 l/min |
| Switching Time Off | 60 ms |
| Switching Time On | 40 ms |
| Explosion Protection | Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:2:2] |
| Extended Ambient Temperature | -25 … 60° C, Low demand mode |
| Corrosion Resistance Class Crc | 4 – Very high corrosion stress |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Media Temperature | -25, 60 °C |
| Ambient Temperature | -25, 60 °C |
| Product Weight | 560 g |
| Pneumatic Connection, Port 1 | M5, NAMUR port pattern |
| Pneumatic Connection, Port 2 | Flange 1/4, NAMUR port pattern |
| Pneumatic Connection, Port 3 | G1/4 |
| Note On Materials | RoHS-compliant |
| Material Seals | NBR |
| Material Housing | Ematal coated aluminium |
