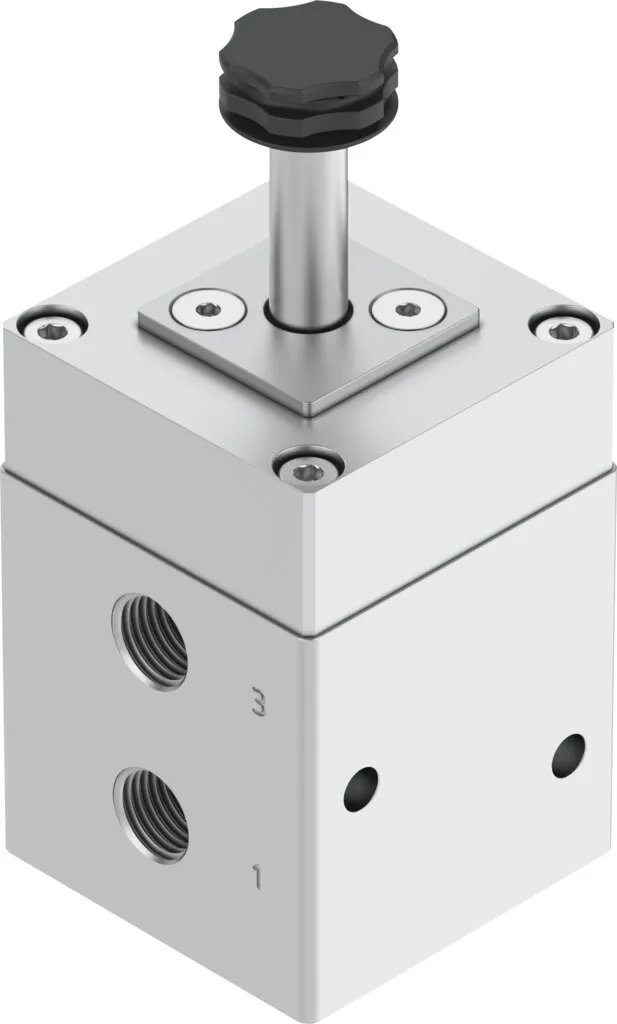

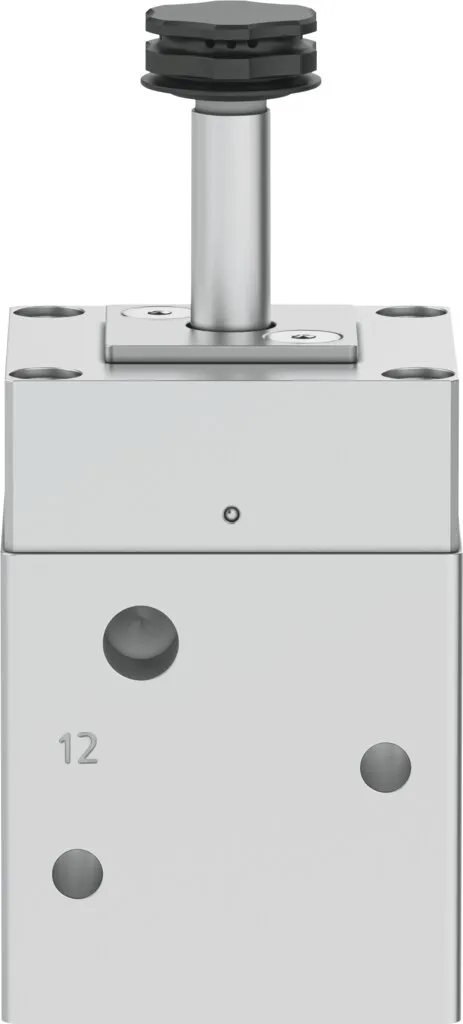

Festo VOFC-LT-M32C-MC-N14-FN
Suitable for process automation in the chemical and petrochemical industries , Suitable for outdoor use under harsh ambient conditions , Especially suitable for quarter turn actuators thanks to NAMUR…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Suitable for process automation in the chemical and petrochemical industries , Suitable for outdoor use under harsh ambient conditions , Especially suitable for quarter turn actuators thanks to NAMUR flange pattern , Valve can switch between internal and external pilot air , Variants with safety functions , Variants to EU Explosion Protection Directive (ATEX)
Specification
| Standard Nominal Flow Rate (Standardised To Din 1343) |
703 l/min |
|---|---|
| Operating Pressure |
14.5, 116 psi |
| Degree Of Protection |
IP65 |
| Certificate Issuing Authority |
TÜV 968/V 1251.00/24 |
| Symbol |
00992275 |
| Safety Function |
Safe venting |
| Safety Integrity Level (Sil) |
Up to SIL 3 High Demand mode, To SIL 3 Low Demand mode |
| Note On Operating Pressure |
0 – 0.8 MPa with ext. pilot air |
| Explosion Protection |
Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Corrosion Resistance Class Crc |
4 – Very high corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Note On Materials |
RoHS-compliant |
