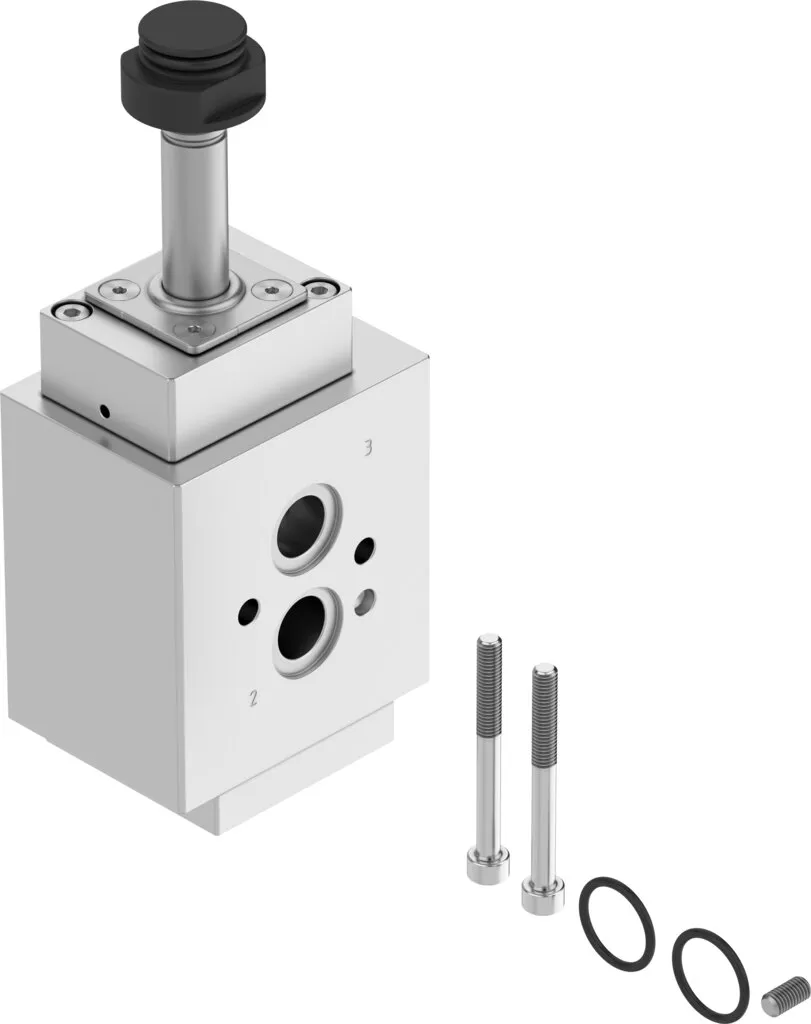

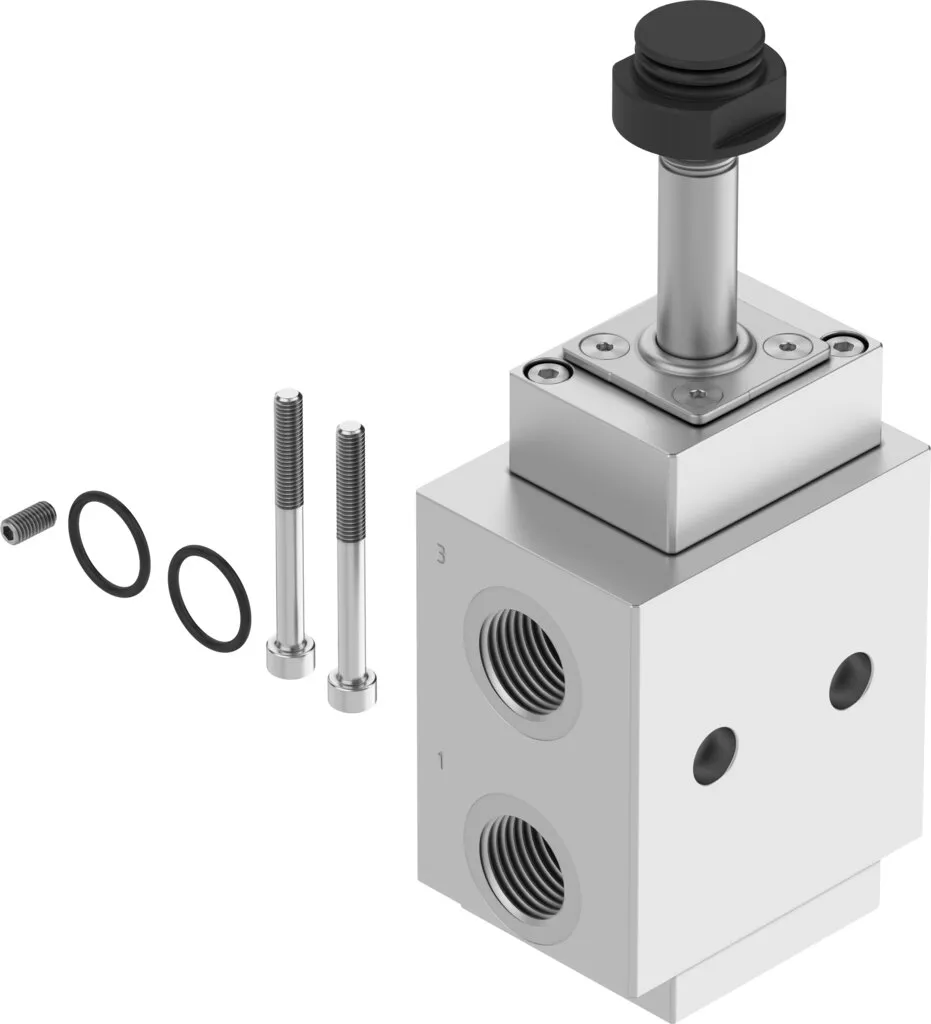

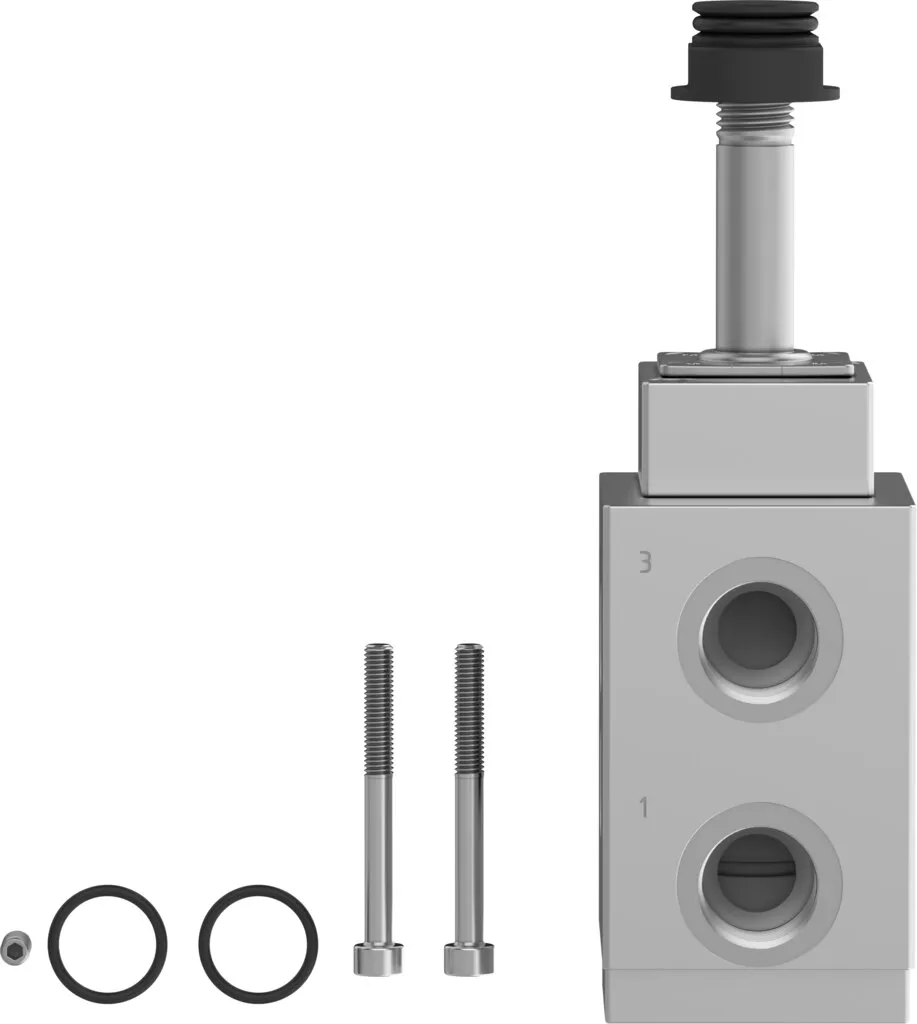

Festo VOFC-LT-M32C-M-FG12-F19A
Suitable for process automation in the chemical and petrochemical industries , Suitable for outdoor use under harsh ambient conditions , Especially suitable for quarter turn actuators thanks to NAMUR…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Suitable for process automation in the chemical and petrochemical industries , Suitable for outdoor use under harsh ambient conditions , Especially suitable for quarter turn actuators thanks to NAMUR flange pattern , Valve can switch between internal and external pilot air , Variants with safety functions , Variants to EU Explosion Protection Directive (ATEX)
Specification
| Valve Function |
3/2-way, closed, monostable |
|---|---|
| Type Of Actuation |
Electric |
| Construction Width |
51 mm |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
2162 l/min |
| Pneumatic Working Port |
Sub-base, G1/2 |
| Operating Pressure |
29, 116 psi |
| Design |
Piloted piston poppet valve |
| Type Of Reset |
Mechanical spring |
| Degree Of Protection |
IP65 |
| Certificate Issuing Authority |
TÜV 968/V 1251.00/24 |
| Nominal Size |
12 mm |
| Sealing Principle |
Hard |
| Mounting Position |
optional |
| Manual Override |
None |
| Type Of Piloting |
Pilot actuated |
| Pilot Air Supply |
Internal |
| Flow Direction |
Non-reversible |
| Symbol |
00995568 |
| Safety Function |
Safe venting |
| Safety Integrity Level (Sil) |
Up to SIL 3 High Demand mode, To SIL 3 Low Demand mode |
| Flow Rate Kv Pressurisation |
1.98 m³/h |
| Flow Rate Kv Exhaust |
3.86 m³/h |
| Standard Nominal Flow Rate 2 3 |
4224 l/min |
| Switching Time Off |
14 ms |
| Switching Time On |
25 ms |
| Explosion Protection |
Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:2:2] |
| Corrosion Resistance Class Crc |
4 – Very high corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Media Temperature |
-25, 60 °C |
| Ambient Temperature |
-25, 60 °C |
| Product Weight |
880 g |
| Pneumatic Connection, Port 1 |
G1/2 |
| Pneumatic Connection, Port 2 |
Flange 1/4, NAMUR port pattern |
| Pneumatic Connection, Port 3 |
G1/2 |
| Note On Materials |
RoHS-compliant |
| Material Seals |
NBR |
| Material Housing |
Ematal coated aluminium |
