Festo VMPAL-EPR-SP

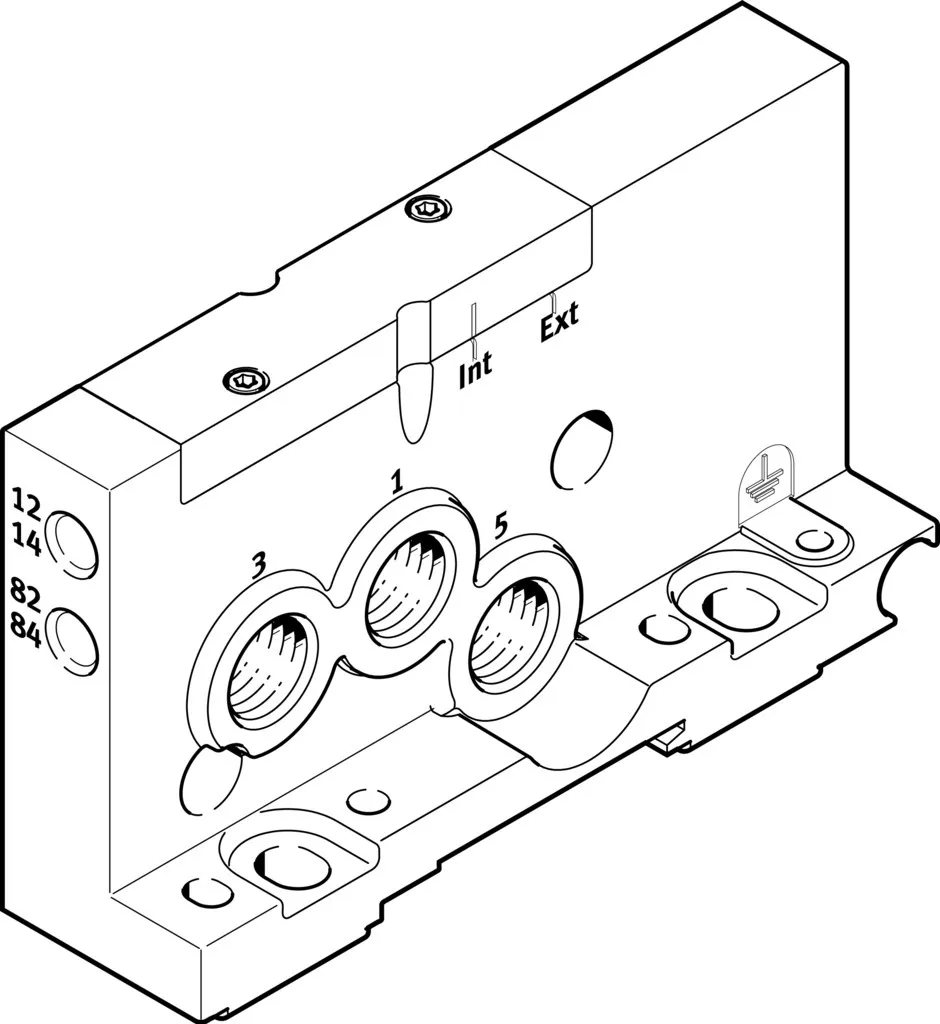

End plate-VMPAL-EPR-SP
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Width |
28.8 mm |
|---|---|
| Length |
107.3 mm |
| Integrated Function |
Pilot air selector for defining the pilot air supply (internal or external) |
| Flow Direction |
Reversible |
| Valve Terminal Structure |
Valve sizes can be mixed |
| Operating Pressure |
-0.9, 10 bar |
| Pilot Pressure |
3, 8 bar |
| Corrosion Resistance Class Crc |
3 – high corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Degree Of Protection |
IP65, IP67 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
-5, 50 °C |
| Product Weight |
180 g |
| Pilot Air Port 12/14 |
M7 |
| Pilot Exhaust Port 82/84 |
M7 |
| Pneumatic Connection, Port 1 |
G1/4 |
| Pneumatic Connection, Port 3 |
G1/4 |
| Pneumatic Connection, Port 5 |
G1/4 |
| Note On Materials |
RoHS-compliant |
| Material End Plate |
Die-cast aluminium, PA-reinforced |
