Festo VMPAL-EPL-IPO32

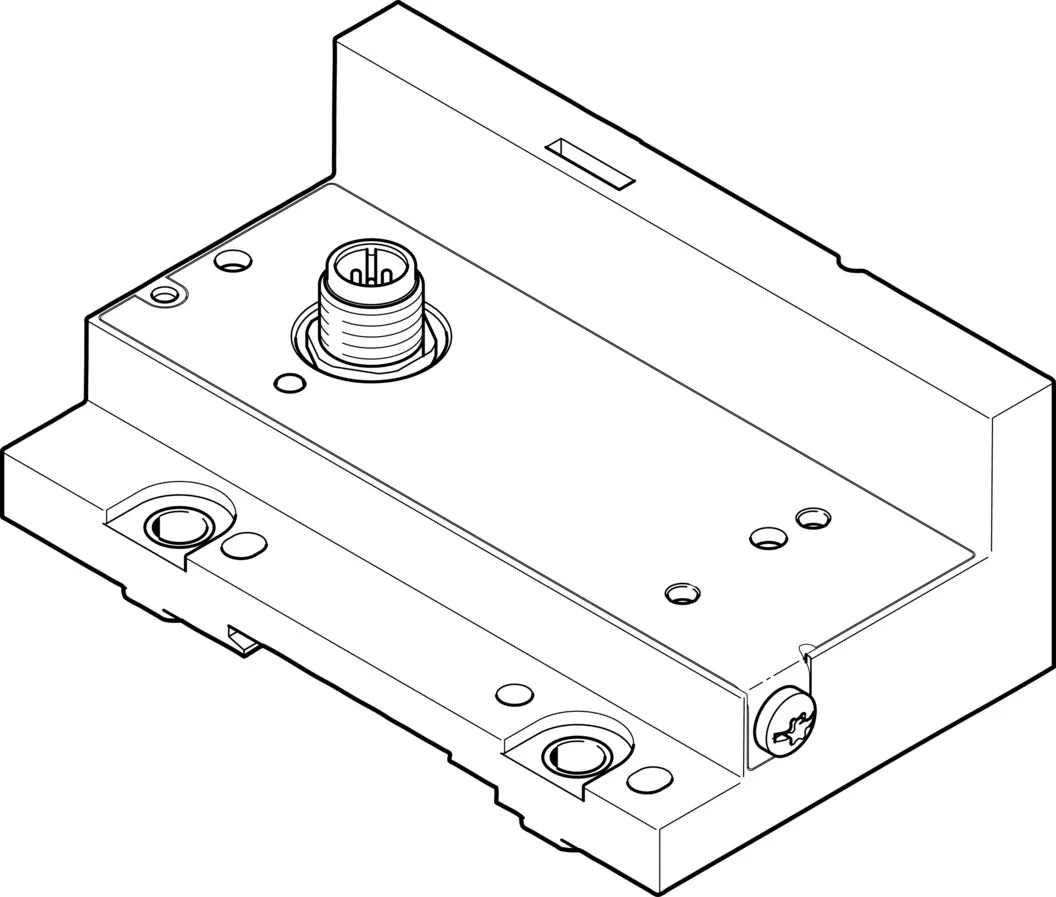

End plate-VMPAL-EPL-IPO32
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Width |
64.8 mm |
|---|---|
| Length |
107.3 mm |
| Reverse Polarity Protection |
For operating voltage |
| Mounting Position |
optional |
| Diagnosis |
Undervoltage of load supplies |
| Max. Number Of Valve Positions |
32 |
| Valve Terminal Structure |
Valve sizes can be mixed |
| Max. Number Of Valve Coils |
32 |
| Operating Pressure |
-0.9, 10 bar |
| Pilot Pressure |
3, 8 bar |
| Internal Current Consumption, Load Voltage |
30 mA |
| Internal Current Consumption, Operating Voltage |
30 mA |
| Nominal Operating Voltage Dc |
24 V |
| Protocol |
I-Port, IO-Link® |
| Corrosion Resistance Class Crc |
3 – high corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Storage Temperature |
-20, 40 °C |
| Degree Of Protection |
IP65, IP67 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
-5, 50 °C |
| Product Weight |
170 g |
| Io Link, Protocol Version |
Device V 1.0 |
| Io Link, Communication Mode |
COM2 (38.4 kBaud), COM3 (230.4 kBaud) |
| Io Link, Port Class |
B |
| Io Link, Number Of Ports |
1 |
| Io Link, Process Data Length Out |
1 – 4 bytes |
| Io Link, Min. Cycle Time |
Device 3.2 ms |
| Electrical Connection 1, Function |
IO-Link |
| Electrical Connection 1, Connection Type |
Plugs |
| Electrical Connection 1, Connector System |
M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 1, Number Of Connections/Cores |
5 |
| Electrical Connection 1, Connection Pattern |
00995383 |
| Led Display, Bus Specific |
1x communication status |
| Note On Materials |
RoHS-compliant |
| Material End Plate |
PPA reinforced |
