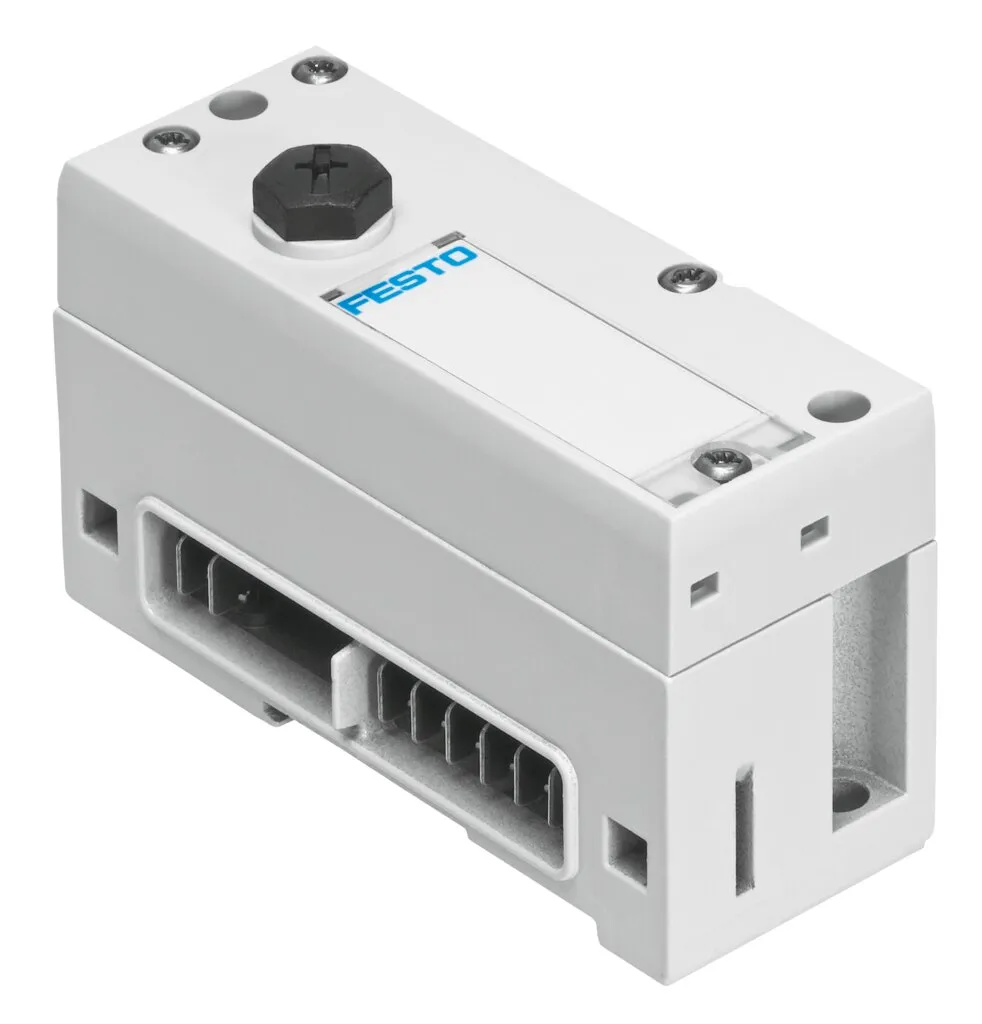

Festo VMPAL-EPL-CPX
End plate-VMPAL-EPL-CPX
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Width |
40 mm |
|---|---|
| Length |
107.3 mm |
| Max. Number Of Valve Positions |
32 |
| Valve Terminal Structure |
Valve sizes can be mixed |
| Max. Number Of Valve Coils |
32 |
| Operating Pressure |
-0.9, 10 bar |
| Pilot Pressure |
3, 8 bar |
| Nominal Operating Voltage Dc |
24 V |
| Corrosion Resistance Class Crc |
3 – high corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Degree Of Protection |
IP67 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
-5, 50 °C |
| Product Weight |
130 g |
| Electrical Connection 1, Function |
Fieldbus |
| Electrical Connection 1, Connection Type |
Plugs |
| Electrical Connection 1, Connector System |
Internal for CPX |
| Note On Materials |
RoHS-compliant |
| Material End Plate |
Die-cast aluminium, PA-reinforced |
