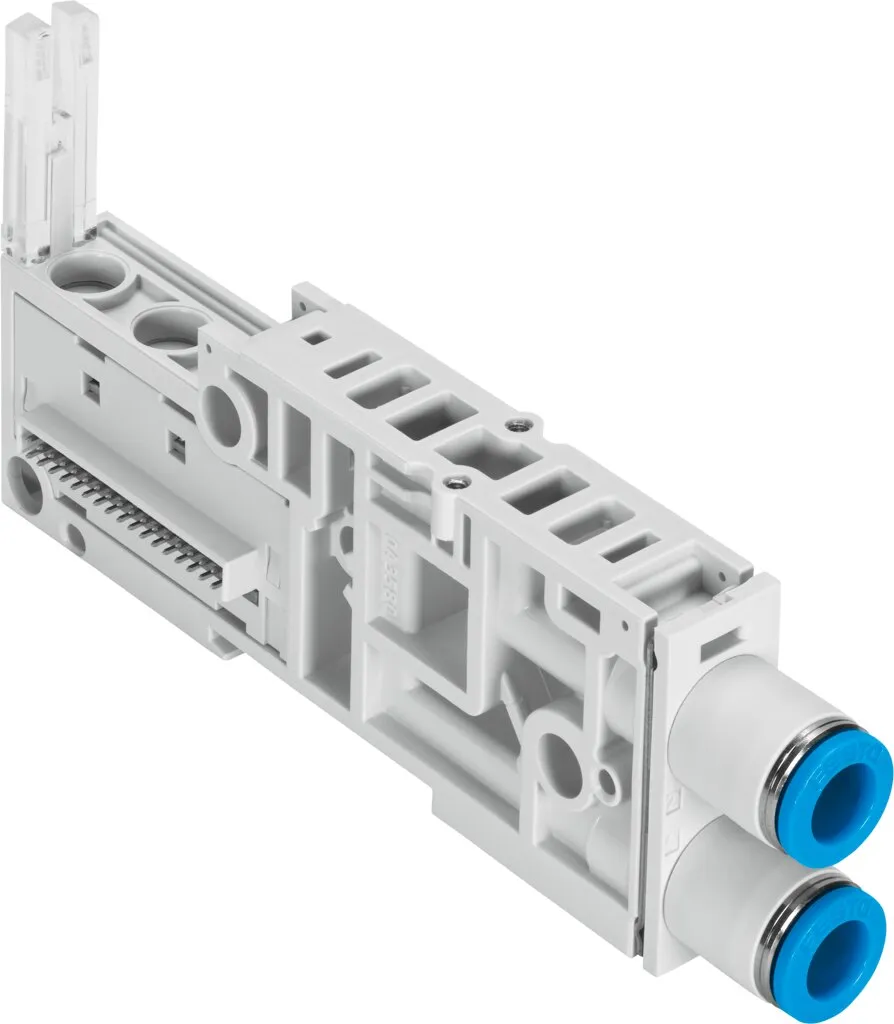

Festo VMPAL-AP-4X14-QS1/4″-2
Sub-base-VMPAL-AP-4X14-QS1/4″-2
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Width |
59.6 mm |
|---|---|
| Length |
107.3 mm |
| Grid Dimension |
14.9 mm |
| Valve Size |
14 mm |
| Max. Number Of Valve Positions |
4 |
| Flow Direction |
Reversible |
| Valve Terminal Structure |
Valve sizes can be mixed |
| Max. Number Of Valve Coils |
8 |
| Operating Pressure |
-0.9, 10 bar |
| Pilot Pressure |
3, 8 bar |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
3 – high corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Ambient Temperature |
-5, 50 °C |
| Product Weight |
130.8 g |
| Pneumatic Connection, Port 2 |
For tubing outside diameter of 1/4" |
| Pneumatic Connection, Port 4 |
For tubing O.D. 1/4" |
| Note On Materials |
RoHS-compliant |
| Material Sub Base |
PA-reinforced |
