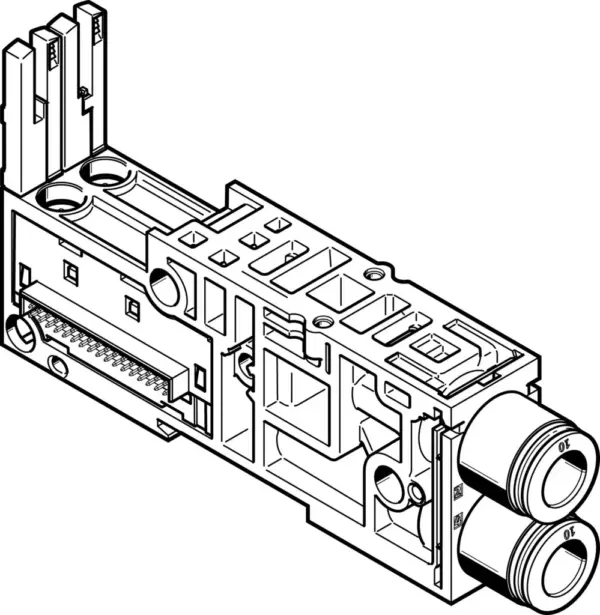

Festo VMPAL-AP-20-QS8-2-T1
Sub-base-VMPAL-AP-20-QS8-2-T1
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Width | 21.2 mm |
|---|---|
| Length | 107.3 mm |
| Grid Dimension | 21.2 mm |
| Valve Size | 20 mm |
| Pressure Zone Division | Duct 1 |
| Max. Number Of Valve Positions | 1 |
| Flow Direction | Reversible |
| Valve Terminal Structure | Valve sizes can be mixed |
| Max. Number Of Valve Coils | 2 |
| Operating Pressure | -0.9, 10 bar |
| Pilot Pressure | 3, 8 bar |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc | 3 – high corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Ambient Temperature | -5, 50 °C |
| Product Weight | 76.88 g |
| Pneumatic Connection, Port 2 | For tubing outside diameter of 8 mm |
| Pneumatic Connection, Port 4 | For tubing O.D. 8 mm |
| Note On Materials | RoHS-compliant |
| Material Sub Base | PA-reinforced |
