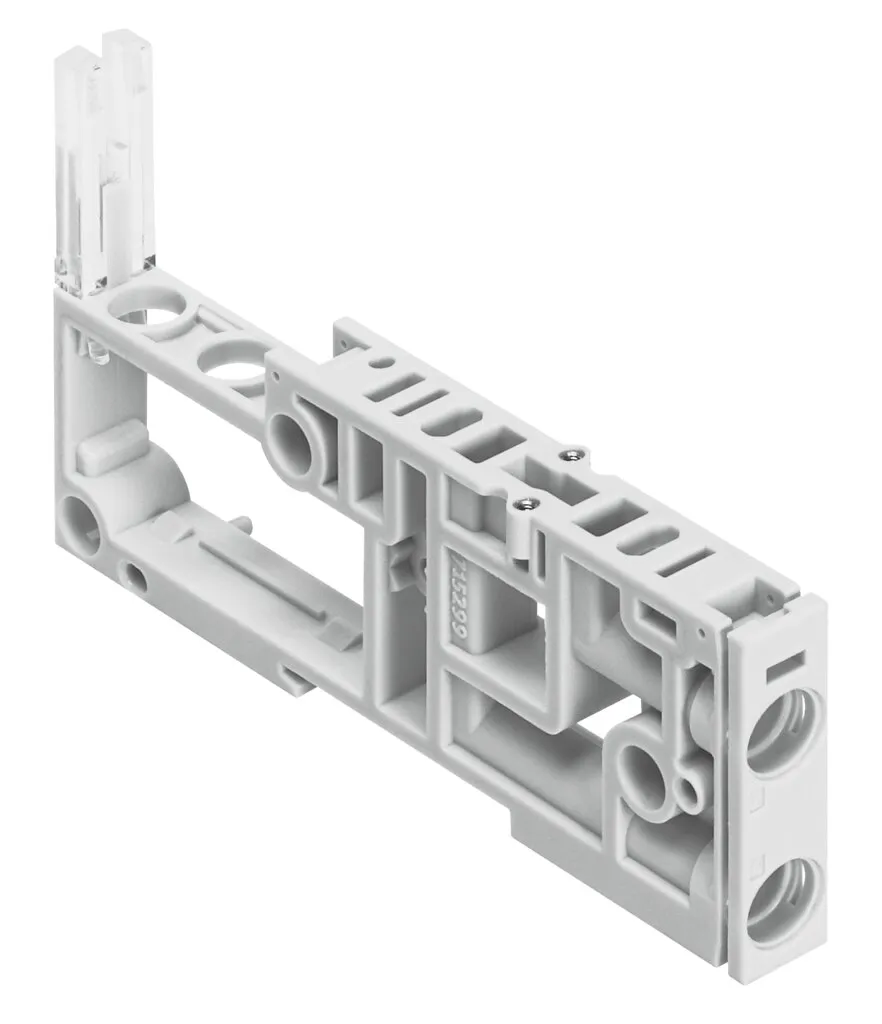

Festo VMPAL-AP-10-T135-RV
Sub-base-VMPAL-AP-10-T135-RV
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Construction Width |
10 mm |
|---|---|
| Width |
10.7 mm |
| Length |
107.3 mm |
| Grid Dimension |
10.7 mm |
| Pressure Zone Division |
Ducts 1, 3 and 5 |
| Integrated Function |
Check valve |
| Max. Number Of Valve Positions |
1 |
| Flow Direction |
Non-reversible |
| Valve Terminal Structure |
Valve sizes can be mixed |
| Operating Pressure |
-0.9, 10 bar |
| Pilot Pressure |
3, 8 bar |
| Suitability For Vacuum |
no |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
3 – high corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Ambient Temperature |
-5, 50 °C |
| Product Weight |
25 g |
| Pneumatic Connection, Port 2 |
For 10 mm cartridge |
| Pneumatic Connection, Port 4 |
For 10 mm cartridge |
| Note On Materials |
RoHS-compliant |
| Material Sub Base |
PA-reinforced |
