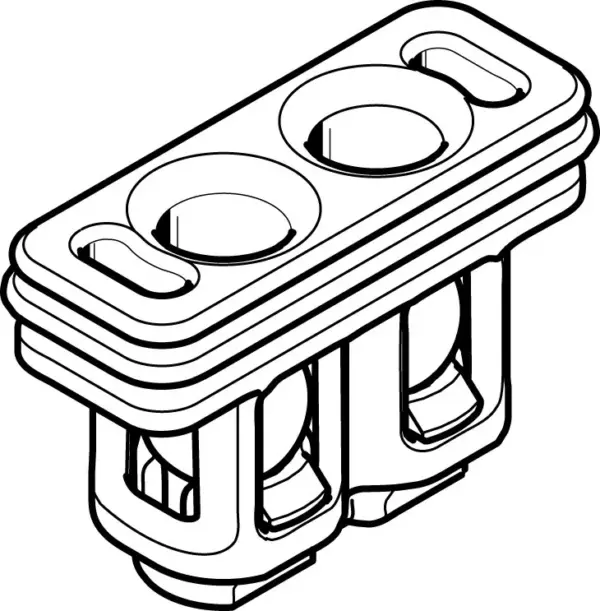

Festo VMPA2-RV
Check valve-VMPA2-RV
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Valve Function |
Piloted non-return function |
|---|---|
| Type Of Actuation |
Pneumatic |
| Type Of Mounting |
Clip |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
330 l/min |
| Operating Pressure |
0.5, 8 bar |
| Pilot Pressure |
7.25, 116 psi |
| Ambient Temperature |
-5, 50 °C |
| Material Housing |
POM |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Mounting Position |
optional |
| Type Act., Cont. N. R. Func. |
Pneumatic |
| Operating Pressure Complete Temperature Range |
0.5, 8 bar |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
4 – Very high corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Storage Temperature |
-20, 40 °C |
| Media Temperature |
-5, 50 °C |
| Pilot Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Product Weight |
0.19 g |
| Note On Materials |
RoHS-compliant |
| Material Seals |
NBR |
