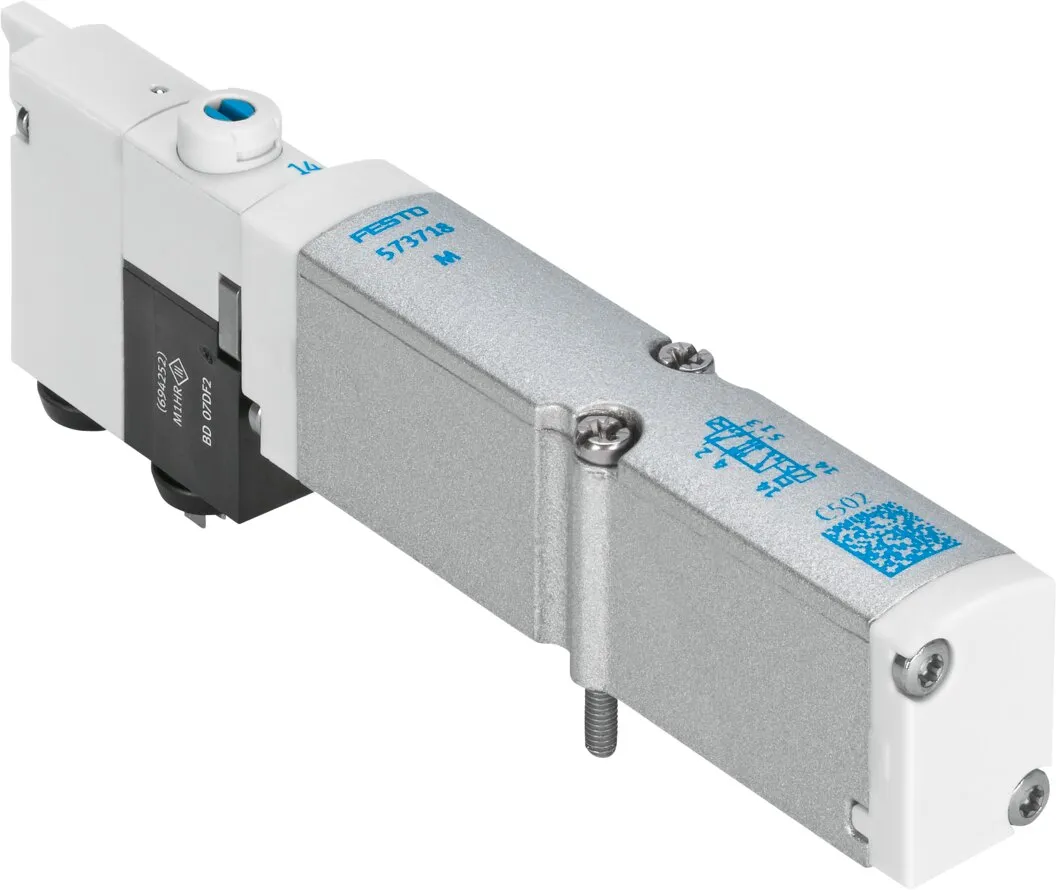

Festo VMPA14-M1H-NS-PI
For valve terminal MPA , As individual valve mounted on sub-base , Comprehensive range of valves
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For valve terminal MPA , As individual valve mounted on sub-base , Comprehensive range of valves
Specification
| Valve Function |
2×3/2-way, open, monostable |
|---|---|
| Type Of Actuation |
Electric |
| Valve Size |
14 mm |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
470, 520 l/min |
| Operating Voltage |
24V DC |
| Operating Pressure |
-0.9, 8 bar |
| Design |
Piston gate valve |
| Type Of Reset |
Mechanical spring |
| Approval |
c UL us – Recognized (OL) |
| Degree Of Protection |
IP65, To IEC 60529 |
| Sealing Principle |
Soft |
| Mounting Position |
optional |
| Manual Override |
Detenting, Non-detenting |
| Type Of Piloting |
Pilot actuated |
| Flow Direction |
Reversible |

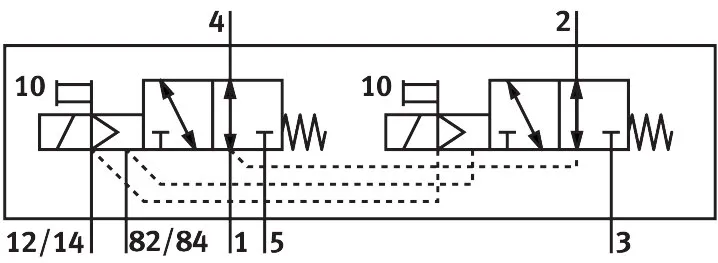

| Symbol |
00992875 |
| Lap |
Overlap |
| Signal Status Display |
yes |
| Pilot Pressure |
4, 8 bar |
| Suitability For Vacuum |
yes |
| Note On Standard Nominal Flow Rate |
MPA-L: 520 l/min, MPA-S: 470 l/min |
| Standard Nominal Flow Rate With Qs 8 |
470, 520 l/min |
| Switching Time Off |
20 ms |
| Switching Time On |
12 ms |
| Max. Positive Test Pulse With Signal |
400 µs |
| Max. Negative Test Pulse With 1 Signal |
200 µs |
| Permissible Voltage Fluctuations |
+/- 25% |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration Resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock Resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Storage Temperature |
-20, 40 °C |
| Media Temperature |
-5, 50 °C |
| Relative Air Humidity |
Max. 90% at 40°C |
| Ambient Temperature |
-5, 50 °C |
| Max. Tightening Torque For Valve Mounting |
0.25 Nm |
| Product Weight |
77 g |
| Type Of Mounting |
With through-hole |
| Note On Materials |
RoHS-compliant |
| Material Seals |
NBR |
| Material Housing |
Die-cast aluminium |
