Festo VMPA14-FB-EMS-D2-8

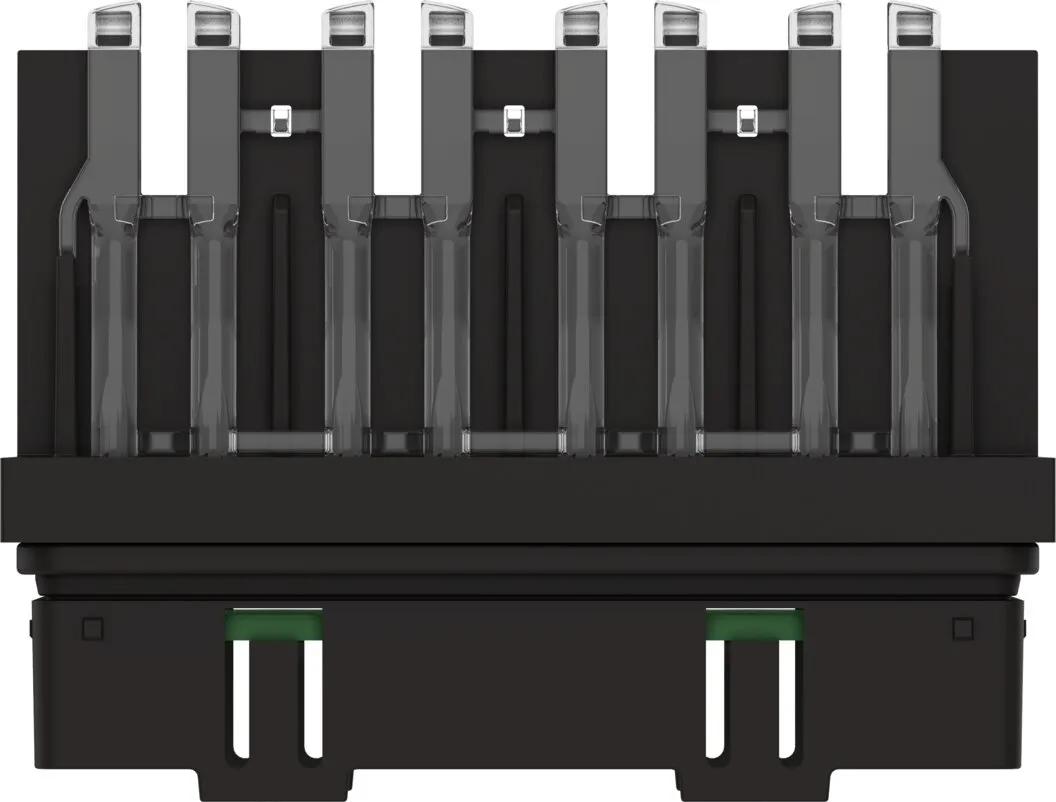

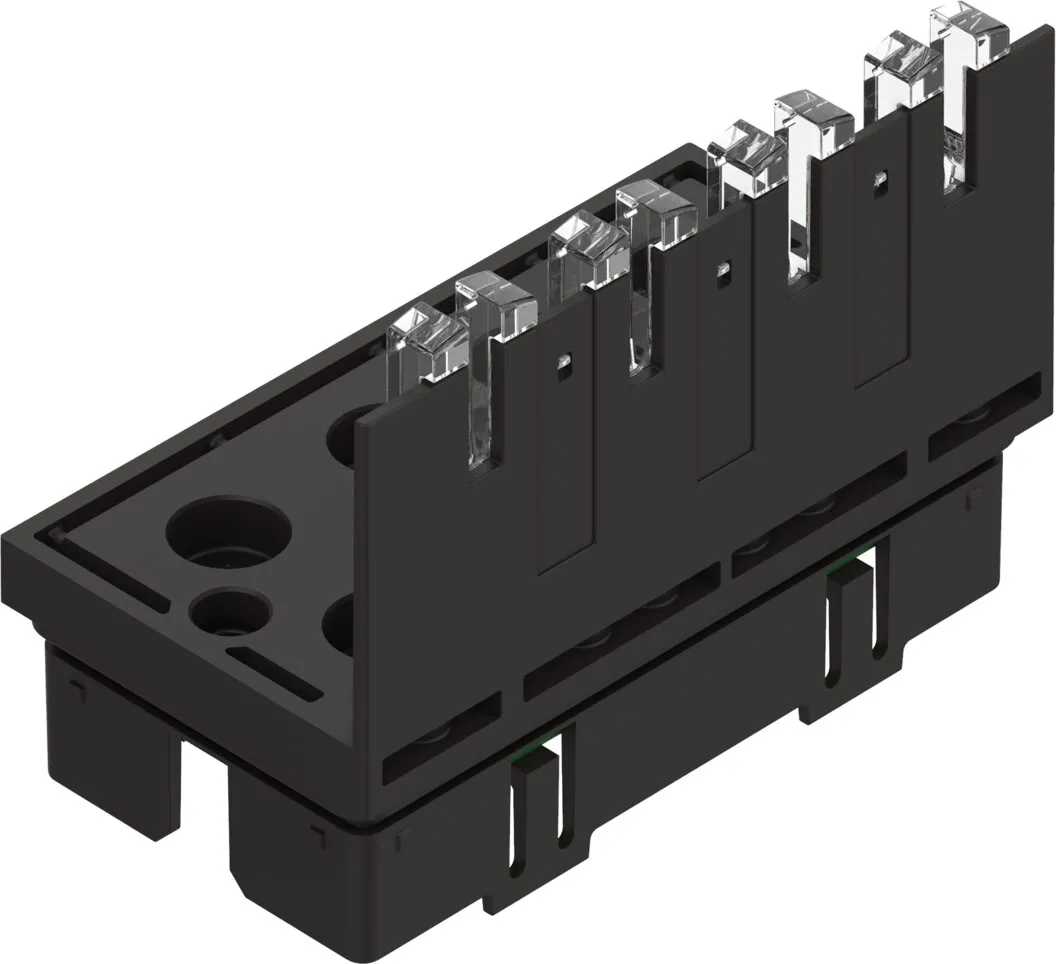

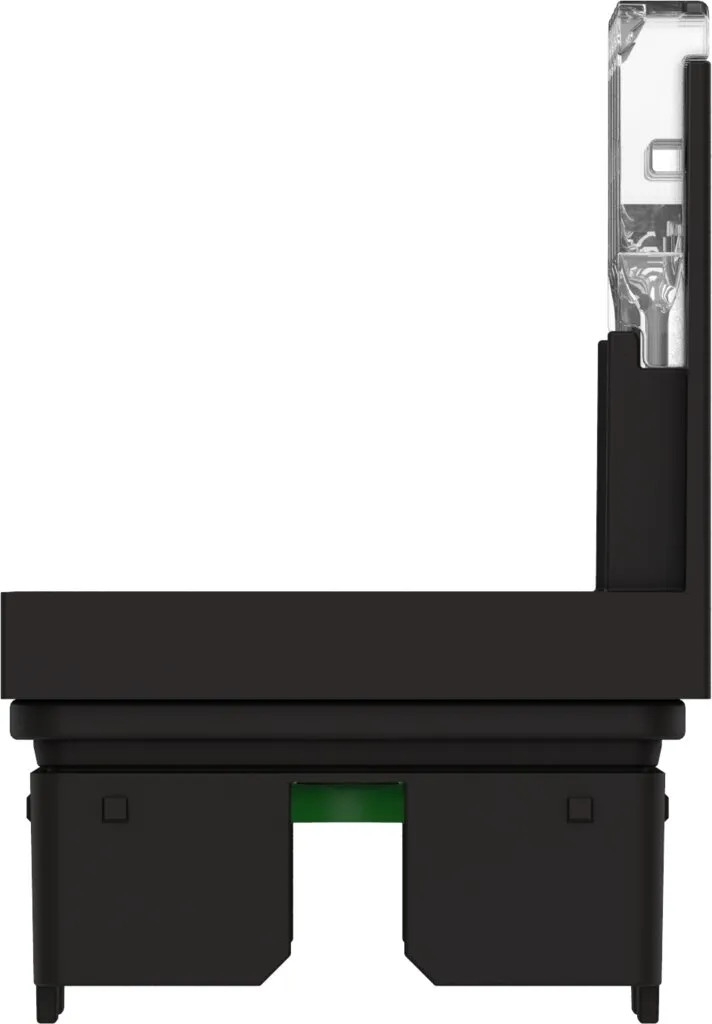

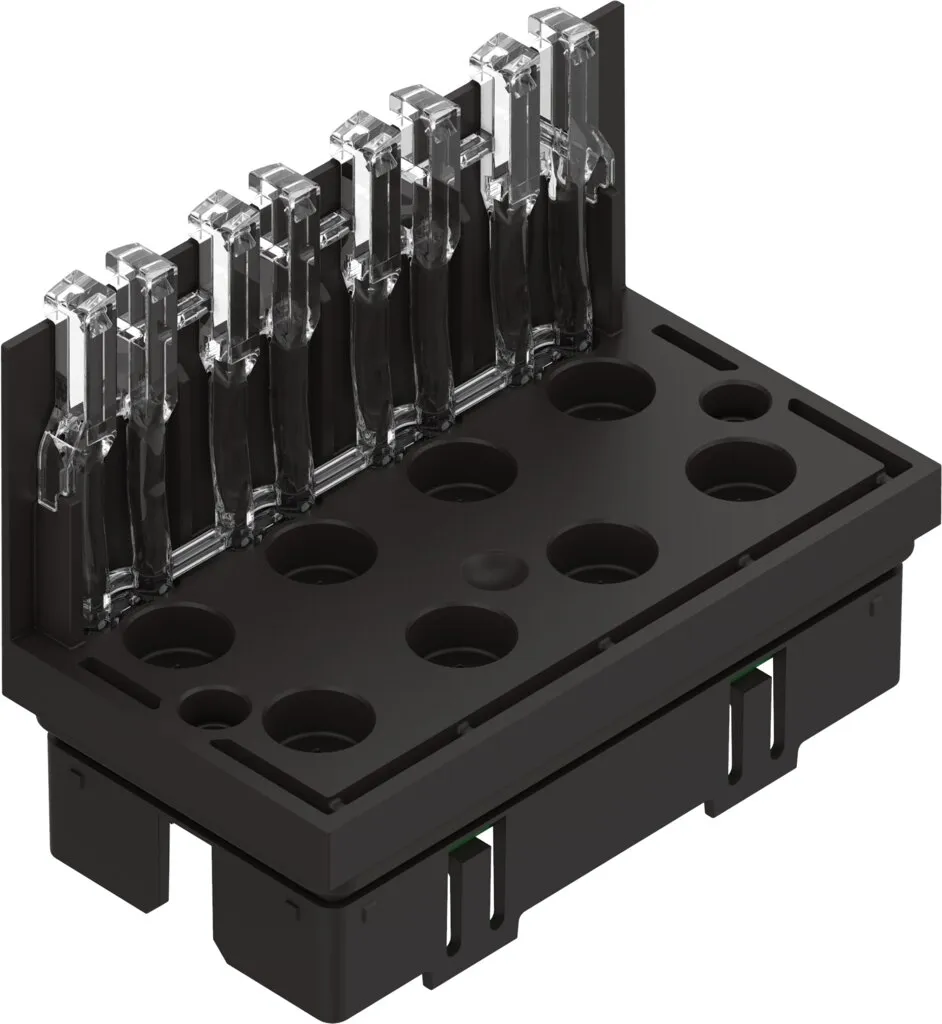

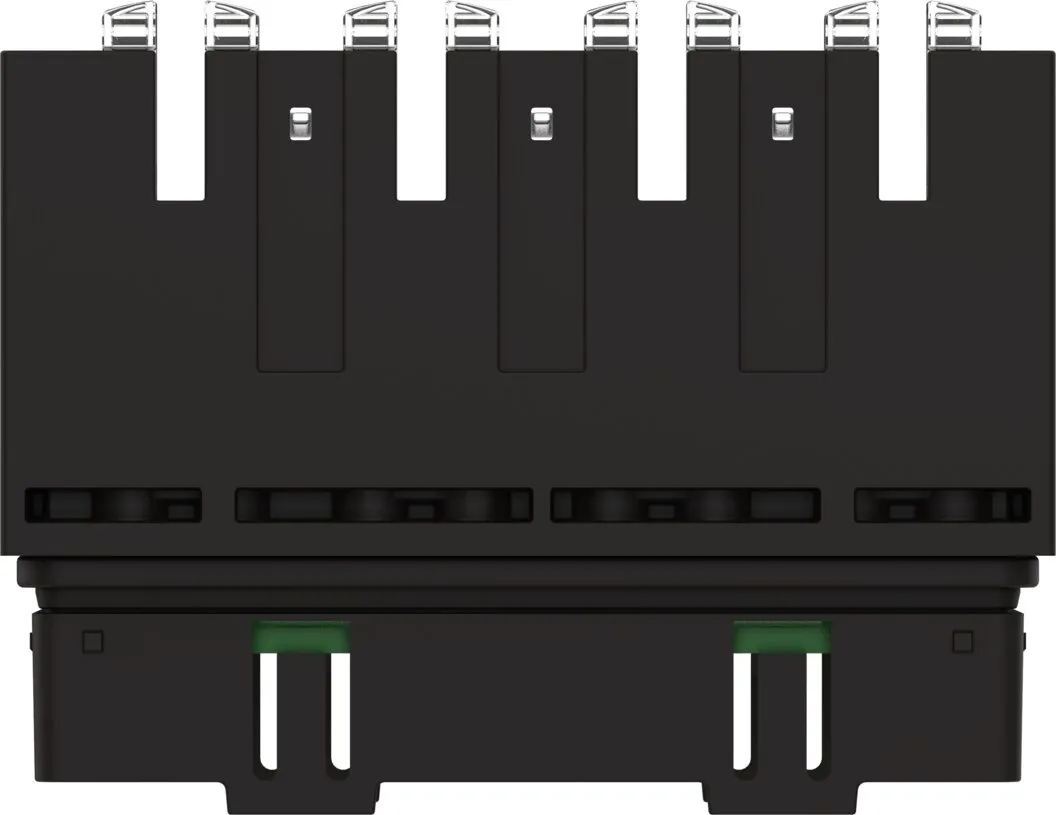

Electronics module-VMPA14-FB-EMS-D2-8
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Diagnosis | Condition monitoring, Wire break per solenoid coil, Short circuit of valves, Undervoltage of valves |
|---|---|
| Max. Number Of Valve Positions | 4 |
| Max. Number Of Valve Coils | 8 |
| Internal Current Consumption, Load Voltage | 3 mA |
| Internal Current Consumption, Operating Voltage | 8 mA |
| Nominal Pick Up Current Per Solenoid Coil | 58 mA up to 24 ms |
| Nominal Current With Current Reduction | 9 mA after 24 ms |
| Corrosion Resistance Class Crc | 1 – Low corrosion stress, (when installed) |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Product Weight | 30 g |
| Material Housing | POM |
| Note On Materials | RoHS-compliant |
