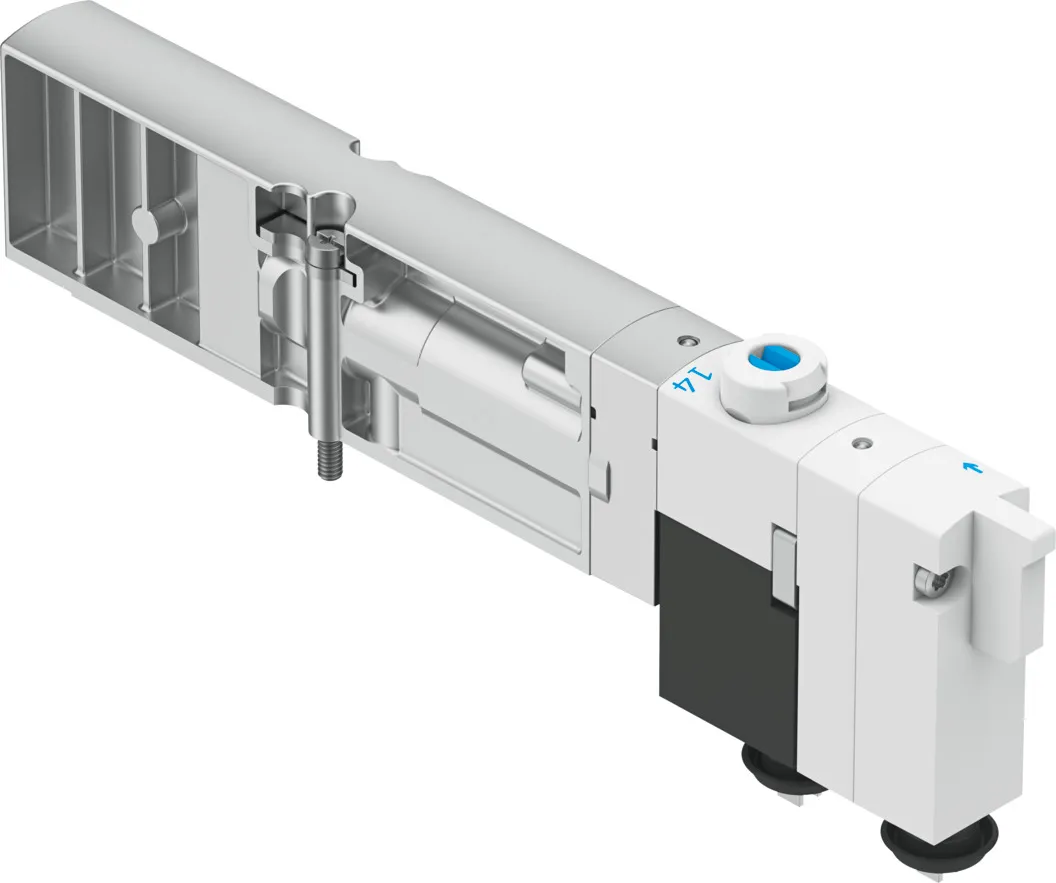

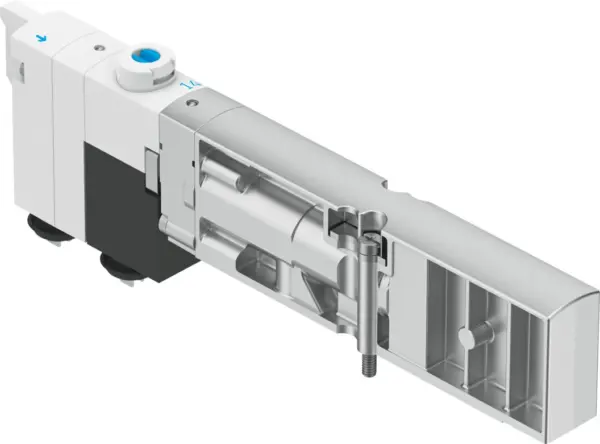

Festo VMPA1-M1H-IS-PI
For valve terminal MPA , As individual valve mounted on sub-base , Comprehensive range of valves
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For valve terminal MPA , As individual valve mounted on sub-base , Comprehensive range of valves
Specification
| Valve Function |
3/2-way, closed, monostable |
|---|---|
| Type Of Actuation |
Electric |
| Valve Size |
10 mm |
| Pneumatic Working Port |
M7 |
| Operating Voltage |
24V DC |
| Operating Pressure |
3, 8 bar |
| Design |
Poppet valve with spring return |
| Type Of Reset |
Mechanical spring |
| Degree Of Protection |
IP65, In assembled state, To IEC 60529 |
| Sealing Principle |
Soft |
| Mounting Position |
optional |
| Manual Override |
Detenting, Non-detenting |
| Type Of Piloting |
Pilot actuated |
| Pilot Air Supply |
Internal |
| Flow Direction |
Non-reversible |

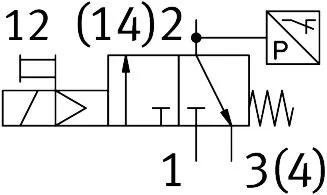

| Symbol |
00997584 |
| Lap |
Underlap |
| Signal Status Display |
yes |
| Pilot Pressure |
3, 8 bar |
| Suitability For Vacuum |
no |
| Permissible Voltage Fluctuations |
+/- 25% |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium |
Lubricated operation not possible |
| Vibration Resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock Resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Storage Temperature |
-20, 60 °C |
| Media Temperature |
-5, 50 °C |
| Relative Air Humidity |
Max. 90% at 40°C |
| Ambient Temperature |
-5, 50 °C |
| Max. Tightening Torque For Valve Mounting |
0.25 Nm |
| Product Weight |
32 g |
| Switch Off Point Min. |
0.05 bar |
| Switch On Point |
0.2 bar |
| Switch On Point Max. |
0.3 bar |
| Type Of Mounting |
With through-hole |
| Pilot Exhaust Port 82/84 |
Internal |
| Pneumatic Connection, Port 1 |
Internal |
| Pneumatic Connection, Port 2 |
Internal |
| Pneumatic Connection, Port 3 |
M7 |
| Note On Materials |
RoHS-compliant |
| Material Seals |
HNBR, NBR |
| Material Housing |
PPA reinforced |
| Material Screws |
Coated steel |
