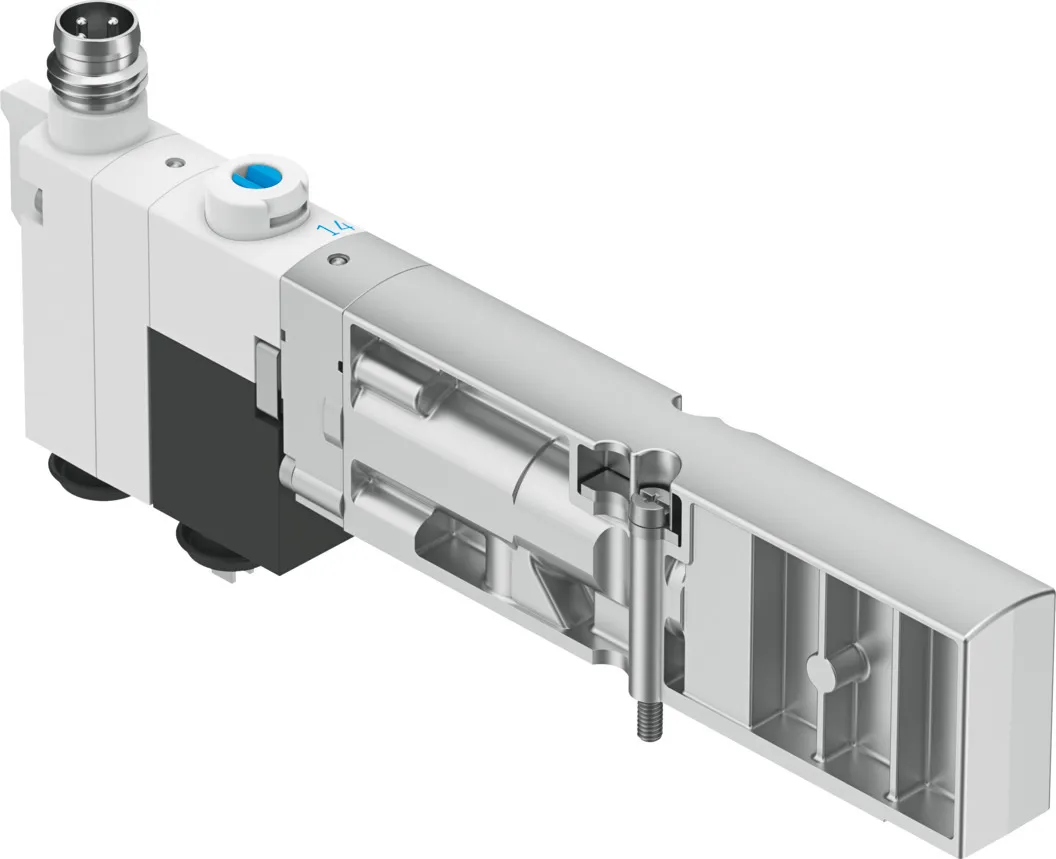

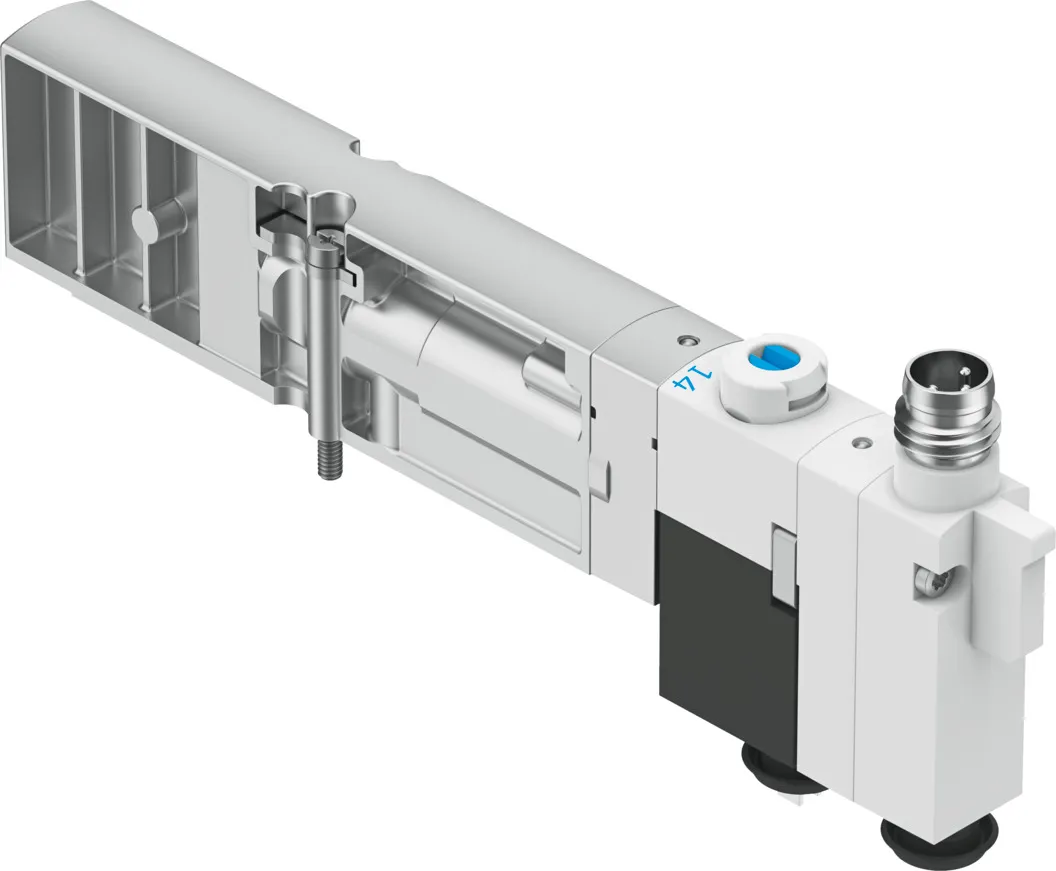

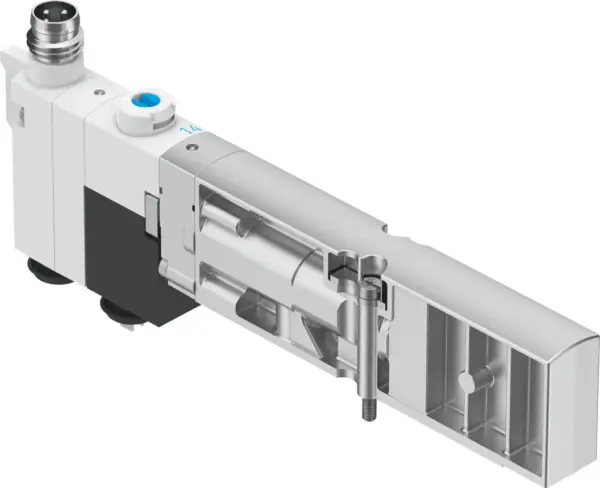

Festo VMPA1-M1H-EU-PI
For valve terminal MPA , As individual valve mounted on sub-base , Comprehensive range of valves
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For valve terminal MPA , As individual valve mounted on sub-base , Comprehensive range of valves
Specification
| Valve Function | 3/2-way, closed, monostable |
|---|---|
| Type Of Actuation | Electric |
| Valve Size | 10 mm |
| Pneumatic Working Port | M7 |
| Operating Voltage | 24V DC |
| Operating Pressure | 3, 8 bar |
| Design | Poppet valve with spring return |
| Type Of Reset | Mechanical spring |
| Degree Of Protection | IP65, In assembled state, To IEC 60529 |
| Sealing Principle | Soft |
| Mounting Position | optional |
| Manual Override | Detenting, Non-detenting |
| Type Of Piloting | Pilot actuated |
| Pilot Air Supply | External |
| Flow Direction | Non-reversible |

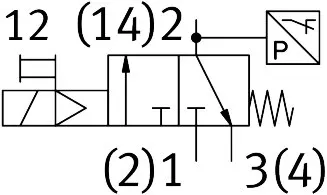

| Symbol | 00997594 |
| Lap | Underlap |
| Signal Status Display | yes |
| Pilot Pressure | 3, 8 bar |
| Suitability For Vacuum | no |
| Permissible Voltage Fluctuations | +/- 25% |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium | Lubricated operation not possible |
| Vibration Resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock Resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion Resistance Class Crc | 1 – Low corrosion stress |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Storage Temperature | -20, 60 °C |
| Media Temperature | -5, 50 °C |
| Relative Air Humidity | Max. 90% at 40°C |
| Ambient Temperature | -5, 50 °C |
| Max. Tightening Torque For Valve Mounting | 0.65 Nm |
| Product Weight | 32 g |
| Switch Off Point Min. | 0.05 bar |
| Switch On Point | 0.2 bar |
| Switch On Point Max. | 0.3 bar |
| Type Of Mounting | With through-hole |
| Pilot Air Port 12/14 | M7 |
| Pilot Exhaust Port 82/84 | M7 |
| Pneumatic Connection, Port 1 | M7 |
| Pneumatic Connection, Port 2 | Internal |
| Pneumatic Connection, Port 3 | M7 |
| Note On Materials | RoHS-compliant |
| Material Seals | HNBR, NBR |
| Material Housing | PPA reinforced |
| Material Screws | Coated steel |
