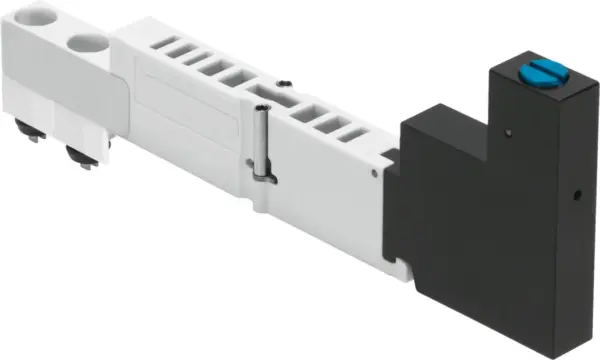

Festo VMPA1-HS
Vertical pressure shut-off plate-VMPA1-HS
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Construction Width |
10 mm |
|---|---|
| Mounting Position |
optional |
| Vertical Pneumatic Linkage |
Shut-off for 1 |

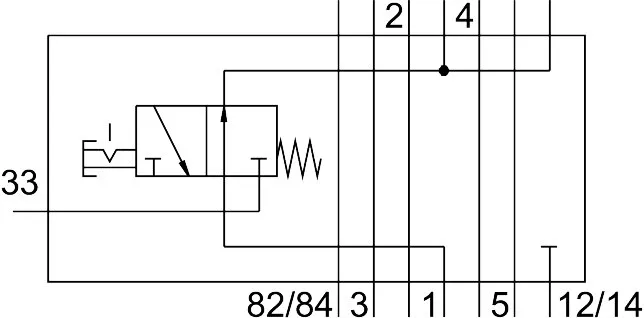

| Symbol |
00991889 |
| Operating Pressure |
3, 8 bar |
| Standard Nominal Flow Rate Ventilation |
103 l/min |
| Standard Nominal Flow Rate For Exhaust |
213 l/min |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Degree Of Protection |
IP65 |
| Ambient Temperature |
-5, 50 °C |
| Product Weight |
60 g |
| Mounting With Vertical Stacking |
On manifold sub-base, On individual sub-base |
| Note On Materials |
RoHS-compliant |
| Material Housing |
Wrought aluminium alloy, PA-reinforced |
