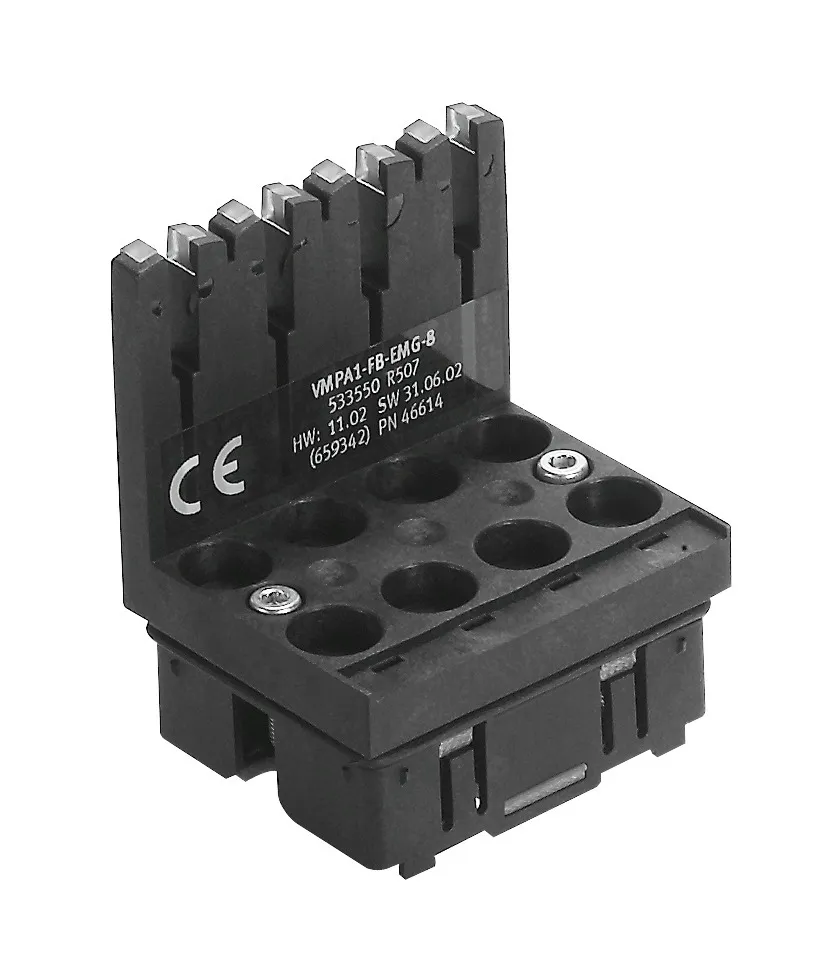

Festo VMPA1-FB-EMG-D2-8
Electrical module-VMPA1-FB-EMG-D2-8
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Diagnosis |
Condition monitoring, Wire break per solenoid coil, Short circuit of valves, Undervoltage of valves |
|---|---|
| Max. Number Of Valve Positions |
4 |
| Max. Number Of Valve Coils |
8 |
| Internal Current Consumption, Load Voltage |
23 mA |
| Internal Current Consumption, Operating Voltage |
8 mA |
| Nominal Pick Up Current Per Solenoid Coil |
58 mA up to 24 ms |
| Nominal Current With Current Reduction |
9 mA after 24 ms |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress, (when installed) |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Product Weight |
20 g |
| Material Housing |
POM |
| Note On Materials |
RoHS-compliant |
