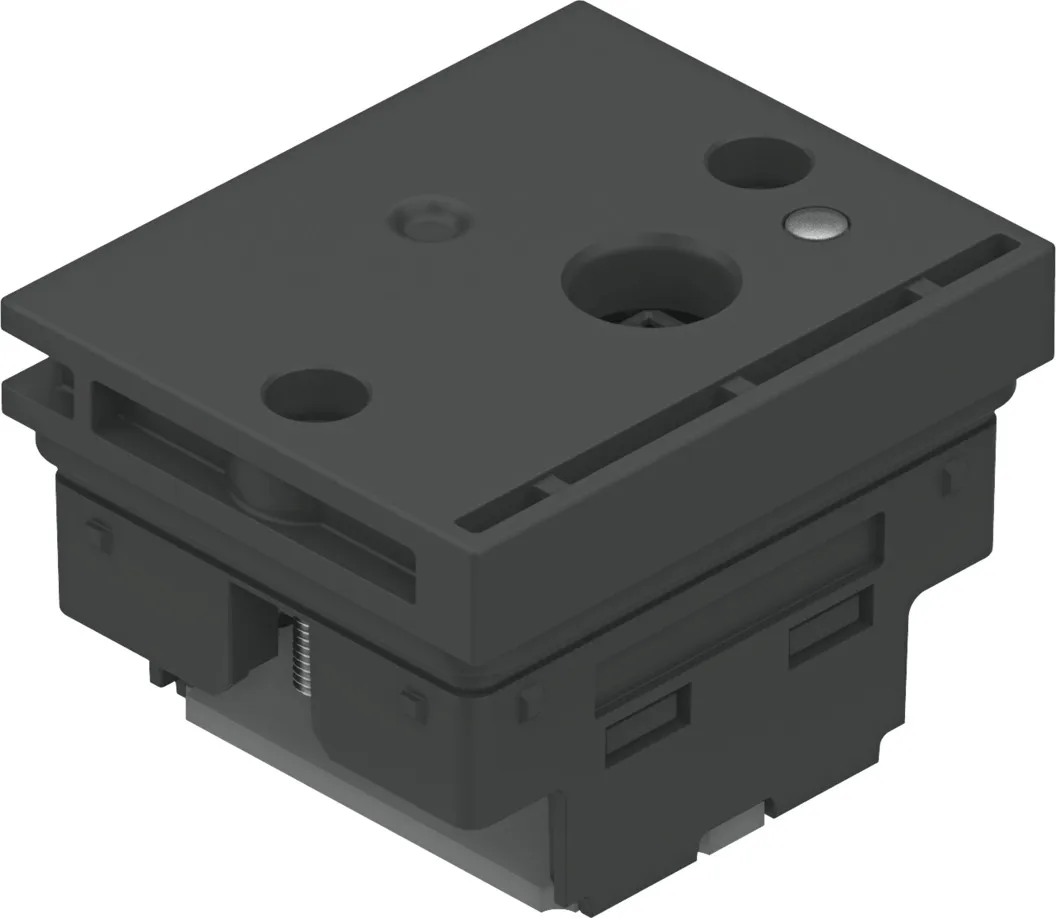

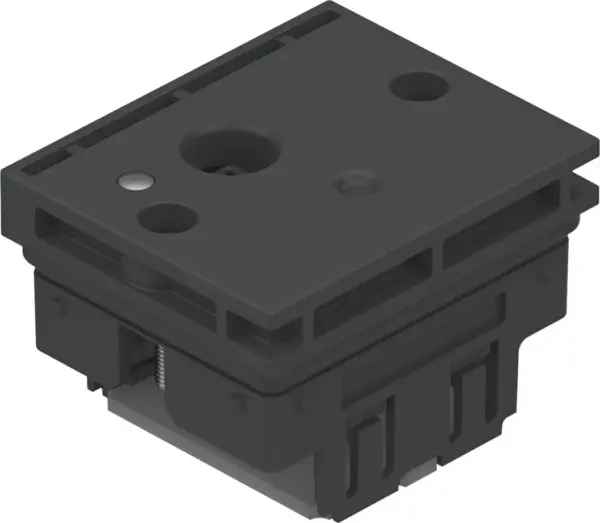

Festo VMPA-MPM-EMM-P5
Electronics module-VMPA-MPM-EMM-P5
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Max. Number Of Valve Positions | 1 |
|---|---|
| Max. Number Of Valve Coils | 1 |
| Reverse Polarity Protection | yes |
| Additional Functions | For soft-start valve |
| Operating Voltage Dc Load Voltage | 21.6, 26.4 V |
| Nominal Pick Up Current Per Solenoid Coil | 60 mA to 30 ms |
| Nominal Current With Current Reduction | 22 mA after 30 ms |
| Isolation Channel Internal Bus | no |
| Corrosion Resistance Class Crc | (when installed) |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Ambient Temperature | -5, 50 °C |
| Product Weight | 20 g |
| Electrical Control | Multi-pin plug |
| Material Housing | POM |
| Note On Materials | RoHS-compliant |
