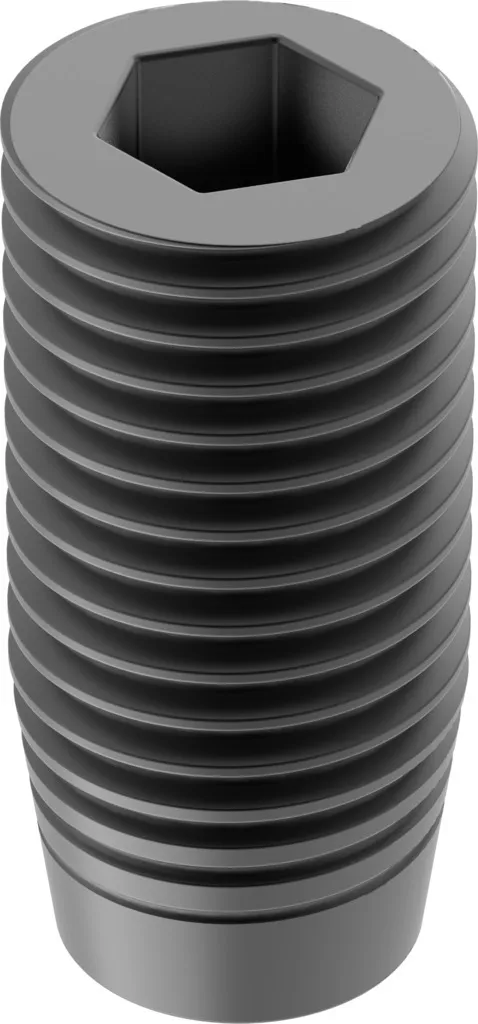

Festo VMPA-FT-NW1.5-10
Flow control function , Mounting: screw-in , Piston slide and poppet valve technology from the MPA series
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Flow control function , Mounting: screw-in , Piston slide and poppet valve technology from the MPA series
Specification
| Valve Function | Flow control function |
|---|---|
| Pneumatic Connection, Port 1 | Sub-base |
| Type Of Mounting | Screw-in |
| Standard Nominal Flow Rate In Flow Control Direction | 81, 89 l/min |
| Operating Pressure | -0.9, 10 bar |
| Ambient Temperature | -5, 60 °C |
| Nominal Size | 1.5 mm |
| Mounting Position | optional |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Storage Temperature | -20, 40 °C |
| Media Temperature | -5, 60 °C |
| Product Weight | 0.05 g |
| Note On Materials | RoHS-compliant |
| Material Hollow Bolt | Wrought aluminium alloy |
