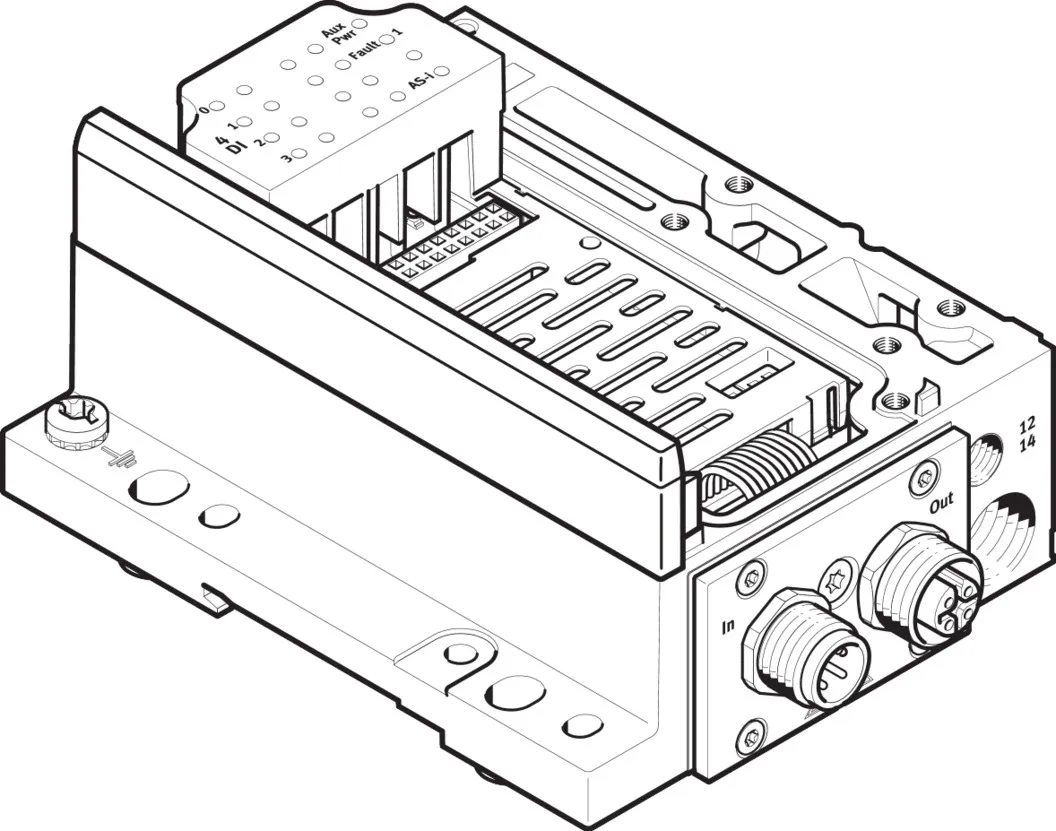

Festo VMPA-ASI-EPL-EU-8E8A-CE
Electrical interface-VMPA-ASI-EPL-EU-8E8A-CE
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Dimensions (W X L X H) |
85 x 122.9 x 55.1 mm |
|---|---|
| Field Bus Interface |
Socket, M12 (ASI Out), Plug connector, M12 (ASI In) |
| Device Specific Diagnostics |
AS-i voltage, AS-Interface address, Watchdog/I/O status, Additional power supply not applied or undervoltage |
| Max. Number Of Valve Positions |
8 |
| Number Of Slaves Per Device |
2 |
| Operating Voltage Range Dc Electronics/Sensors |
US+ / US- : <= AS-interface bus voltage – 2.5V |
| Operating Voltage Dc As Interface |
26.5, 31.6 V |
| Operating Voltage Dc Load Voltage |
21.6, 26.4 V |
| Note On Load Voltage |
Via load voltage connection (24 V DC) |
| Logic Level Digital Inputs |
ON: 11 – 30 V, AUS: -30 – 5 V |
| Max. Number Of Inputs |
8 |
| Residual Ripple, As Interface |
<= 20 mVpp |
| Residual Ripple, Load Voltage |
4 Vpp |
| Current Consumption With Load Supply From As Interface Connection And Load Voltage Connection |
Max. resultant current for inputs 350 mA, Max. resultant current for outputs MPA1: 540 mA, Max. resultant current for outputs MPA2: 1065 mA |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Storage Temperature |
-20, 40 °C |
| Degree Of Protection |
IP20 |
| Ambient Temperature |
-5, 50 °C |
| Product Weight |
360 g |
| Characteristic For Inputs |
To IEC 1131-2, type 02 |
| Switching Logic For Inputs |
PNP (positive switching) |
| Addressing Range |
1A … 31 A, 1B … 31B |
| Led Display, Bus Specific |
AS-i: AS-Interface mode, Aux/Pwr: AS-Interface power supply, Fault: AS-Interface fault |
| Led Display, Product Specific |
Signal at input/output |
| Product Identification |
ID code: ID=Ah, ID1=Fh, ID2=Eh, IO code: 7h, Profile: S-7.A.E |
| Type Of Mounting |
With through-hole, With H-rail |
| Material Housing |
Die-cast aluminium, PA |
| Note On Materials |
RoHS-compliant |
