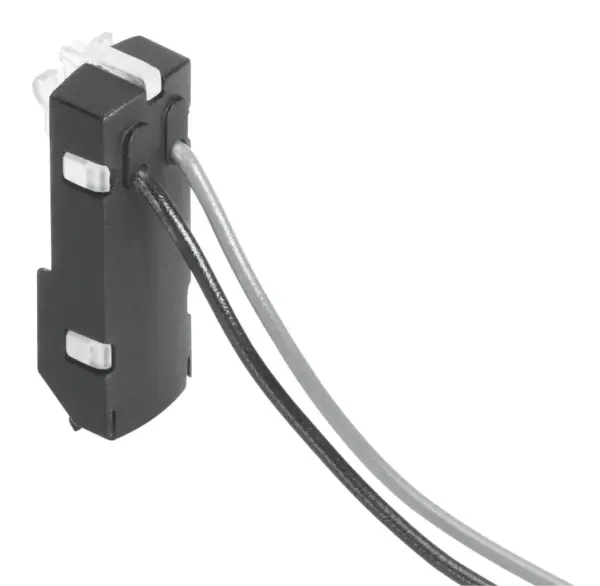

Festo VAVE-L1-1L4-LR
Electrical sub-base-VAVE-L1-1L4-LR
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Reverse Polarity Protection |
For operating voltage |
|---|---|
| Additional Functions |
Spark arresting, Holding current reduction |
| Signal Status Display |
LED |
| Nominal Operating Voltage Dc |
24 V |
| Immunity To Surge |
0.8 kV |
| Pollution Degree |
3 |
| Approval |
RCM trademark |
| Ce Mark (See Declaration Of Conformity) |
To EU EMC Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK instructions for EMC |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Degree Of Protection |
IP40 |
| Ambient Temperature |
-5, 60 °C |
| Mounting Position |
optional |
| Product Weight |
33.5 g |
| Connection Cross Section |
0.14 mm² |
| Electrical Connection |
Flying lead |
| Cable Length |
5 m |
| Wire Ends |
Wire ferrule |
| Protective Conductor Connection |
Not available |
| Type Of Mounting |
Clip |
| Housing Colour |
Black |
| Note On Materials |
RoHS-compliant |
| Material Housing |
PA |
