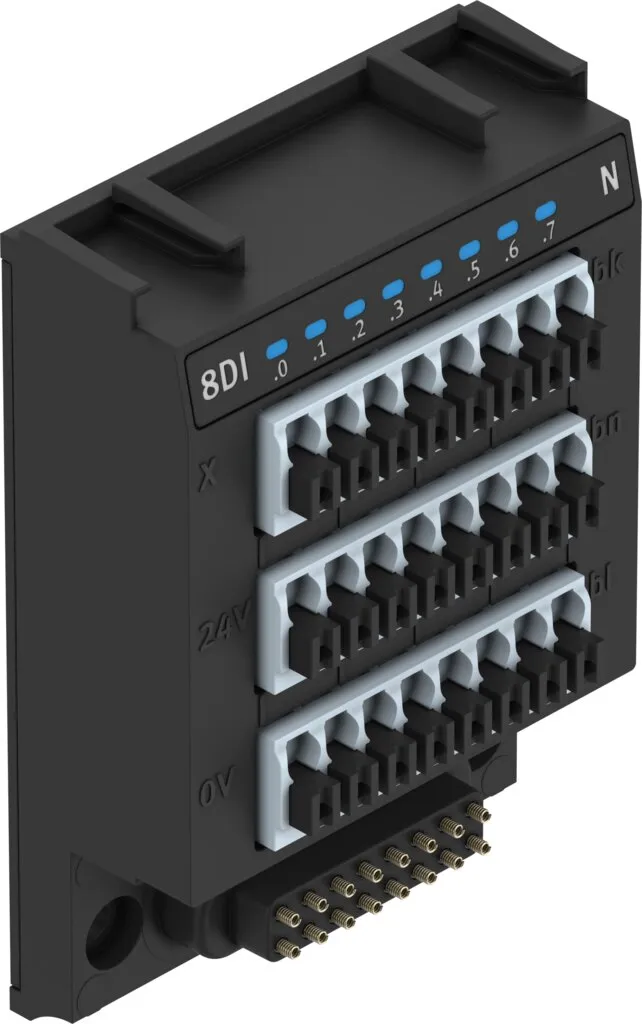

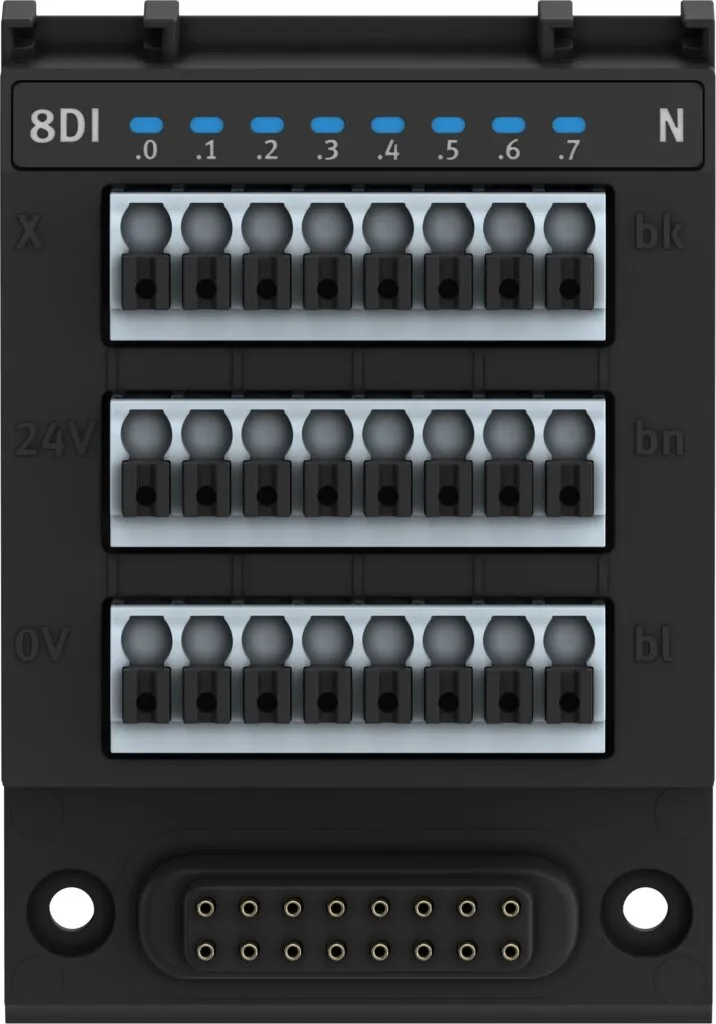

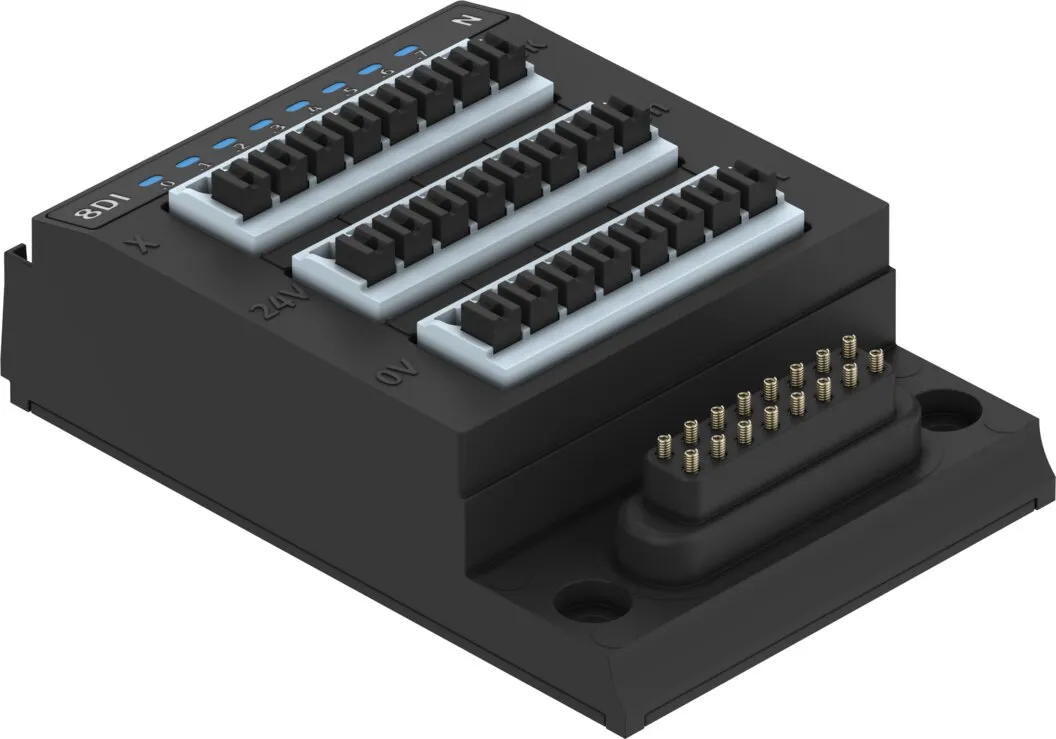

Festo VAEM-XA-E-8E-N-K2
M8 (IP6x) – detachable plug adapter for extremely high packing density and easy mounting , Terminal strip (IP20) – three-wire connection possible per input , Compact and cost-effective , For internal…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
M8 (IP6x) – detachable plug adapter for extremely high packing density and easy mounting , Terminal strip (IP20) – three-wire connection possible per input , Compact and cost-effective , For internal serial links , PNP or NPN , 2 inputs per valve position , For manifold sub-bases with 4 valves
Specification
| Dimensions (W X L X H) |
41.8 mm x 60.5 mm x 20.9 mm |
|---|---|
| Diagnostics Per Internal Communication |
Short circuit/overload Power OUT PL |
| Max. Number Of Modules |
6 |
| Number Of Inputs |
8 |
| Input Debounce Time |
3 ms |
| Intrinsic Current Consumption At Nominal Operating Voltage For Electronics/Sensors |
Typically 4 mA |
| Max. Number Of Inputs |
8 |
| Nominal Dc Operating Voltage, Electronics/Sensors |
24 V |
| Power Failure Bridging |
10 ms |
| Switching Level |
Signal 1: >= 11 V |
| Fuse Protection Of Inputs (Short Circuit) |
Internal electronic fuse per module |
| Behaviour After End Of Overload Of The Sensor Supply |
Automatic return (default) |
| Voltage Drop Of Sensor Supply |
1 V |
| Max. Residual Current Of Inputs Per Module |
0.2 A |
| Electrical Isolation Of Inputs Between Channels |
no |
| Pollution Degree |
2 |
| Permissible Voltage Fluctuations For Electronics/Sensors |
± 25% |
| Permissible Voltage Fluctuation Of Load |
± 10% |
| Ce Mark (See Declaration Of Conformity) |
To EU EMC Directive, In accordance with EU RoHS Directive |
| Kc Mark |
KC-EMV |
| Max. Cable Length |
30 m inputs |
| Vibration Resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock Resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Storage Temperature |
-20, 70 °C |
| Relative Air Humidity |
5 – 95% |
| Note Regarding Operating Voltage |
SELV/PELV fixed power supplies required, Note voltage drop |
| Degree Of Protection |
IP20 |
| Overvoltage Category |
II |
| Ambient Temperature |
-5, 50 °C |
| Approval |
RCM trademark |
| Nominal Altitude Of Use |
<= 2000 m NHN |
| Product Weight |
32 g |
| Characteristic For Inputs |
To EN 61131-2 |
| Switching Logic For Inputs |
NPN (negative switching) |
| Electrical Connection |
Spring-loaded terminal |
| Electrical Connection 1, Connection Type |
Terminal strip |
| Electrical Connection 1, Number Of Connections/Cores |
3 |
| Electrical Connection 1, Used Connections/Cores |
24 |
| Electrical Connection 1, Tightening Torque |
0.7 Nm |
| Electrical Connection 1, Type Of Mounting |
Screw-type lock |
| Electrical Connection 1, Function |
Digital input |
| Material Connector Housing |
PA |
| Electrical Connection For Input, Conductor Cross Section |
0.2, 1.5 mm² |
| Electrical Connection For Input, Awg Conductor Cross Section |
AWG28 – AWG16 |
| Electrical Connection For Output, Note On Conductor Cross Section |
0.09 – 1.5 mm² for flexible conductors without wire ferrules |
| Material Foil |
Polyester |
| Note On Materials |
RoHS-compliant |
