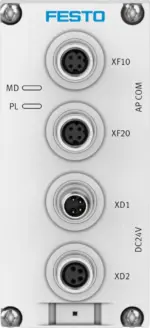

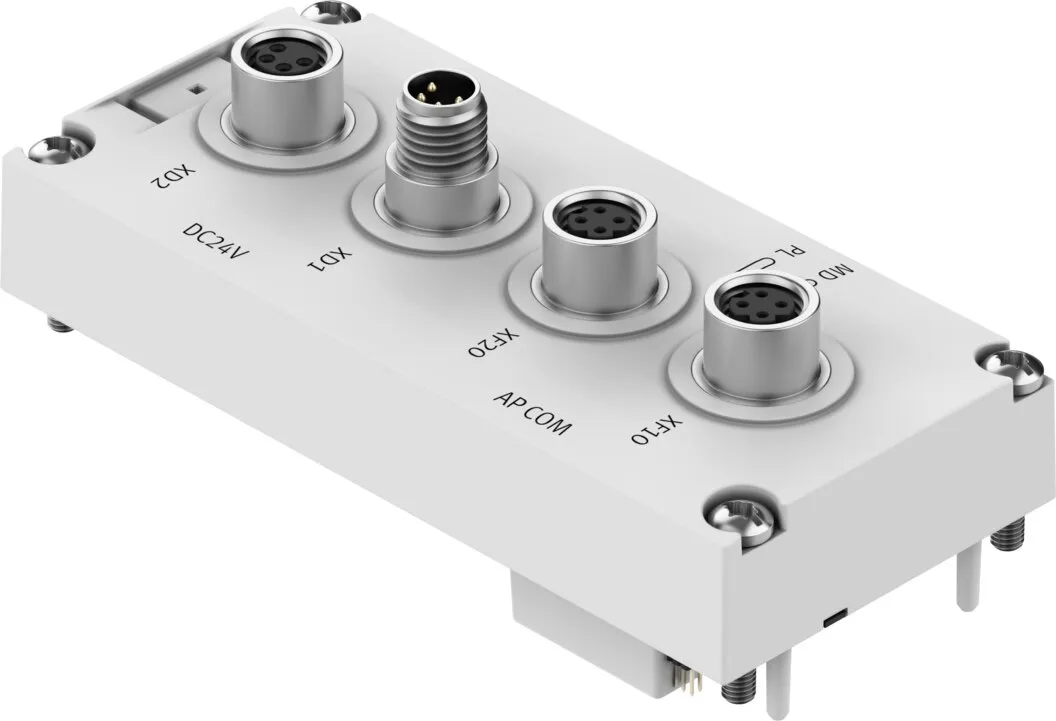

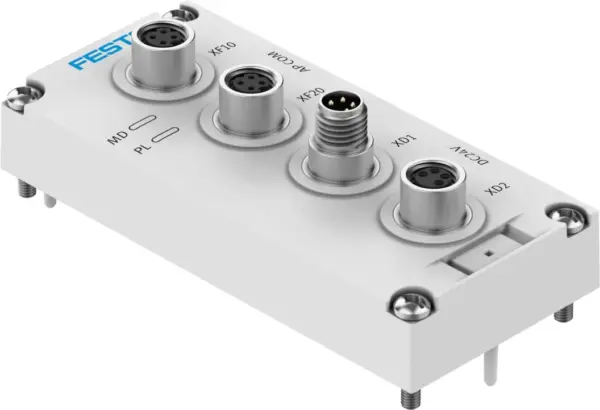

Festo VAEM-L1-S-24-AP
Electrical interface-VAEM-L1-S-24-AP
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Dimensions (W X L X H) |
42 x 91 x 30 mm |
|---|---|
| Position Of Connection |
Top |
| Diagnostics Via Led |
Diagnostics per module, Load power supply |
| Diagnostics Per Internal Communication |
Load switch-off, Electronics/sensors overvoltage, Load overvoltage, Electronics/sensors undervoltage, Load undervoltage |
| Max. Number Of Valve Positions |
24 |
| Max. Number Of Valve Coils |
48 |
| Reverse Polarity Protection |
yes |
| Module Parameters |
Configuration of voltage monitoring load supply PL, Response in error state |
| Fuse Protection (Short Circuit) |
Internal electronic fuse per channel |
| Intrinsic Current Consumption At Nominal Operating Voltage For Electronics/Sensors |
Typically 34 mA |
| Intrinsic Current Consumption At Nominal Operating Voltage Load |
Typically 22 mA |
| Nominal Dc Operating Voltage, Electronics/Sensors |
24 V |
| Nominal Operating Voltage Dc Of Load |
24 V |
| Power Failure Bridging |
10 ms |
| Power Failure Buffering Of Load |
3 ms |
| Permissible Voltage Fluctuations For Electronics/Sensors |
± 25% |
| Permissible Voltage Fluctuation Of Load |
± 10% |
| Max. Power Supply |
2 x 4 A (external fuse required) |
| Power Supply, Function |
Incoming electronics/sensors and load |
| Power Supply, Connection Type |
Plugs |
| Power Supply, Connection System |
M8x1, A-coded to EN 61076-2-104 |
| Power Supply, Number Of Pins/Wires |
4 |
| Power Transmission, Function |
Outgoing electronics/sensors and load |
| Power Transmission, Connection Type |
Socket |
| Power Transmission, Connection Technology |
M8x1, A-coded to EN 61076-2-104 |
| Power Transmission, Number Of Pins/Wires |
4 |
| Communication Interface, Connection Type |
2x socket |
| Communication Interface, Connection Technology |
M8x1, D-coded according to EN 61076-2-114 |
| Communication Interface, Number Of Pins/Cores |
4 |
| Communication Interface, Function |
System communication XF10 IN / XF20 OUT |
| Communication Interface, Protocol |
AP-COM |
| Communication Interface, Shielding |
yes |
| Ce Mark (See Declaration Of Conformity) |
To EU EMC Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK instructions for EMC |
| Kc Mark |
KC-EMV |
| Max. Cable Length |
50 m system communication |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Storage Temperature |
-20, 60 °C |
| Relative Air Humidity |
5 – 95%, Non-condensing |
| Protection Against Direct And Indirect Contact |
PELV, SELV |
| Note Regarding Operating Voltage |
SELV/PELV fixed power supplies required, Note voltage drop |
| Degree Of Protection |
IP65, IP67 |
| Note On Degree Of Protection |
In assembled state, Unused connections sealed |
| Ambient Temperature |
-5, 60 °C |
| Approval |
RCM trademark, c UL us – Recognized (OL) |
| Nominal Altitude Of Use |
<= 2000 m NHN |
| Product Weight |
76 g |
| Type Of Mounting |
Screw-clamped |
| Material Housing |
PA-reinforced |
| Material Threaded Sleeve |
Nickel-plated brass |
| Note On Materials |
RoHS-compliant |
