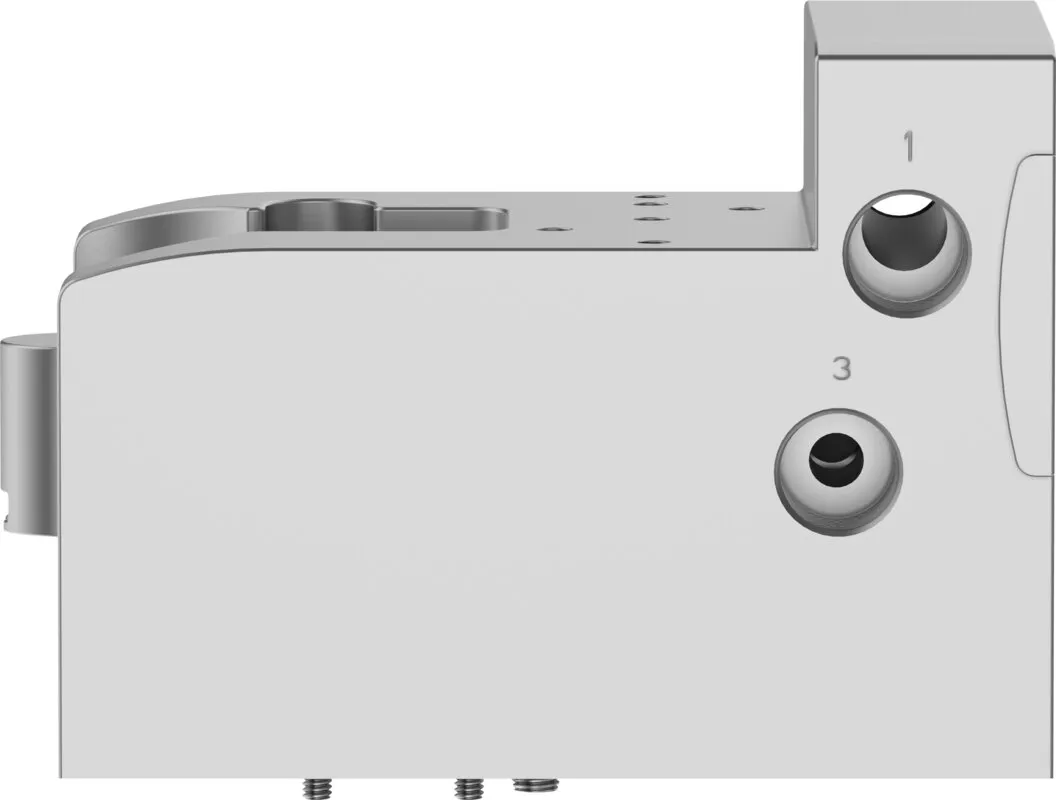

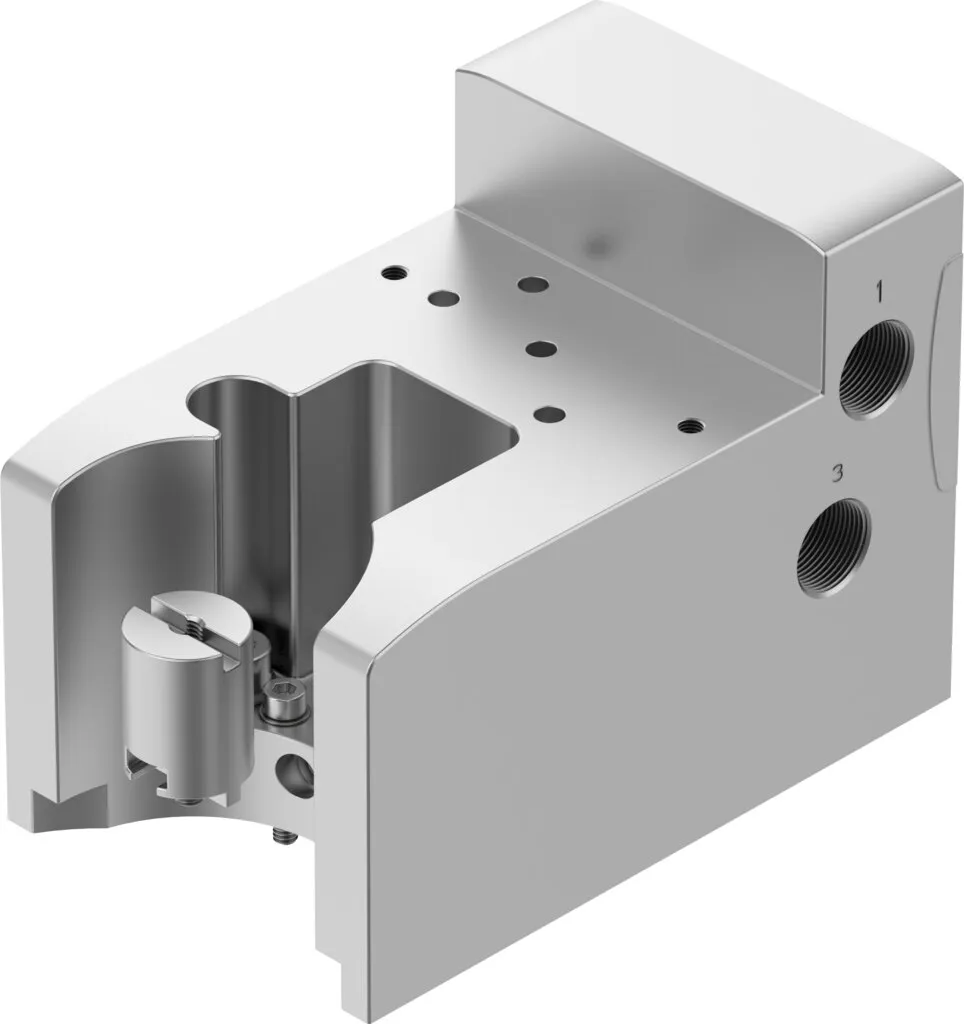

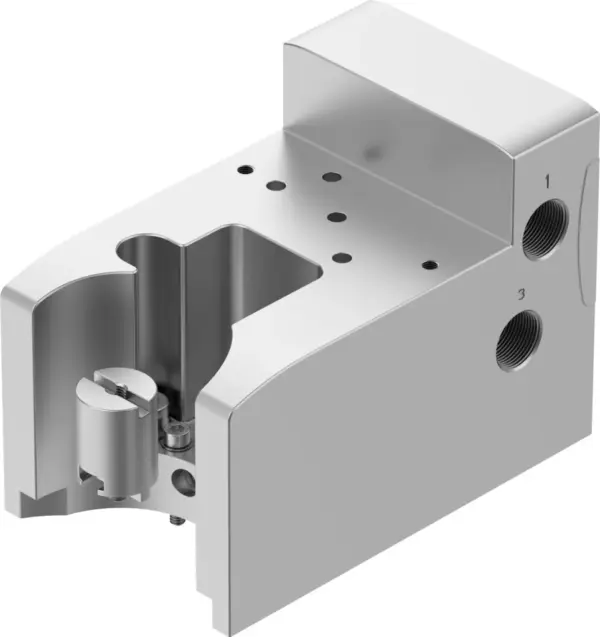

Festo VABA-C13-100-2-F90-G12
Pneumatic extension module for valve terminal VTOP , Interface between valve terminal VTOP, pneumatic drive and positioner
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Pneumatic extension module for valve terminal VTOP , Interface between valve terminal VTOP, pneumatic drive and positioner
Specification
| Size |
1200, 2300 |
|---|---|
| Mounting Position |
optional |
| Design |
Adapter for rotary drive |
| Valve Connection Conforms To Standard |
VDI/VDE 3847-2 |
| Operating Pressure |
9 bar |
| Explosion Protection |
Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:7:-], Inert gases |
| Note On Operating And Pilot Medium |
Lubricated operation not possible |
| Corrosion Resistance Class Crc |
3 – high corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Media Temperature |
-40, 80 °C |
| Ambient Temperature |
-40, 80 °C |
| Product Weight |
3140 g |
| Type Of Mounting |
With accessories |
| Pneumatic Connection |
Sub-base design, airing |
| Pneumatic Connection, Port 1 |
G1/2 |
| Pneumatic Connection, Port 2 |
Internal |
| Pneumatic Connection, Port 3 |
G1/2 |
| Pneumatic Connection, Port 4 |
Internal |
| Note On Materials |
RoHS-compliant |
| Material Cover |
Smooth-anodised wrought aluminium alloy (20 µm) |
| Material Seals |
EPDM, NBR |
| Material Housing |
Smooth-anodised wrought aluminium alloy (20 µm) |
| Material Screws |
High-alloy stainless steel |
