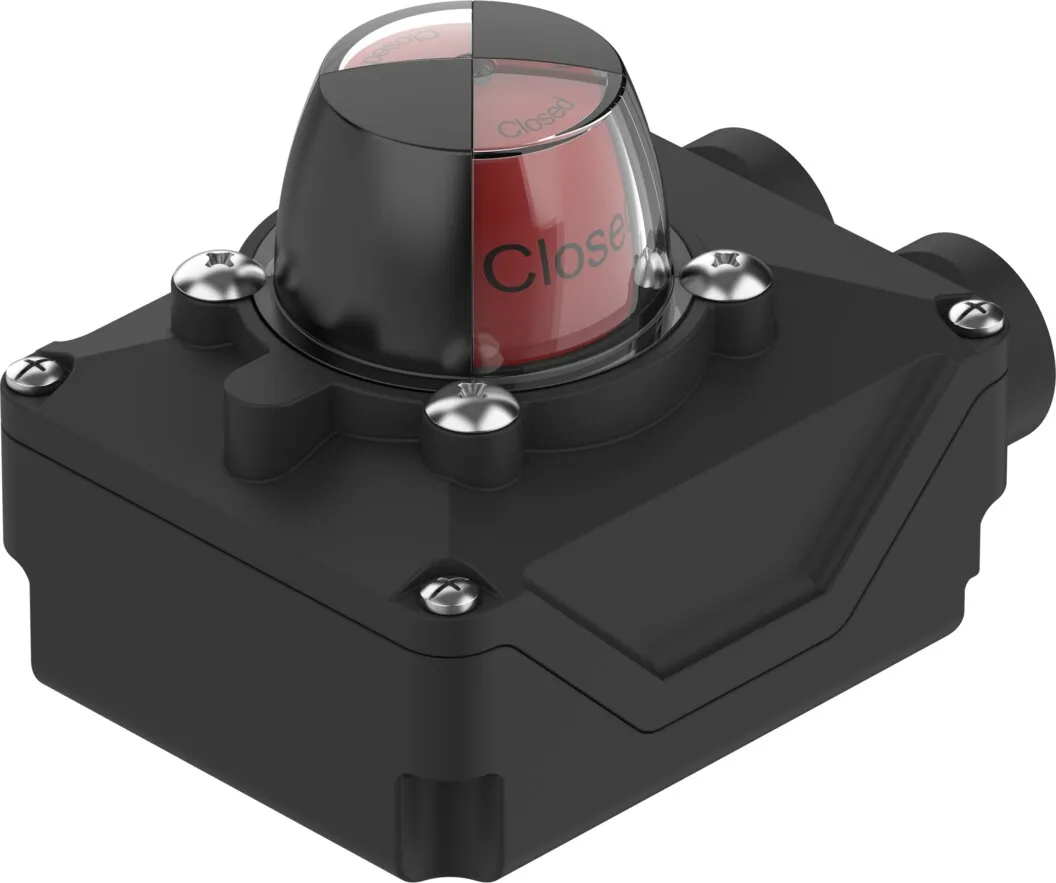

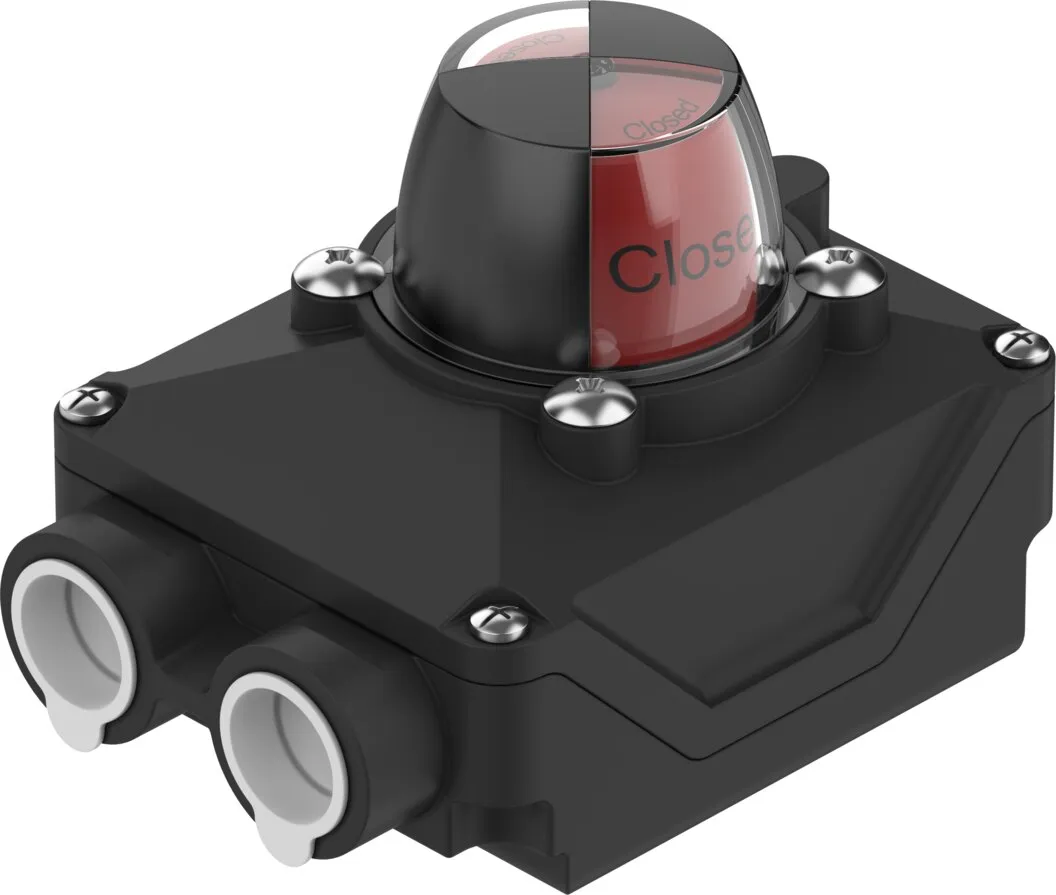

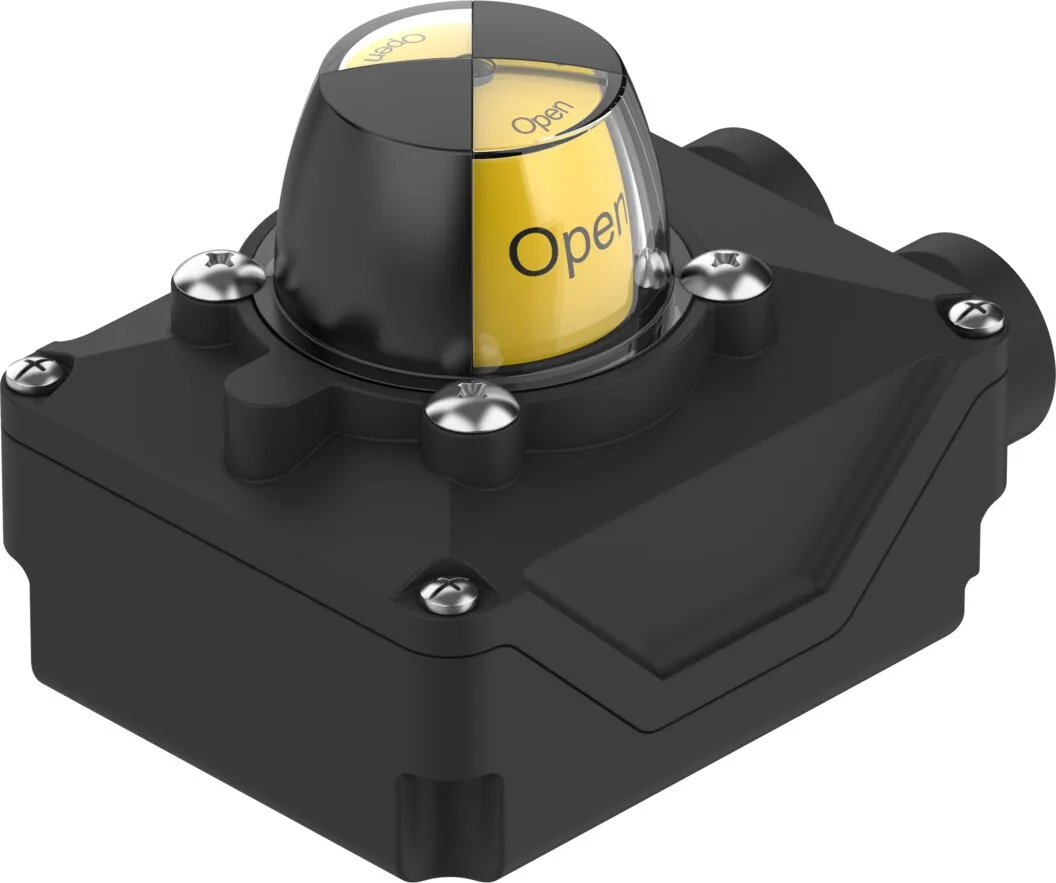

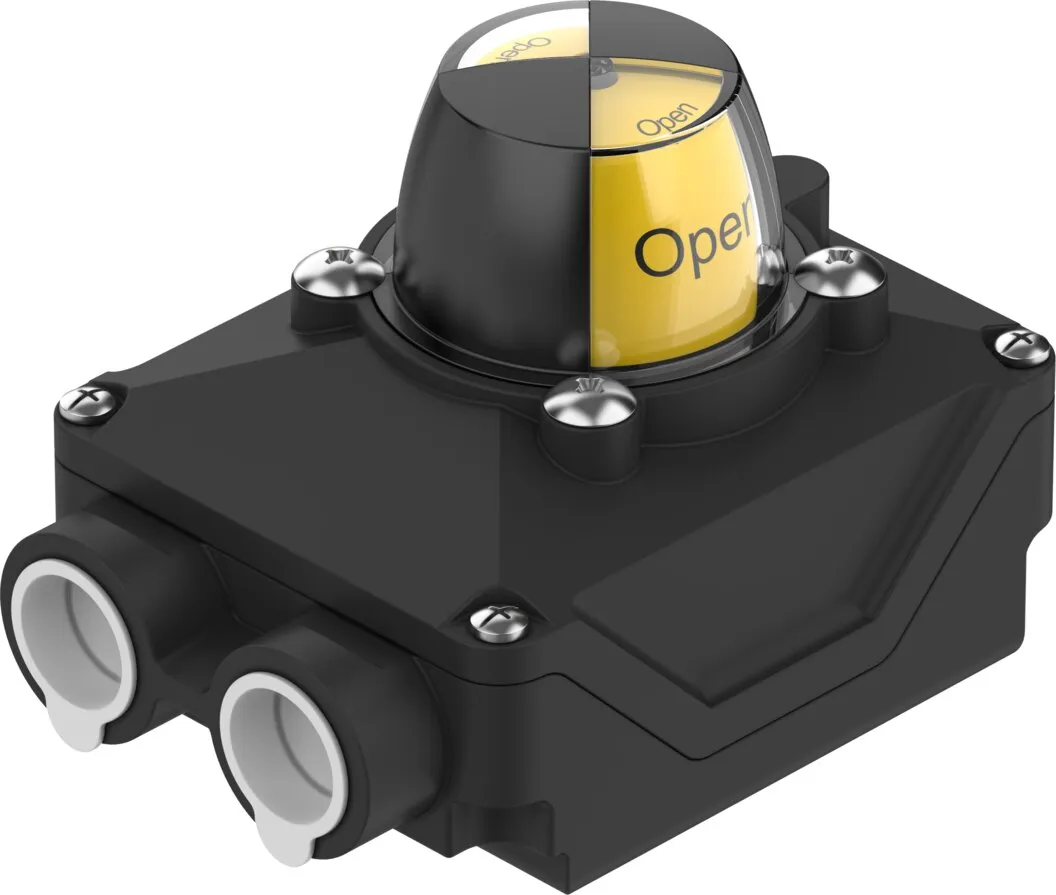

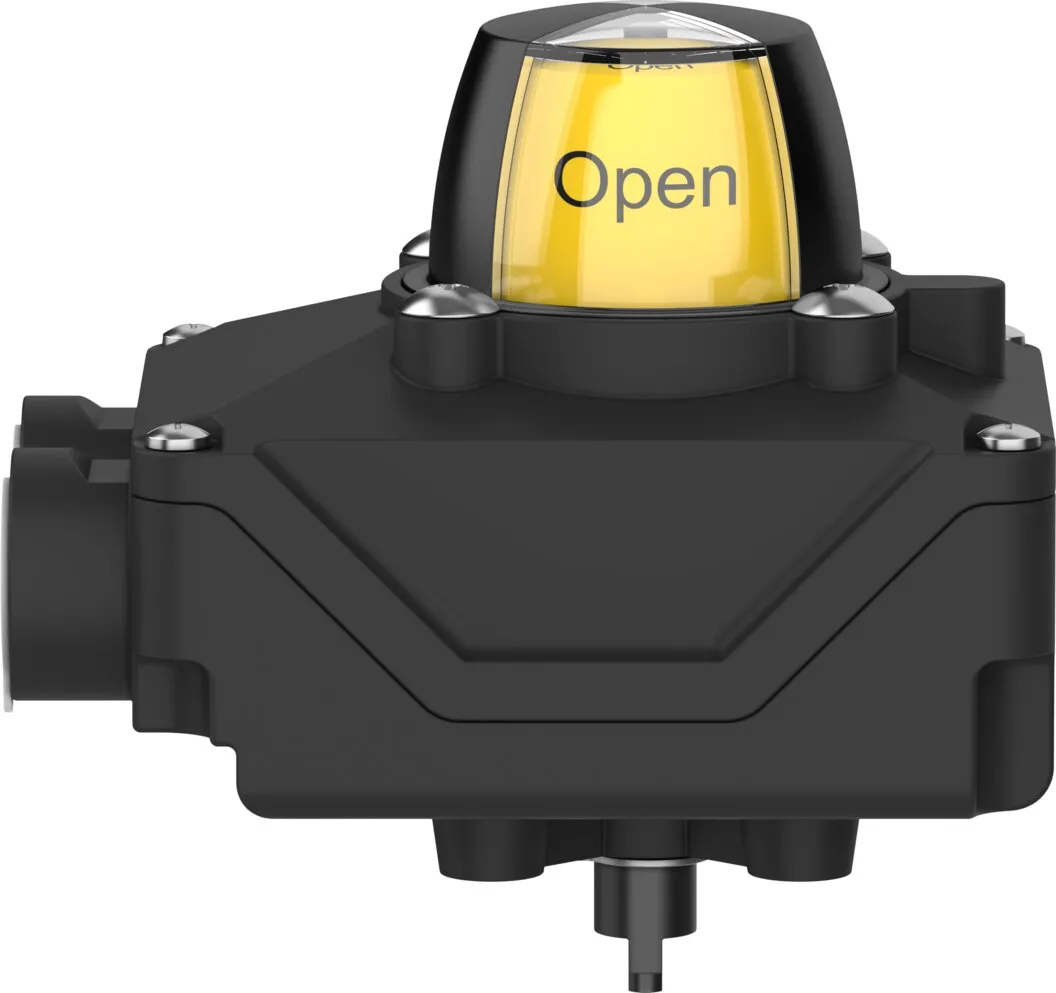

Festo SRBK-CA5-YR90-N-1-ZU-C2
Sturdy polymer housing with UV resistance , Different switch variants – mechanical, inductive and reed switches , Multifunctional mounting adapter for adaptations on the ISO3845 interface , Variants w…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Sturdy polymer housing with UV resistance , Different switch variants – mechanical, inductive and reed switches , Multifunctional mounting adapter for adaptations on the ISO3845 interface , Variants with M12 plug connection for easy installation (plug&play)
Specification
| Approval |
c CSA us (OL) |
|---|---|
| Ce Mark (See Declaration Of Conformity) |
To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK instructions for EMC, To UK RoHS instructions, To UK regulations for electrical equipment |
| Certificate Issuing Authority |
Eurocert. SIL202587141 |
| Note On Materials |
RoHS-compliant |
| Safety Integrity Level (Sil) |
Safety Integrity Level 3 |
| Measured Variable |
Position |
| Measuring Principle |
Inductive |
| Sensing Range |
90 deg |
| Ambient Temperature |
-20, 70 °C |
| Switching Output |
Non-contacting, 2-wire |
| Switching Element Function |
N/O contact |
| Max. Output Current Dc |
100 mA |
| Voltage Drop |
4 V |
| Min. Load Current |
4 mA |
| Off State Current |
0.4, 0.55 mA |
| Operational Voltage Range Dc |
5, 60 V |
| Reverse Polarity Protection |
For all electrical connections |
| Microswitch Type |
P&F NBB3-V3-Z4 |
| Electrical Connection |
Screw terminal |
| Electrical Connection 1, Connection Type |
Terminal strip |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Design |
Angular |
| Electrical Connection 1, Connector System |
Screw terminal |
| Electrical Connection 1, Number Of Connections/Cores |
10 |
| Connectable Nominal Cross Section Conductor |
0.25, 2.5 mm² |
| Cable Fitting |
M20x1.5 |
| Dimensions (W X L X H) |
119 mm x 85 mm x 89 mm |
| Type Of Mounting |
On flange according to ISO 5211 |
| Mounting Position |
optional |
| Product Weight |
360 g |
| Housing Colour |
Black |
| Material Housing |
PA |
| Material Seals |
NBR |
| Material Shaft |
PA |
| Material Screws |
Stainless steel |
| Material Mounting Bracket |
PA |
| Material Snap Ring |
High-alloy stainless steel |
| Protective Cap Material |
PC |
| Switching Status Indication |
Optical |
| Position Indicator |
Yellow/red |
| Setting Range Of Angular Detection |
90 deg |
| Storage Temperature |
-20, 50 °C |
| Degree Of Protection |
IP66, IP67 |
| Shock Resistance |
Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Vibration Resistance |
Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Corrosion Resistance Class Crc |
3 – high corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Pollution Degree |
3 |
