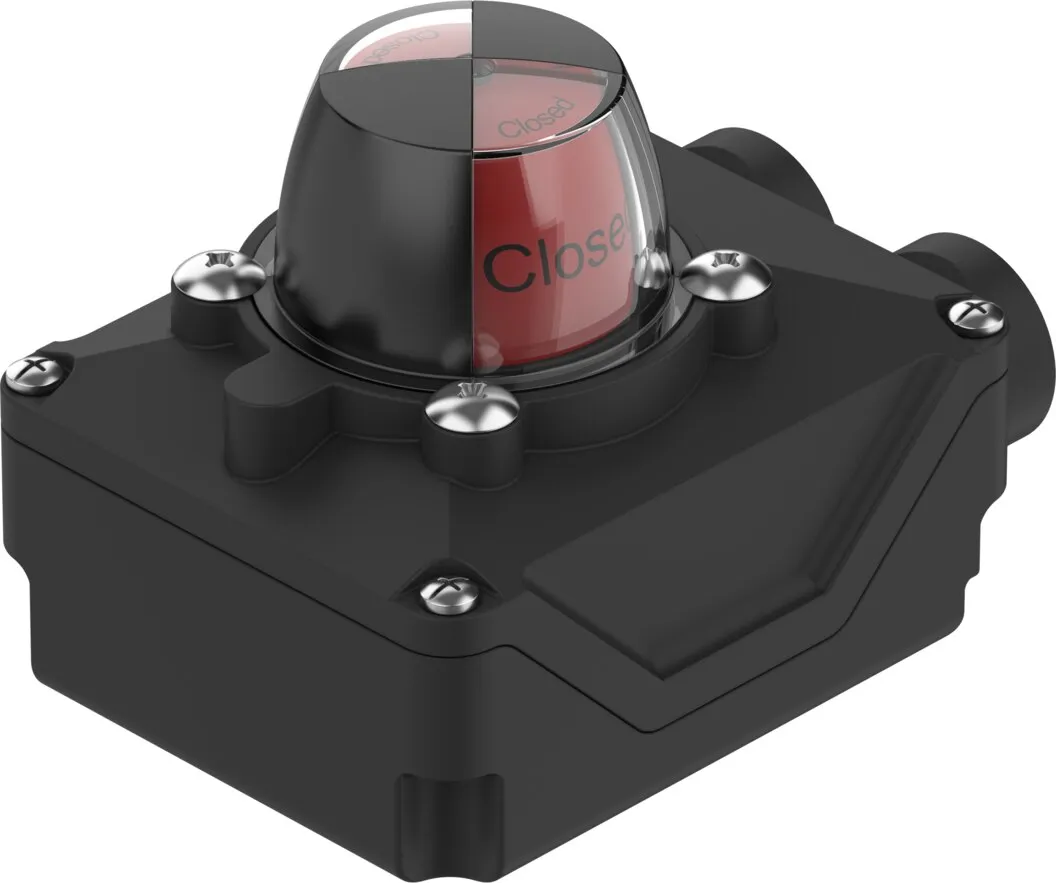

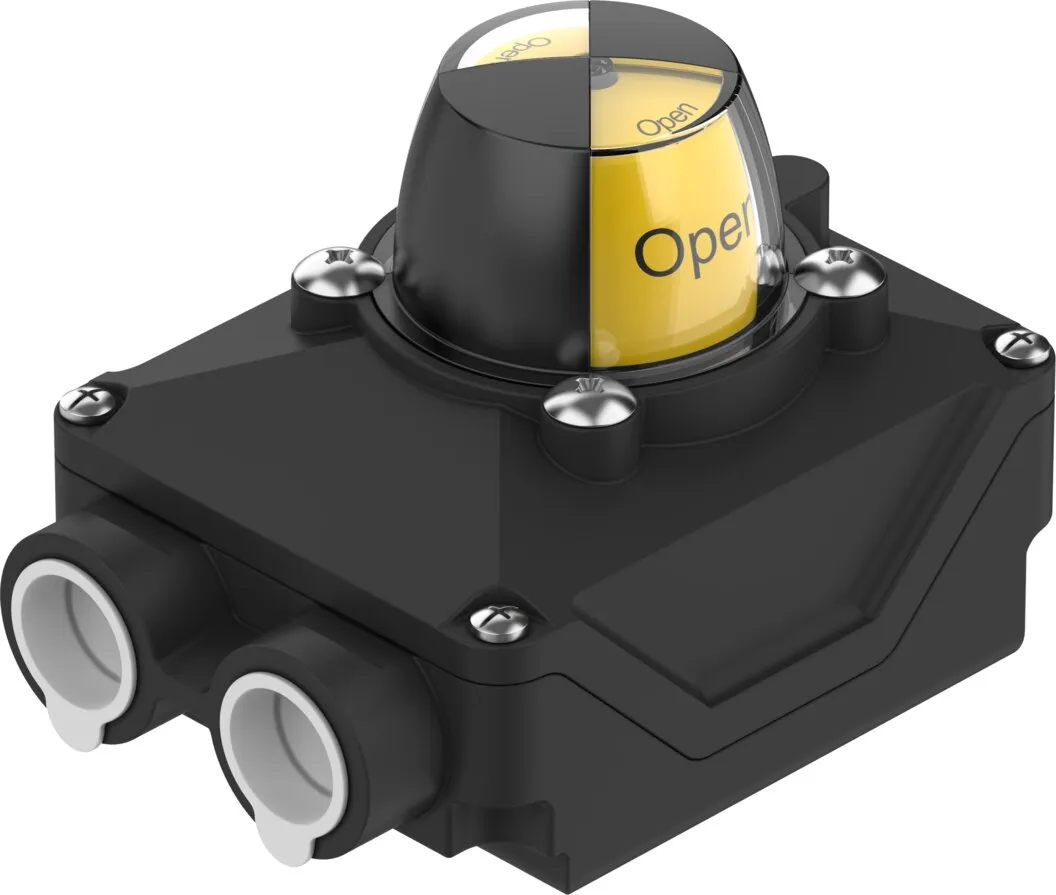

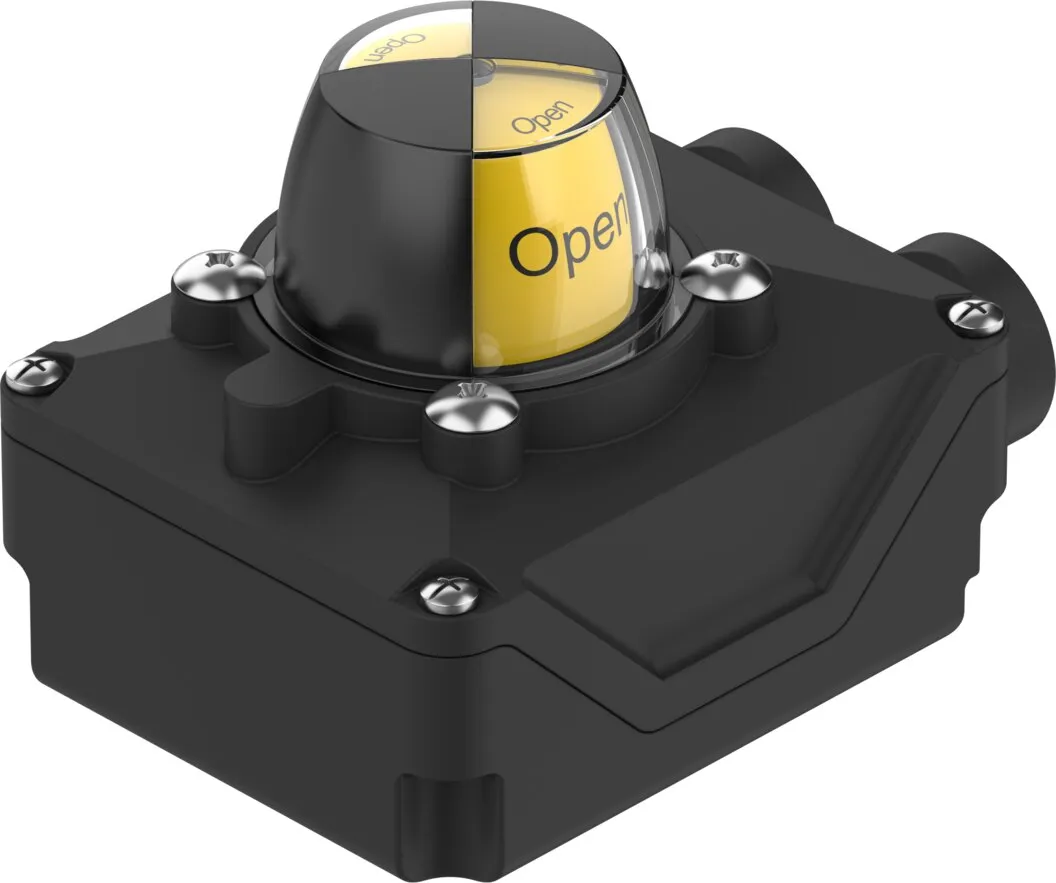

Festo SRBK-CA5-YR90-MW-1-1WG-C2
Sturdy polymer housing with UV resistance , Different switch variants – mechanical, inductive and reed switches , Multifunctional mounting adapter for adaptations on the ISO3845 interface , Variants w…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Sturdy polymer housing with UV resistance , Different switch variants – mechanical, inductive and reed switches , Multifunctional mounting adapter for adaptations on the ISO3845 interface , Variants with M12 plug connection for easy installation (plug&play)
Specification
| Ce Mark (See Declaration Of Conformity) | To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive |
|---|---|
| Ukca Marking (See Declaration Of Conformity) | To UK instructions for EMC, To UK RoHS instructions, To UK regulations for electrical equipment |
| Certificate Issuing Authority | Eurocert. SIL202587141 |
| Note On Materials | RoHS-compliant |
| Safety Integrity Level (Sil) | Safety Integrity Level 3 |
| Measured Variable | Position |
| Measuring Principle | Mechanical/electrical |
| Sensing Range | 90 deg |
| Ambient Temperature | -20, 70 °C |
| Switching Output | Contacting (gold) |
| Switching Element Function | Toggle switch, single-pole |
| Max. Switching Output Voltage Dc | 30 V |
| Max. Output Current Dc | 100 mA |
| Max. Switching Capacity Dc | 3 W |
| Operational Voltage Range Dc | 30 V |
| Microswitch Type | Omron SS-01 |
| Electrical Connection | Screw terminal |
| Electrical Connection 1, Connection Type | Terminal strip |
| Electrical Connection 1, Cable Outlet | Straight |
| Electrical Connection 1, Design | Angular |
| Electrical Connection 1, Connector System | Screw terminal |
| Electrical Connection 1, Number Of Connections/Cores | 10 |
| Connectable Nominal Cross Section Conductor | 0.25, 2.5 mm² |
| Cable Fitting | M20x1.5 |
| Dimensions (W X L X H) | 119 mm x 85 mm x 89 mm |
| Type Of Mounting | On flange according to ISO 5211 |
| Mounting Position | optional |
| Product Weight | 360 g |
| Housing Colour | Black |
| Material Housing | PA |
| Material Seals | NBR |
| Material Shaft | PA |
| Material Screws | Stainless steel |
| Material Snap Ring | High-alloy stainless steel |
| Protective Cap Material | PC |
| Switching Status Indication | Optical |
| Position Indicator | Yellow/red |
| Setting Range Of Angular Detection | 90 deg |
| Storage Temperature | -20, 50 °C |
| Degree Of Protection | IP66, IP67 |
| Shock Resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Vibration Resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Corrosion Resistance Class Crc | 3 – high corrosion stress |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Pollution Degree | 3 |
