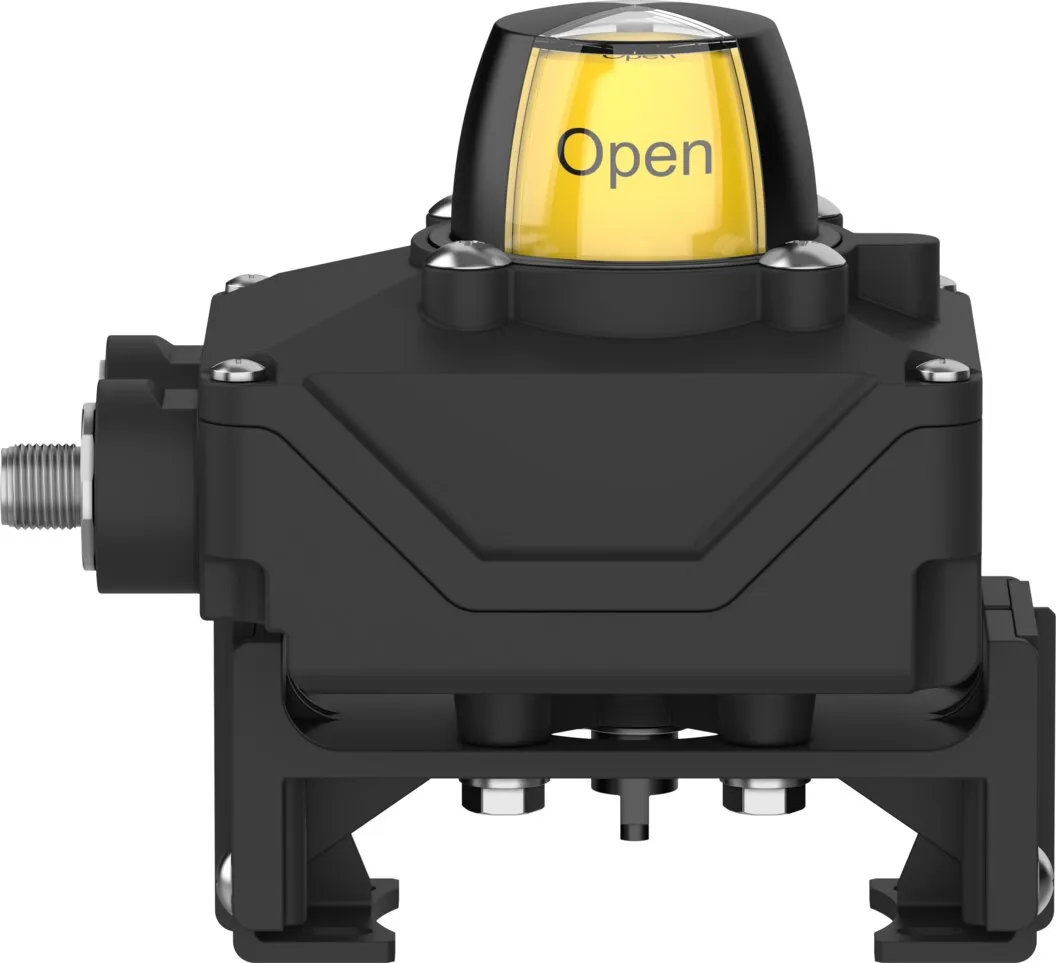

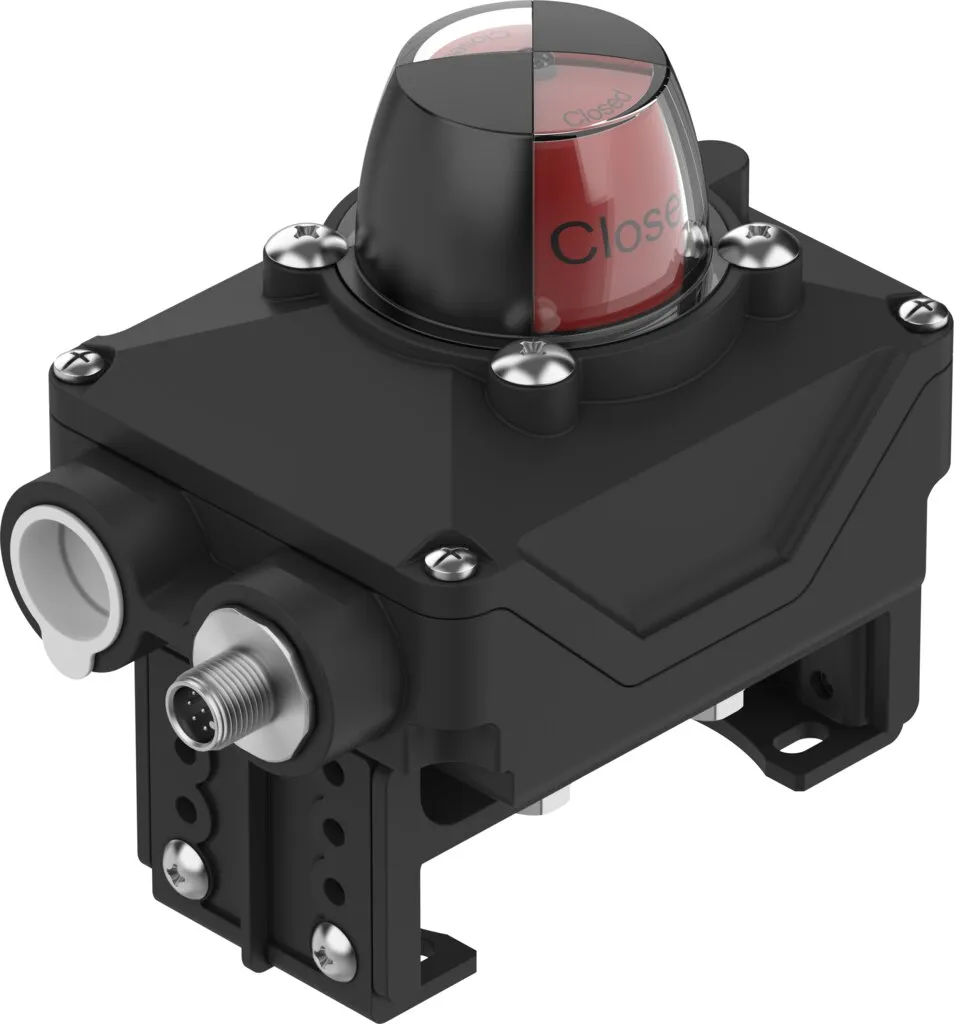

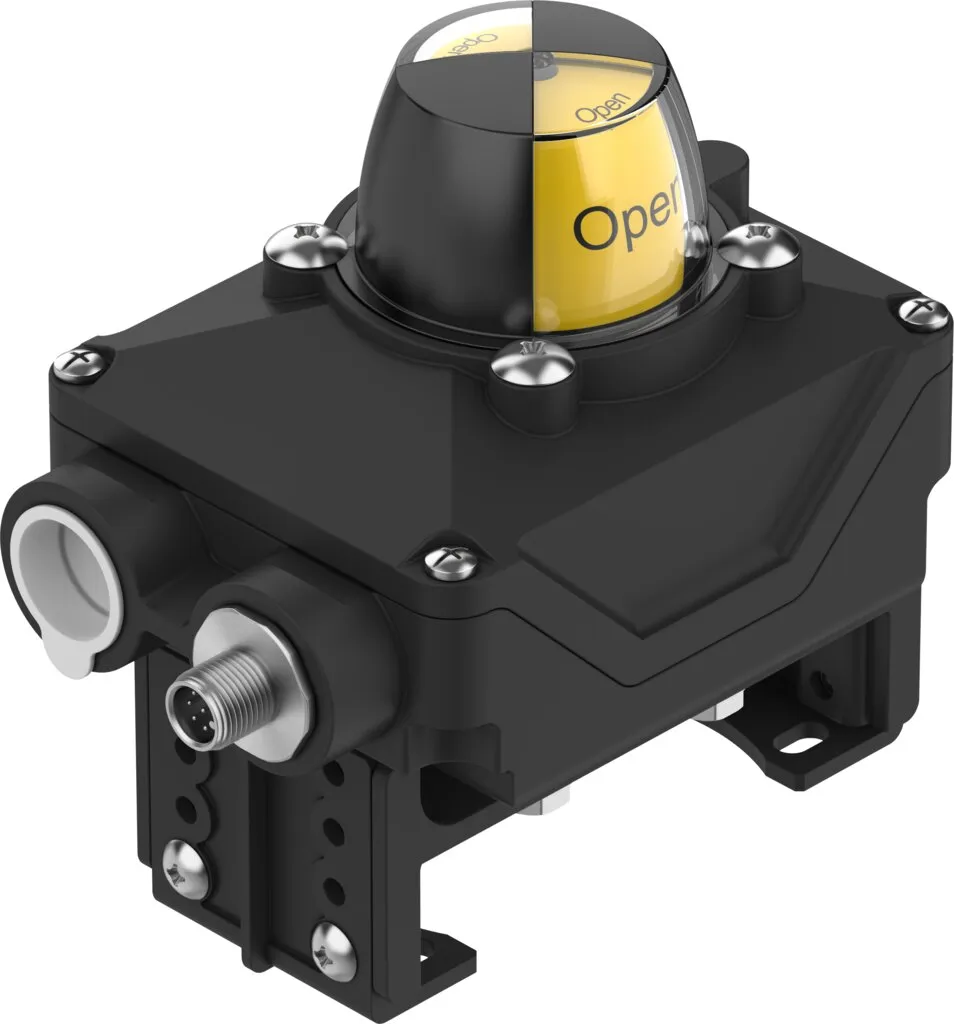

Festo SRBK-CA4-YR90-N-1-P-M12
Sturdy polymer housing with UV resistance , Different switch variants – mechanical, inductive and reed switches , Multifunctional mounting adapter for adaptations on the ISO3845 interface , Variants w…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Sturdy polymer housing with UV resistance , Different switch variants – mechanical, inductive and reed switches , Multifunctional mounting adapter for adaptations on the ISO3845 interface , Variants with M12 plug connection for easy installation (plug&play)
Specification
| Ce Mark (See Declaration Of Conformity) |
To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive |
|---|---|
| Ukca Marking (See Declaration Of Conformity) |
To UK instructions for EMC, To UK RoHS instructions, To UK regulations for electrical equipment |
| Certificate Issuing Authority |
Eurocert. SIL202587141 |
| Note On Materials |
RoHS-compliant |
| Safety Integrity Level (Sil) |
Safety Integrity Level 3 |
| Measured Variable |
Position |
| Measuring Principle |
Inductive |
| Sensing Range |
90 deg |
| Ambient Temperature |
-20, 70 °C |
| Switching Output |
PNP |
| Switching Element Function |
N/O contact |
| Max. Output Current Dc |
100 mA |
| Voltage Drop |
3 V |
| Off State Current |
0.5 mA |
| Short Circuit Current Rating |
Pulsed |
| Operational Voltage Range Dc |
10, 30 V |
| No Load Supply Current |
15 mA |
| Reverse Polarity Protection |
For all electrical connections |
| Microswitch Type |
P&F NBB2-V3-E2 |
| Electrical Connection |
M12x1 |
| Electrical Connection 1, Connection Type |
Plugs |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Design |
Round |
| Electrical Connection 1, Connector System |
M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 1, Number Of Connections/Cores |
8 |
| Electrical Connection 1, Connection Pattern |
00992264 |
| Cable Fitting |
M20x1.5 |
| Dimensions (W X L X H) |
143 mm x 85 mm x 128 mm, 143 mm x 85 mm x 138 mm, 143 mm x 85 mm x 158 mm, 159 mm x 85 mm x 128 mm, 159 mm x 85 mm x 138 mm |
| Connection Point For Positioner And Position Sensor Conforms To Standard |
VDI/VDE 3845 size AA 1, VDI/VDE 3845 size AA 2, VDI/VDE 3845 size AA 3 |
| Mounting Position |
optional |
| Product Weight |
500 g |
| Housing Colour |
Black |
| Material Housing |
PA |
| Material Seals |
NBR |
| Material Shaft |
PA |
| Material Screws |
Stainless steel |
| Material Mounting Bracket |
PA |
| Material Snap Ring |
High-alloy stainless steel |
| Protective Cap Material |
PC |
| Switching Status Indication |
Optical |
| Position Indicator |
Yellow/red |
| Setting Range Of Angular Detection |
90 deg |
| Storage Temperature |
-20, 50 °C |
| Degree Of Protection |
IP66, IP67 |
| Shock Resistance |
Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Vibration Resistance |
Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Corrosion Resistance Class Crc |
3 – high corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Pollution Degree |
3 |
