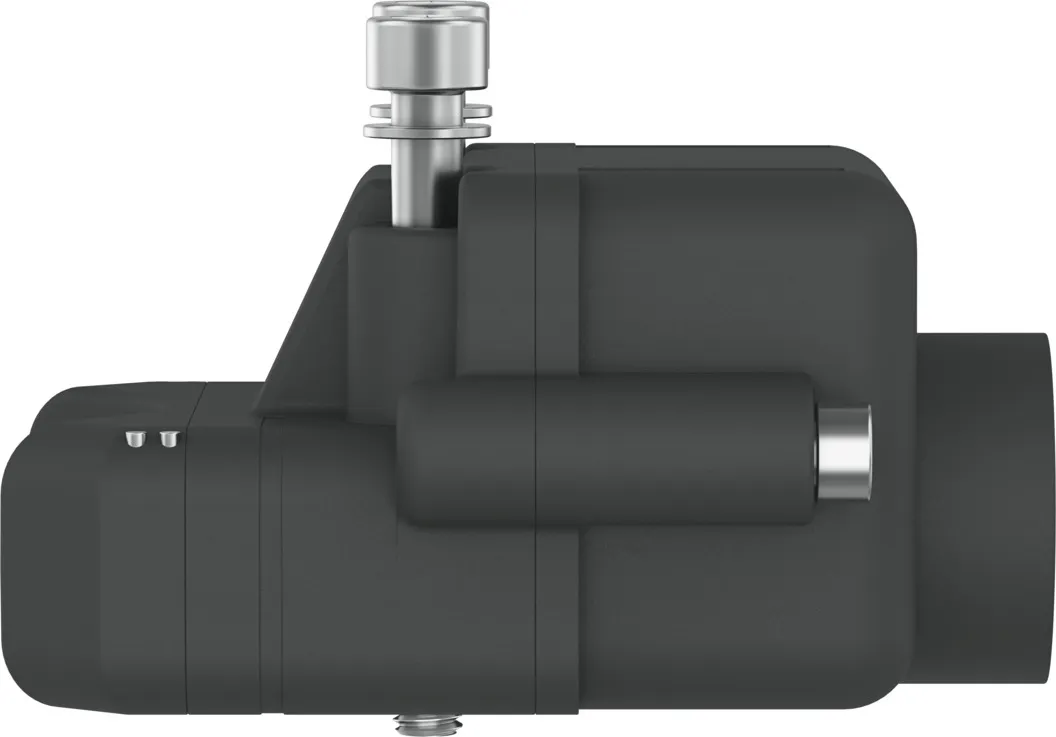

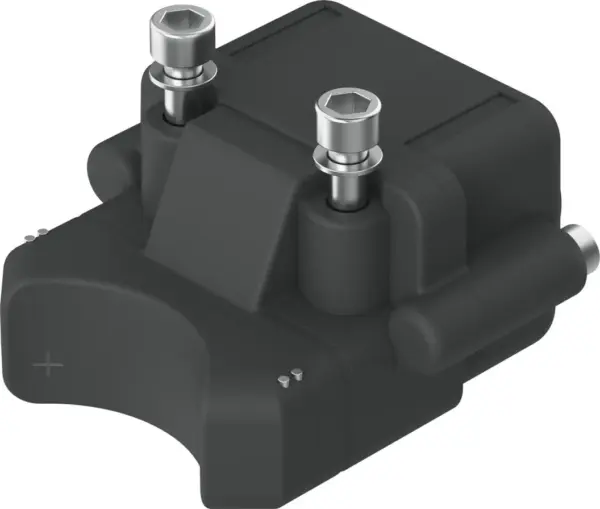

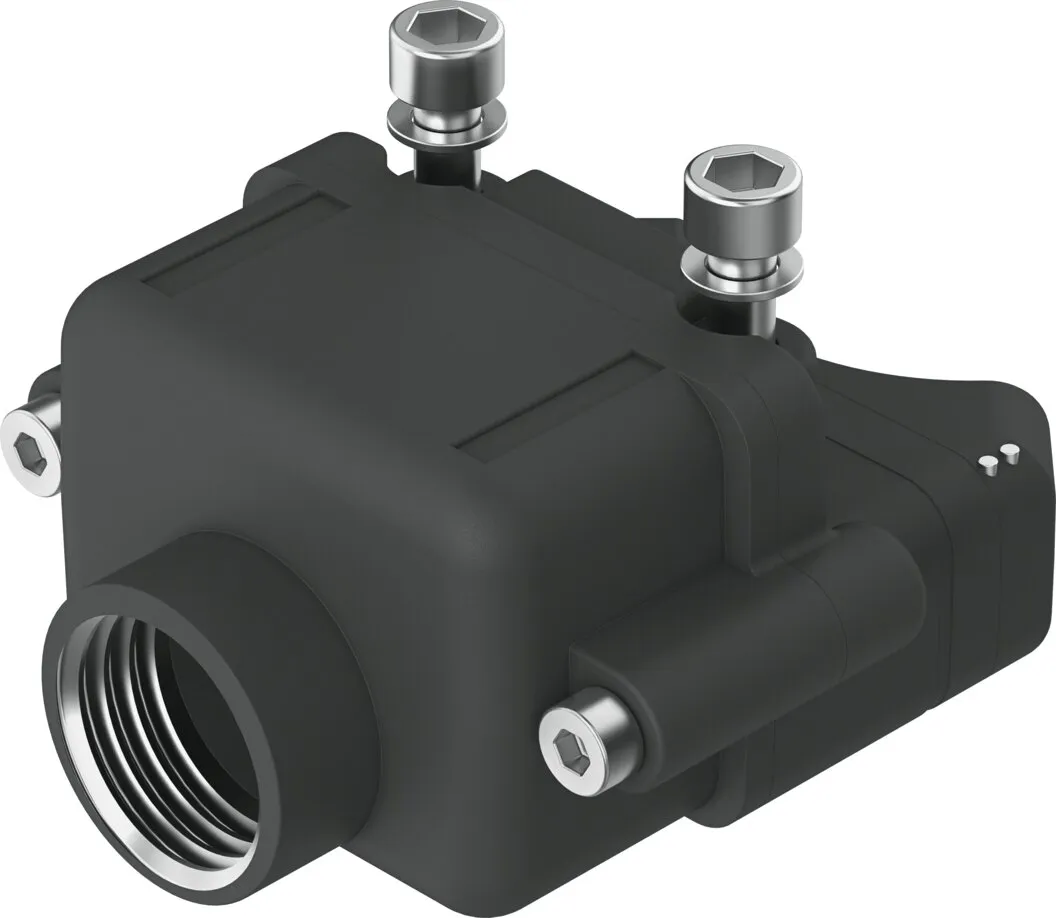

Festo SRBI-C2-N-1-P-C2
Compact housing with M12 plug connection , Direct mounting on quarter turn actuators to VDI/VDE 3845 , For quarter turn actuators for process automation with position indicators , LED status indicator…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Compact housing with M12 plug connection , Direct mounting on quarter turn actuators to VDI/VDE 3845 , For quarter turn actuators for process automation with position indicators , LED status indicator for switching status and supply voltage
Specification
| Design |
Angular |
|---|---|
| Based On Standard |
EN 60947-5-2, VDI/VDE 3845 |
| Approval |
RCM trademark, c UL us – Recognized (OL) |
| Ce Mark (See Declaration Of Conformity) |
To EU EMC Directive, In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK instructions for EMC, To UK RoHS instructions |
| Kc Mark |
KC-EMV |
| Certificate Issuing Authority |
UL E232949 |
| Note On Materials |
RoHS-compliant |
| Measuring Principle |
Inductive |
| Ambient Temperature |
-25, 70 °C |
| Switching Output |
PNP |
| Switching Element Function |
N/O contact |
| Max. Switching Frequency |
1000 Hz |
| Max. Output Current Dc |
200 mA |
| Voltage Drop |
2.5 V |
| Off State Current |
0.5 mA |
| Short Circuit Current Rating |
Pulsed |
| Operational Voltage Range Dc |
10, 30 V |
| No Load Supply Current |
22.5 mA |
| Reverse Polarity Protection |
For all electrical connections |
| Electrical Connection Input |
Spring-loaded terminal |
| Electrical Connection Output |
Spring-loaded terminal |
| Cable Diameter |
1.5, 2.5 mm |
| Connectable Nominal Cross Section Conductor |
0.2, 2.5 mm² |
| Cable Fitting |
M20x1.5 |
| Mounting Position |
optional |
| Product Weight |
98 g |
| Material Housing |
PBT |
| Material Screws |
High-alloy stainless steel |
| Ready Status Indication |
Green LED |
| Switching Status Indication |
Yellow LED |
| Status Indication |
LED yellow = valve switching status, LED green = power supply indicator |
| Storage Temperature |
-40, 85 °C |
| Degree Of Protection |
IP67 |
| Shock Resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Vibration Resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Pollution Degree |
3 |
