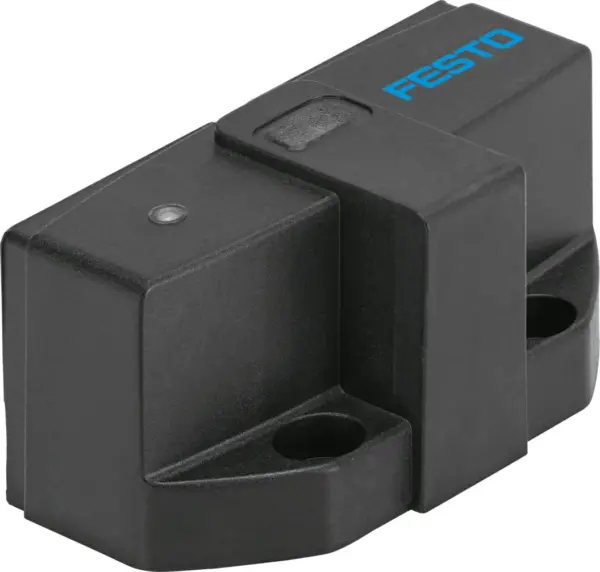

Festo SRBG-C1-N-20N-ZC-M12-EX5
Compact housing with M12 plug connection , Direct mounting on quarter turn actuators to VDI/VDE 3845 , For quarter turn actuators for process automation with position indicators , AS-Interface version…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Compact housing with M12 plug connection , Direct mounting on quarter turn actuators to VDI/VDE 3845 , For quarter turn actuators for process automation with position indicators , AS-Interface version with extended addressing options , LED status indicator for switching status, supply voltage and solenoid valve output , With safety functions , Variants to EU Explosion Protection Directive (ATEX)
Specification
| Design | Angular |
|---|---|
| Based On Standard | EN 60947-5-6, VDI/VDE 3845 |
| Approval | RCM trademark, c UL us (OL) |
| Ce Mark (See Declaration Of Conformity) | To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) | To UK instructions for EMC, To UK EX instructions, To UK RoHS instructions |
| Explosion Protection | Zone 0 (ATEX), Zone 0 (CN), Zone 0 (UKEX), Zone 1 (ATEX), Zone 2 (ATEX), Zone 20 (ATEX), Zone 20 (CN), Zone 20 (UKEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Atex Category Gas | II 1G |
| Explosion Ignition Protection Type For Gas | Ex ia IIC T6…T1 Ga |
| Atex Category Dust | II 1D |
| Explosion Ignition Protection Type For Dust | Ex ia IIIC T200 135°C Da |
| Explosion Protection Certification Outside The Eu | EPL Da (CN), EPL Da (GB), EPL Ga (CN), EPL Ga (GB) |
| Explosion Ambient Temperature | See ATEX certificate, See IECEx certificate |
| Effective Internal Inductivity Li | 100 µH |
| Effective Internal Capacitance Ci | 100 nF |
| Max. Intrinsically Safe Circuit Input Parameter | See IECEx certificate, See ATEX certificate |
| Certificate Issuing Authority | 2020322315003530, CML22UKEX2263X |
| Note On Materials | RoHS-compliant |
| Safety Integrity Level (Sil) | SIL 2 |
| Measuring Principle | Inductive |
| Ambient Temperature | -25, 100 °C |
| Switching Output | NAMUR |
| Switching Element Function | N/C contact |
| Max. Switching Frequency | 3000 Hz |
| Max. Output Current Dc | 3 mA |
| Short Circuit Current Rating | yes |
| Operational Voltage Range Dc | 8.2 V |
| Reverse Polarity Protection | For all electrical connections |
| Electrical Connection Input | M12x1 |
| Electrical Connection 1, Connection Type | Plugs |
| Electrical Connection 1, Cable Outlet | Straight |
| Electrical Connection 1, Design | Round |
| Electrical Connection 1, Connector System | M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 1, Number Of Connections/Cores | 4 |
| Electrical Connection 1, Connection Pattern | 00995600 |
| Type Of Mounting | Threaded |
| Mounting Position | optional |
| Product Weight | 70 g |
| Material Housing | PBT |
| Material Screws | High-alloy stainless steel |
| Material Fitting | Nickel-plated, die-cast zinc |
| Switching Status Indication | Yellow LED |
| Storage Temperature | -40, 100 °C |
| Degree Of Protection | IP67 |
| Shock Resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Vibration Resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Pollution Degree | 3 |
