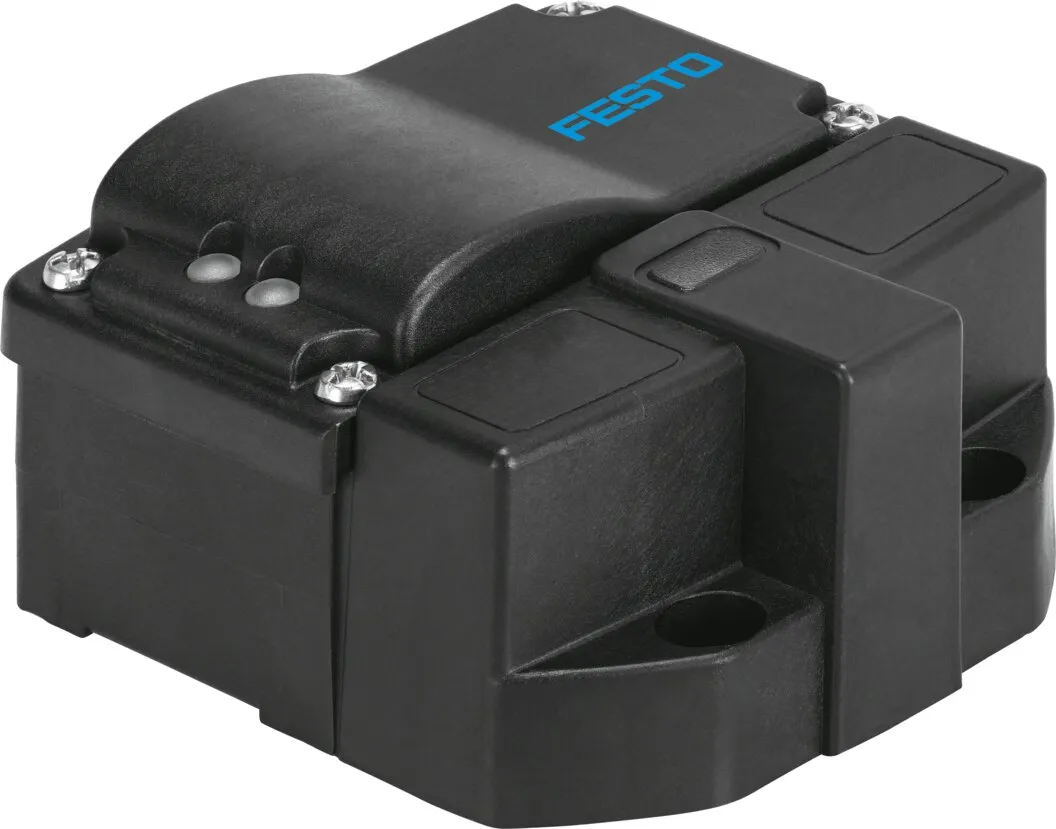

Festo SRBG-C1-N-1-ZU-C2-C2
Compact housing with M12 plug connection , Direct mounting on quarter turn actuators to VDI/VDE 3845 , For quarter turn actuators for process automation with position indicators , AS-Interface version…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Compact housing with M12 plug connection , Direct mounting on quarter turn actuators to VDI/VDE 3845 , For quarter turn actuators for process automation with position indicators , AS-Interface version with extended addressing options , LED status indicator for switching status, supply voltage and solenoid valve output , With safety functions , Variants to EU Explosion Protection Directive (ATEX)
Specification
| Design |
Angular |
|---|---|
| Based On Standard |
EN 60947-5-2, VDI/VDE 3845 |
| Approval |
CCC, RCM trademark, c UL us (OL) |
| Ce Mark (See Declaration Of Conformity) |
To EU EMC Directive, In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK instructions for EMC, To UK RoHS instructions |
| Kc Mark |
KC-EMV |
| Certificate Issuing Authority |
2024010305706390 |
| Note On Materials |
RoHS-compliant |
| Measuring Principle |
Inductive |
| Ambient Temperature |
-25, 70 °C |
| Switching Output |
Non-contacting, 2-wire |
| Switching Element Function |
N/O contact |
| Max. Switching Frequency |
500 Hz |
| Max. Output Current Dc |
100 mA |
| Voltage Drop |
6 V |
| Min. Load Current |
4 mA |
| Off State Current |
1 mA |
| Operational Voltage Range Dc |
6, 60 V |
| Reverse Polarity Protection |
For all electrical connections |
| Electrical Connection 1, Connection Type |
Terminal strip |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Design |
Round |
| Electrical Connection 1, Connector System |
Spring-loaded terminal |
| Electrical Connection 1, Number Of Connections/Cores |
10 |
| Electrical Connection 1, Connection Pattern |
00995595 |
| Connectable Nominal Cross Section Conductor |
0.2, 2.5 mm² |
| Cable Fitting |
M20x1.5 |
| Type Of Mounting |
Threaded |
| Mounting Position |
optional |
| Product Weight |
170 g |
| Material Housing |
PBT |
| Material Screws |
High-alloy stainless steel |
| Switching Status Indication |
Yellow LED |
| Status Indication |
LED yellow = valve switching status |
| Storage Temperature |
-25, 70 °C |
| Degree Of Protection |
IP67 |
| Shock Resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Vibration Resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Pollution Degree |
3 |
